Underwater Drones

M2 Pro Max Underwater Drone

by Chasing

Engineered for professional underwater operations, this industrial-grade ROV delivers unprecedented maneuverability with eight vectored thrusters enabling true 360-degree omnidirectional movement. The innovative quick-mount system allows tool-free installation of over 20 different accessories, while the integrated docking station supports simultaneous connection of up to five specialized tools.

Powered by second-generation C-MOTOR 2.0 thrusters with 30% more power, the system achieves speeds up to 3 knots and depths of 200 meters. The 8000-lumen external LED array provides optimal 150-degree illumination, while the 4K camera with EIS stabilization and SONY CMOS sensor ensures professional-grade underwater imaging.

Max Depth: 200m Horizontal Range: 400m Speed: 3 knots Camera: 4K with 12MP Photos Lighting: 8000 lumens

Capabilities

▶

Perform 360-degree omnidirectional movement underwater

Record 4K video and 12MP photos

Mount up to five accessories simultaneously

Illuminate underwater environments with 8000 lumens

Navigate to 200m depths

Operate within 400m horizontal radius

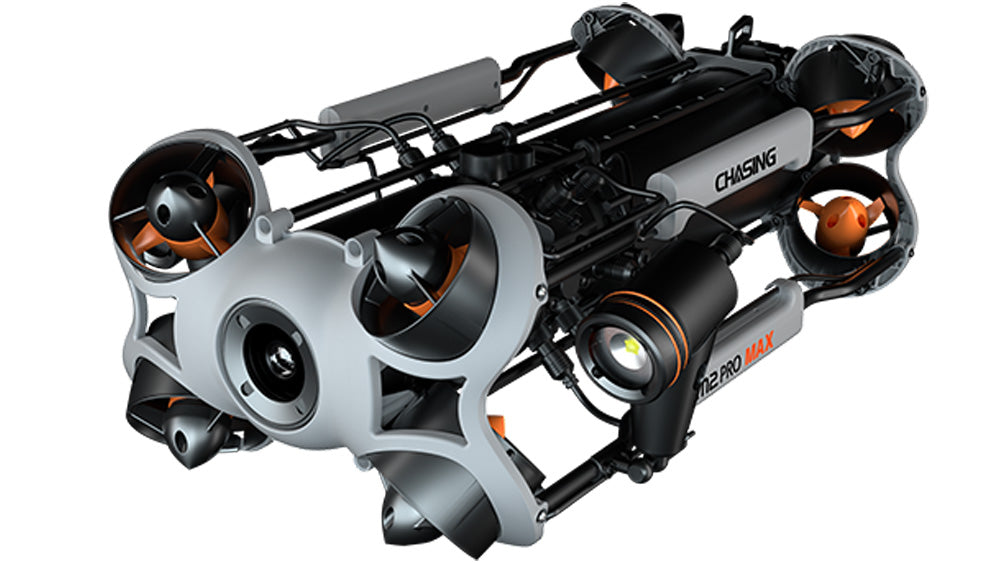

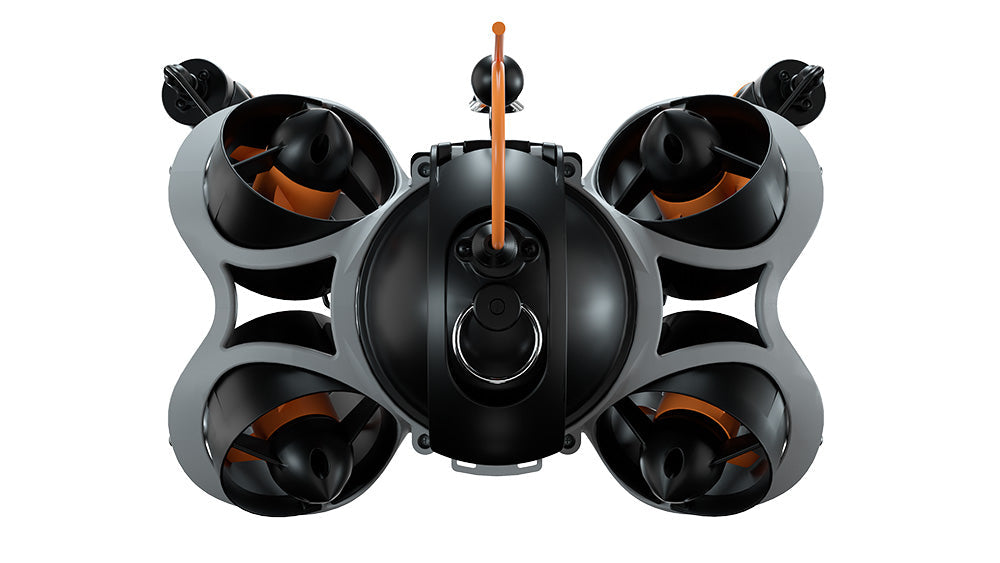

Front view

Specifications

▶

Performance Specifications ▶

Maximum Diving Depth 200 meters

Maximum Activity Radius 400 meters

Maximum Speed 3 knots

Thruster Configuration 8 vectored thrusters

Camera System ▶

Video Resolution 4K

Photo Resolution 12 megapixel

Image Sensor 1/2.3 SONY CMOS

Image Stabilization EIS anti-video-shake

Camera / imaging (stated) 4K video; 12 MP photo; SONY CMOS

Lighting ▶

External Light Output 8000 lumens

Beam Angle 150 degrees

Brightness Control Stepless 0-100%

Storage ▶

Default Storage 128GB SD card

Maximum Storage Support 512GB

Technical reference

Technical Details

▶

Operating Mode Tethered system

Accessory Ports 5 integrated ports

Quick Mount System Tool-free assembly

Power Supply Option Shore-based power system (C-SPSS) compatible

Power Output 1500W with C-SPSS

Product DocumentationSKU UDCHAS001AM2 Pro Max Underwater Drone by ChasingCategory Underwater Drone (ROV)

Model M2 Pro Max

Propulsion 8 vectored thrusters; 360° movement stated

Brand Chasing

What's Included / Not Included

▶

Included:

• Documentation not provided for this item.

NOT Included:

• Additional batteries (700Wh battery available separately)
• Specialized accessories (sonars, grabber arms, water samplers)
• USBL positioning system

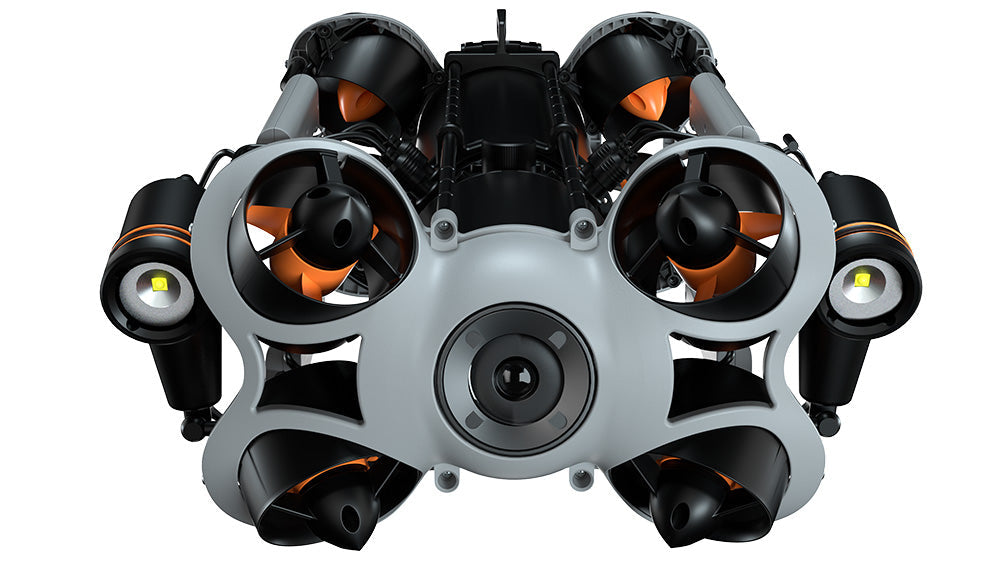

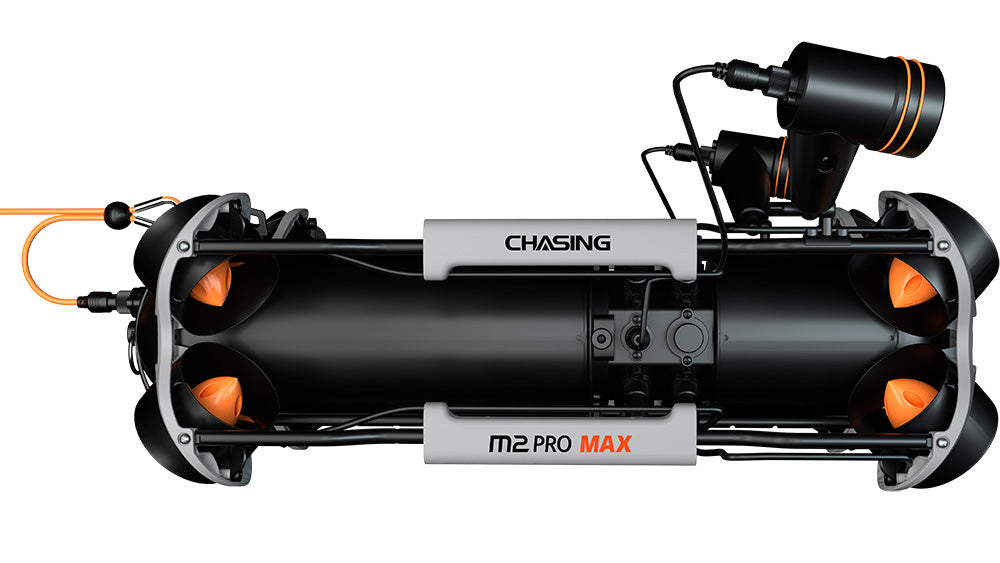

Front view

Compatibility

▶

Compatible With:

• CHASING sonars
• CHASING USBL positioning system
• CHASING Water Sampler
• Third-party accessories via mounting system

Compatibility and ecosystem

Maintenance & Care

▶

Recommended Schedule: After each use

• Rinse with fresh water after saltwater use
• Check propeller condition
• Inspect tether cable integrity
• Verify seal condition before deployment

Frequently Asked Questions

▶

What is the maximum number of accessories that can be mounted simultaneously?

The M2 Pro Max features five integrated ports, allowing up to five accessories to be mounted and operated simultaneously. This is enabled by the built-in docking station design.

How long can the ROV operate continuously?

With the optional shore-based power supply system (C-SPSS), the ROV can operate 24/7 at full power. The C-SPSS provides 1500W of continuous power through a battery compartment design.

What storage options are available?

The ROV comes with a 128GB SD card by default, but supports memory cards up to 512GB. The SD card is removable for easy data transfer.

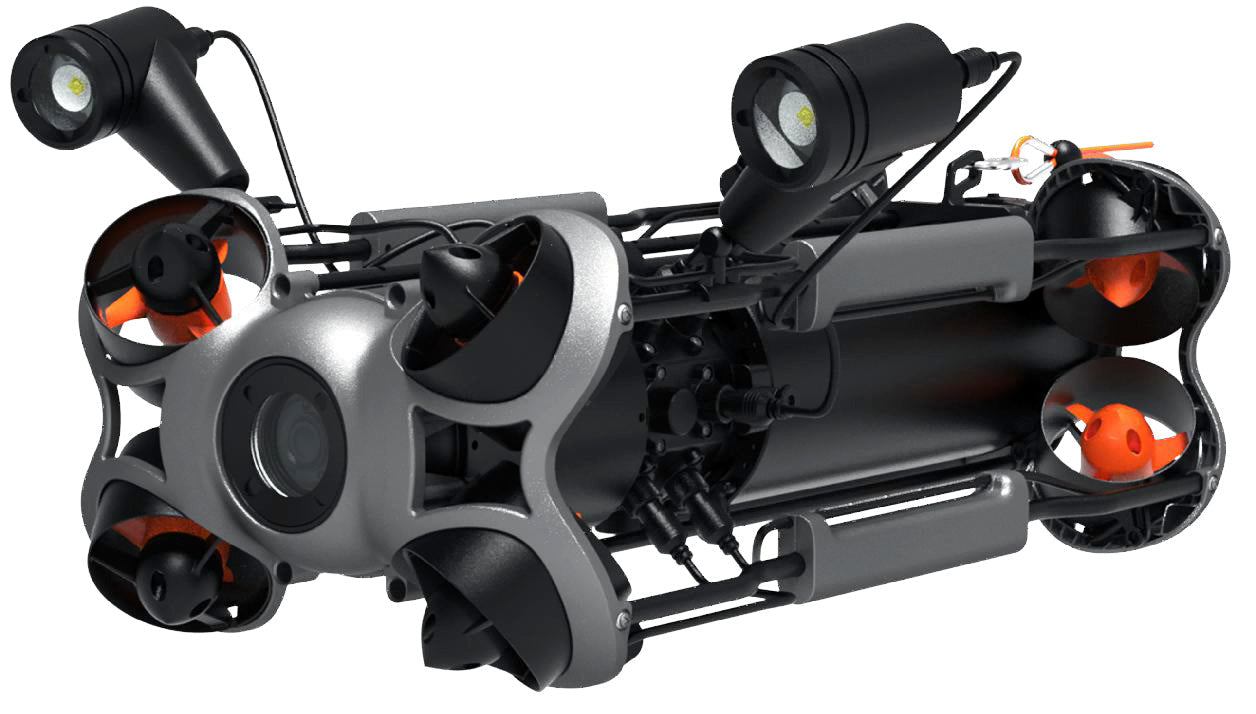

Front view

Resources & Downloads

▶

Official documentation and manuals are available upon request.

Product Identifiers

▶

SKU: UDCHAS001A

Brand: Chasing

Price: 7005.14

Product Name: M2 Pro Max Underwater Drone

Category: Underwater Drone

Product Source: Link
