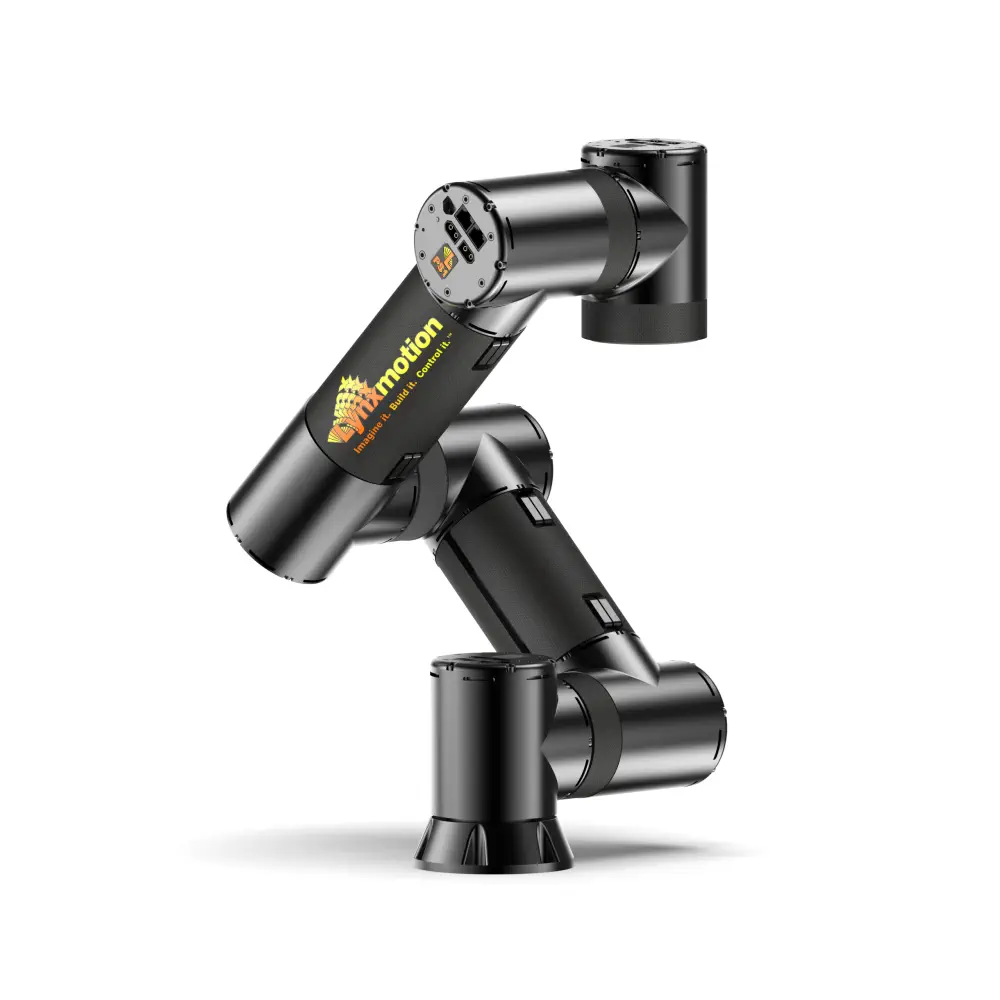

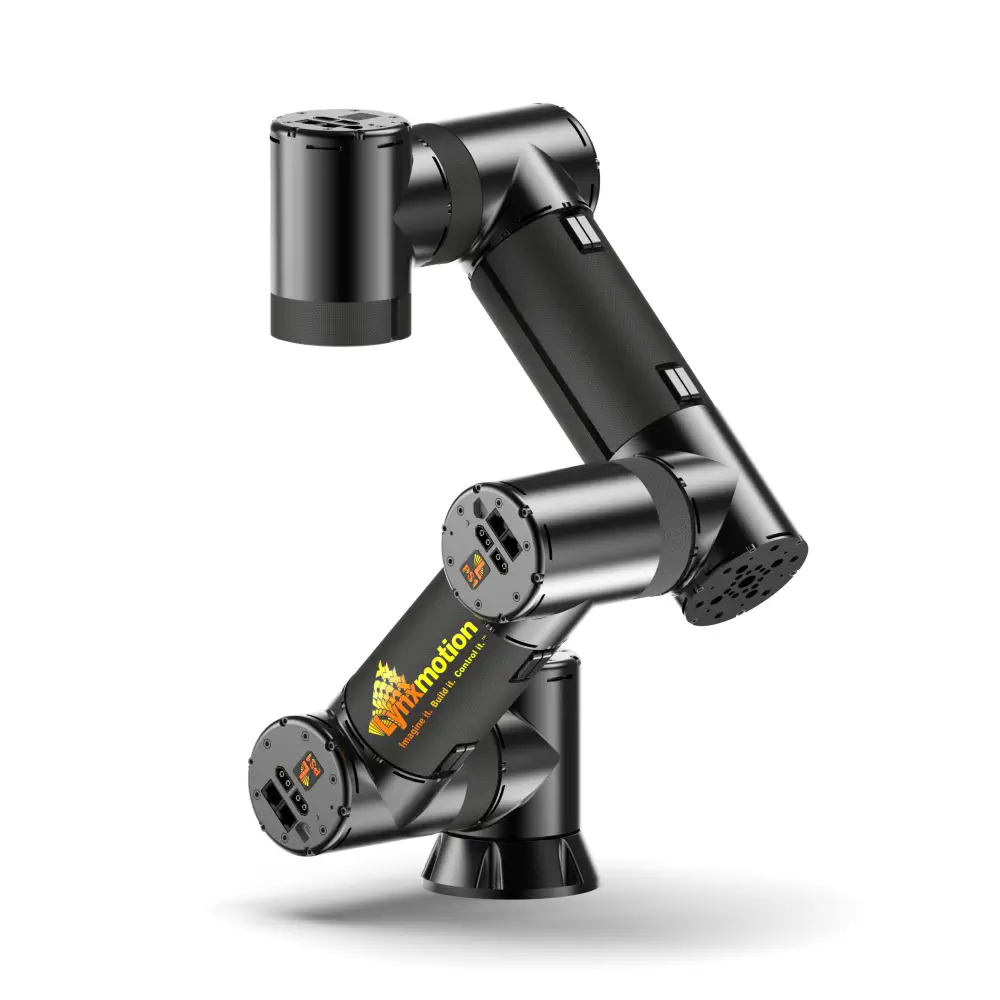

Lynxmotion SES PRO 550mm 5DOF Modular Robotic Arm (Assembled)
Engineered for precision and versatility, this modular robotic arm system delivers professional-grade performance through innovative strain wave gearing and smart servo technology. The modular design allows for complete reconfiguration, with the ability to add or remove degrees of freedom to match specific application requirements.
Delivering an impressive 2kg payload capacity at full extension with ±0.1mm positioning accuracy, the arm achieves a 550mm horizontal reach and 630mm vertical reach. The system incorporates five professional-grade smart servo actuators with integrated strain wave gearing, providing precise control through a human-readable communication protocol.
Capabilities
Honest Assessment
Strengths
- Fully modular and reconfigurable design
- High precision with ±0.1mm accuracy
- Human-readable communication protocol
- Professional-grade strain wave gearing
- Multiple gripper options available
Considerations
- Gripper sold separately
- No built-in collision detection
- External wiring requires careful management
See It in Action
Product Video
Specifications
Performance
Joint Specifications
Electrical
Communication
What's Included / Not Included
Included:
- 2x Lynxmotion Smart Servo PRO Lite (LSS-P-L1)
- 3x Lynxmotion Smart Servo PRO Standard (LSS-P-S1)
- 4x Lynxmotion SES-PRO Aluminum Clamp for 70mm CF Tubes
- 1x Lynxmotion SES-PRO 118mm x 70mm Carbon Fiber Tube
- 1x Lynxmotion SES-PRO 143mm x 70mm Carbon Fiber Tube
- 1x Lynxmotion SES-PRO Base for Lite or Standard LSS-P Actuators
- 1x Lynxmotion SES-PRO Arm Base Adaptation Plate
- 2x Lynxmotion Branded Neoprene Tube Covers
- 36V Power supply
- Cables (USB, CAT5, Power)
- Mounting hardware
NOT Included:
- Gripper (sold separately)
- Programming software (downloadable)
- End-effector tools
Compatibility
Compatible With:

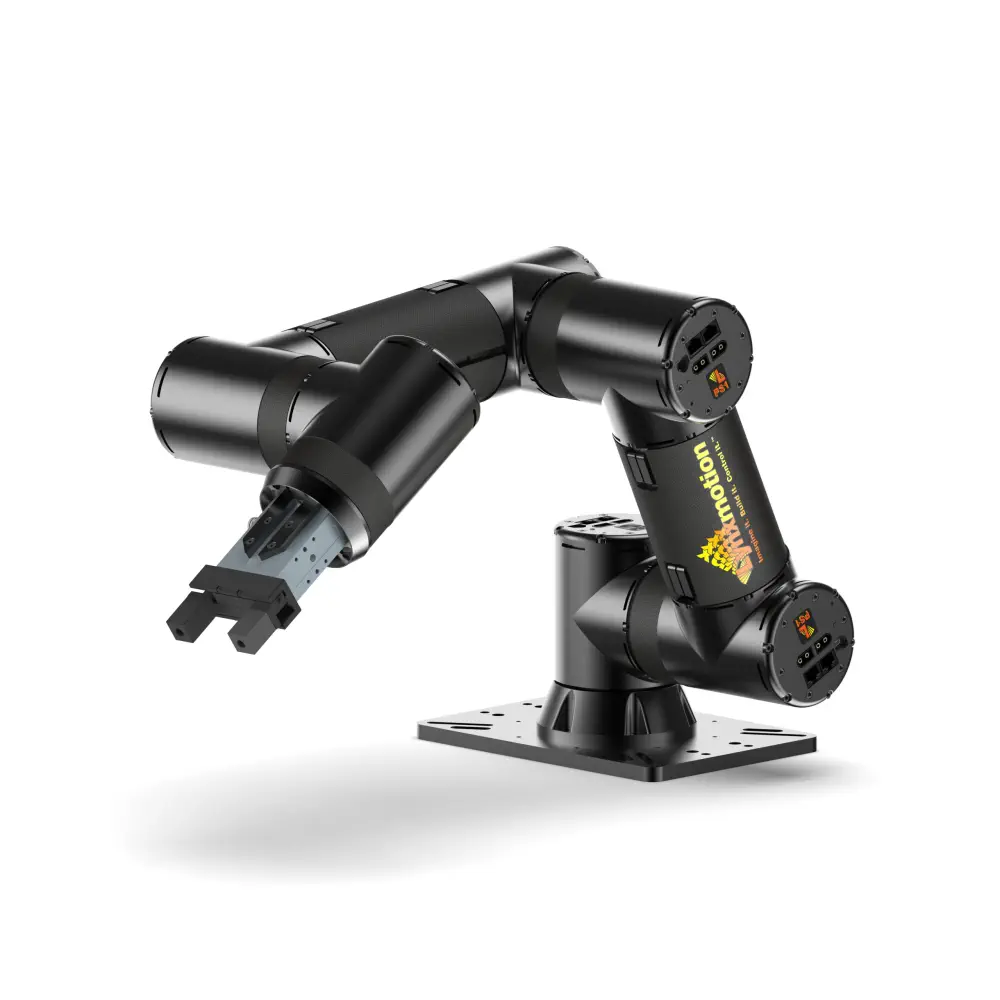

- DH Robotics PGE-50-40 Two Fingers Gripper
- DH Robotics CGE-10-10 Three Fingers Gripper
- ROS2 (support in development)
- USB 3.0 interfaces
- CAN bus systems
Safety & Compliance
Safety Information
- Includes emergency stop button
- Protection fuses integrated
- No evident pinch points in design
Maintenance & Care
- External wiring inspection
- Joint movement verification
- Communication cable integrity check
- Power connection inspection
Frequently Asked Questions
What power options are available?
How is the arm programmed?
Can additional degrees of freedom be added?
