Mysa LITE Wi-Fi Baseboard Thermostat Smart Climate Control

Mysa LITE Thermostat for Baseboards Smart Climate Control

Mysa LITE for Baseboard is a line-voltage smart thermostat designed to control compatible electric baseboard heaters and supported high-voltage electric heating systems. It replaces a traditional wall thermostat and provides on-device control plus app-based configuration, scheduling, and remote access when connected to a supported network.

Media

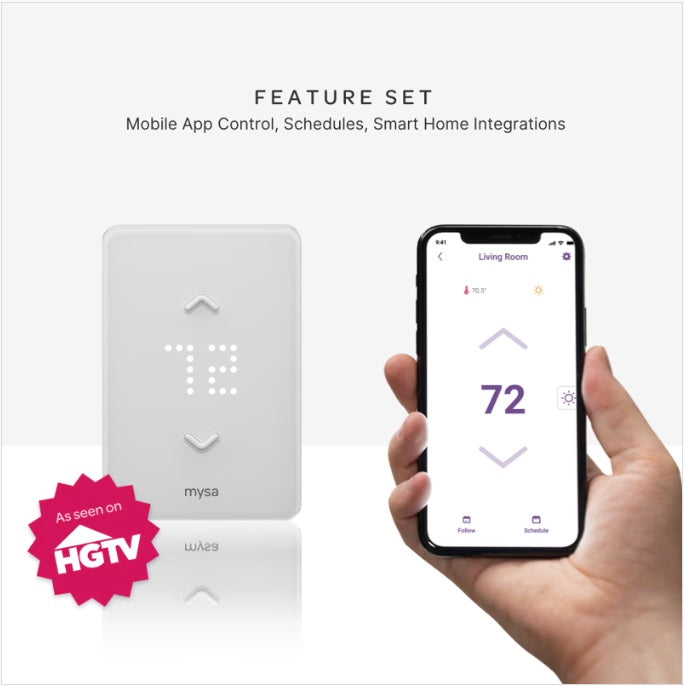

Product view with companion app interface example.

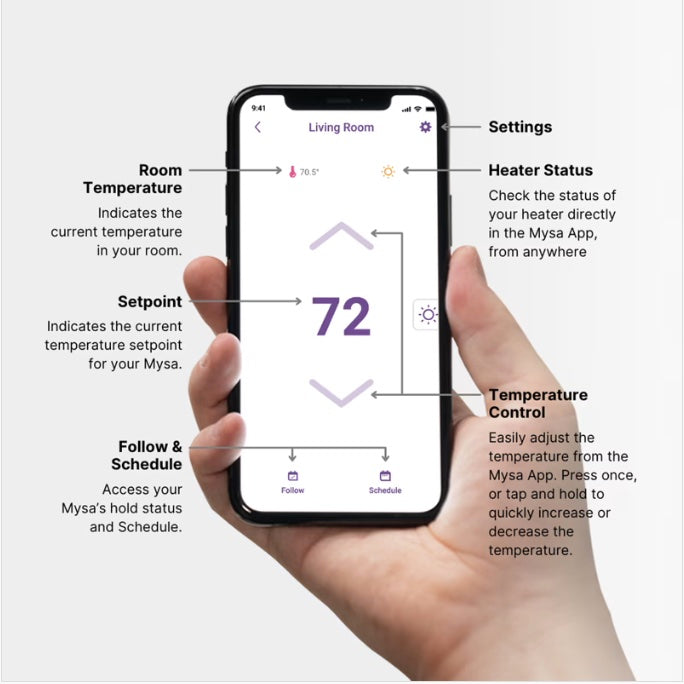

App screen example showing setpoint and device status indicators.

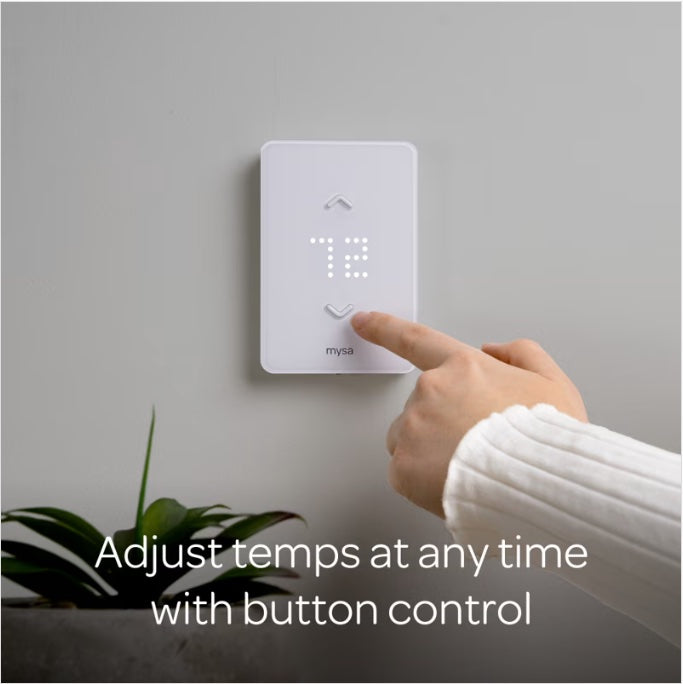

Example of on-device button control on the wall-mounted unit.

Example of remote access through a mobile device.

Example of thermostat placement in a residential space.

App-based interaction example (illustrative).

System Overview

System Type: Line-voltage smart thermostat

Primary Role: Controls compatible high-voltage electric heating circuits

Operating Environment: Indoor residential installations

Configuration: On-device buttons and a supported mobile app

Key Features

• Supports control of compatible electric baseboard and high-voltage electric heating systems
• Provides on-device up/down temperature controls with an LED display and physical buttons
• Allows scheduling through supported app-based configuration workflows
• Supports remote access through the Mysa app when connected to Wi-Fi
• Designed to fit a standard size gang box for typical thermostat replacement installations
• Supports Apple HomeKit, Amazon Alexa, and Google Home integrations
• Provides multi-home support and shared app access through supported account features
• Supports features such as geofencing and home/away temperature behavior (where enabled in the app)

Performance & Specifications

Mysa LITE measures room temperature and switches the connected heating circuit based on configured setpoints and schedules. Local adjustments can be made using the thermostat’s physical buttons. When connected to Wi-Fi, configuration and control are available through supported app workflows and supported smart home integrations.

For installation planning, Mysa LITE is intended for line-voltage (high-voltage) electric heating circuits and is not intended for low-voltage (24V) central HVAC controls.

Integration Snapshot

Intended for smart home climate control where electric, line-voltage heating is managed per zone or room. Integrations include Apple HomeKit, Amazon Alexa, and Google Home. Network connectivity uses 2.4 GHz Wi-Fi and can also use Bluetooth Low Energy (BLE) for supported setup and device interactions.

Deployment Considerations

This thermostat is designed for high-voltage electric heating circuits and requires compatible wiring. The manufacturer indicates it requires a Neutral or L2 wire (3–4 wires total). Install on a 20A breaker as specified by the manufacturer. Disconnect power at the breaker before installation, and follow applicable electrical codes and manufacturer instructions. Local regulations may require installation by a licensed electrician.

Compatibility

Designed to support:

• Electric baseboard
• Electric fan-forced (convector)
• Self-contained hydronic baseboard
• Radiant ceiling heating

Not compatible with:

• Low-voltage (24V) systems (central furnace, central air, heat pumps)
• Millivolt systems (gas fireplaces)
• Central hydronic systems (water/boiler based)
• Electric in-floor heating (requires a dedicated in-floor thermostat model)

Technical Specifications

• Product Category: Line-voltage smart thermostat for electric heating
• System Role: Switching control for compatible electric heating circuits
• Form Factor: Wall-mounted thermostat
• Display & Controls: LED display with physical buttons; up/down temperature controls; adjustable brightness
• Wireless Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n); Bluetooth Low Energy (BLE)
• Electrical Compatibility: Works with 120–240 VAC heating systems
• Maximum Load: 16 A; 1,900 W @ 120 VAC; 3,800 W @ 240 VAC
• Wiring Requirement: Requires a Neutral or L2 wire (3–4 wires total)
• Installation: Fits standard size gang box; install on 20A breaker
• Dimensions: Height 4.5 in (116 mm); Width 3.0 in (77 mm); Depth 0.8 in (20 mm)
• Temperature Sensor: ±0.5 ℉ (±0.3 ℃)
• Integrations: Apple HomeKit; Amazon Alexa; Google Home
• Standards (manufacturer-listed): UL 60730; CAN/CSA-E60730

What’s Included

Thermostat unit and in-box mounting/installation components as provided by the manufacturer.

Manuals & Documentation

Follow the manufacturer installation guidance for line-voltage wiring, breaker requirements, and system compatibility checks prior to installation.

Ideal Profiles

Homeowners with compatible electric baseboard or other supported high-voltage electric heating systems, and installers deploying line-voltage smart thermostats for room-by-room heating control.

Intended Use Cases

Electric baseboard heater control, schedule-based heating operation, and multi-zone residential electric heating where each zone uses a compatible line-voltage circuit.

FAQ

Is Mysa LITE compatible with low-voltage (24V) HVAC systems?
No. It is designed for compatible line-voltage (120–240 VAC) electric heating circuits.

What wiring is required for installation?
The manufacturer indicates a Neutral or L2 wire is required (3–4 wires total), and the device is intended to fit a standard size gang box.

Which smart home platforms are supported?
The manufacturer lists support for Apple HomeKit, Amazon Alexa, and Google Home integrations.

Safety & Regulatory Notice

This product is intended for line-voltage electrical environments. Disconnect power at the breaker before installation or servicing. Installation must follow manufacturer instructions and comply with applicable US electrical and building codes. If you are not qualified to work with high-voltage wiring, use a licensed electrician.

Shipping & Returns

View shipping details
View return policy

Disclaimers

This description is provided for documentation and integration reference purposes only. Confirm heater type, wiring configuration, and installation requirements before purchase and installation. Compatibility depends on the specific heating system and installed wiring conditions.
