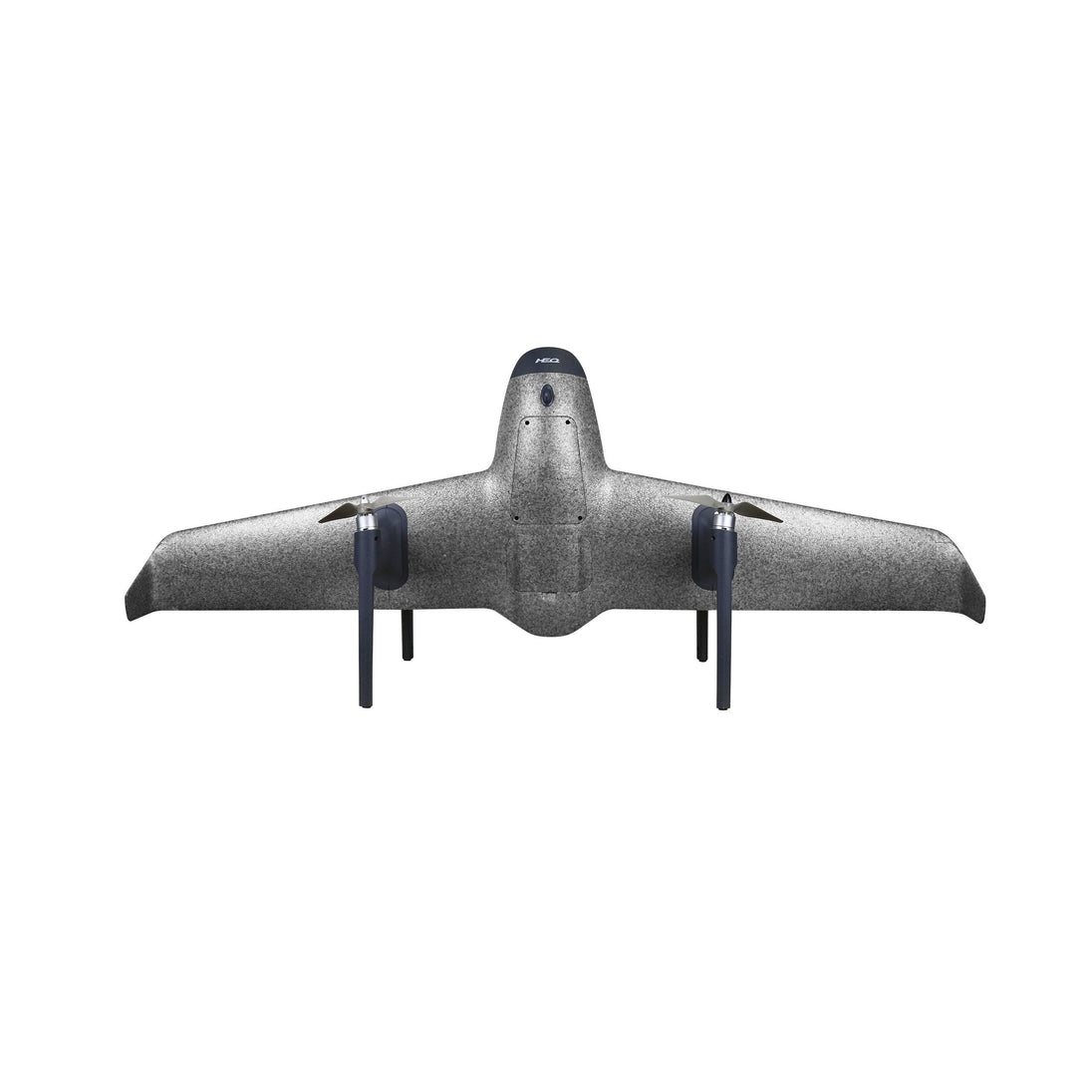

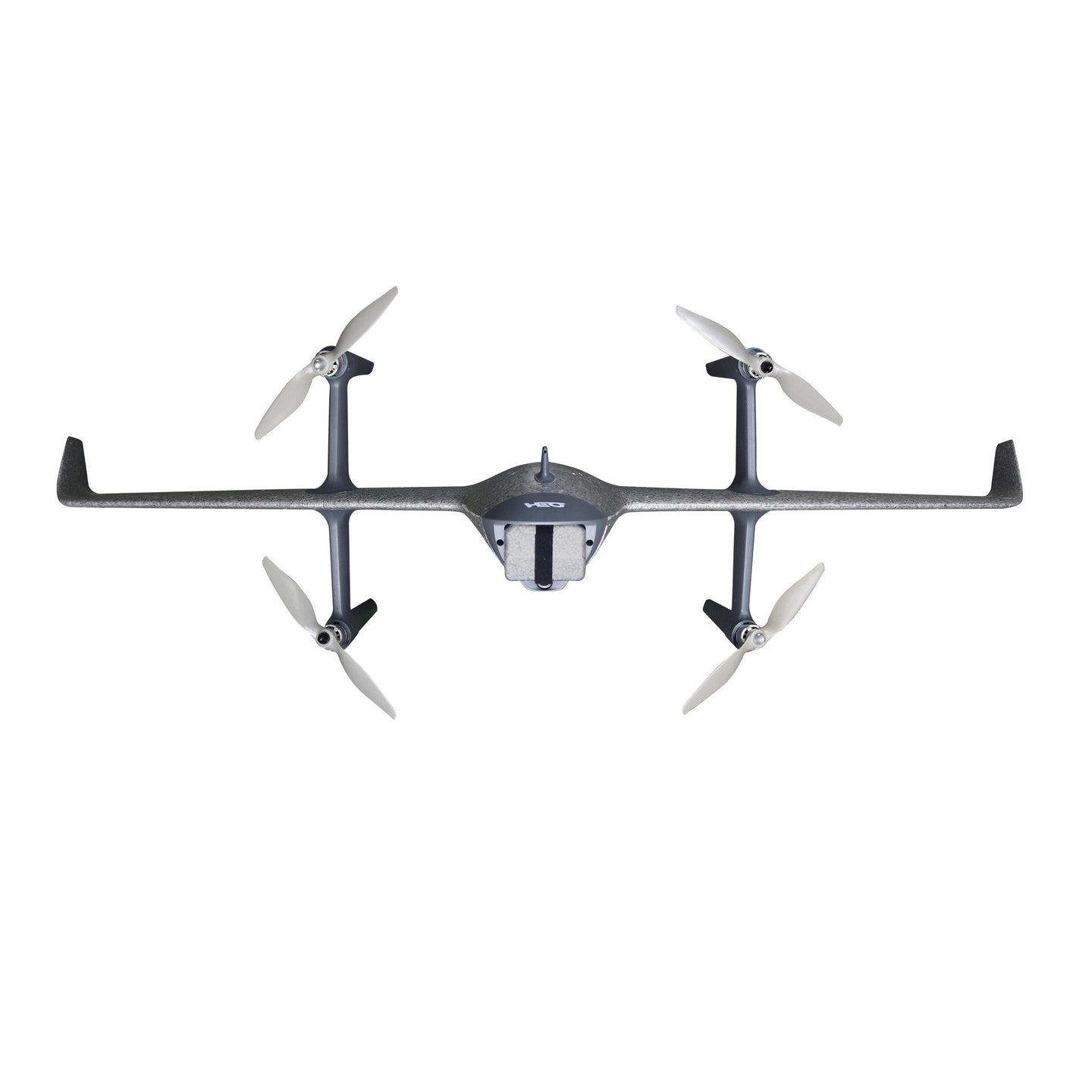

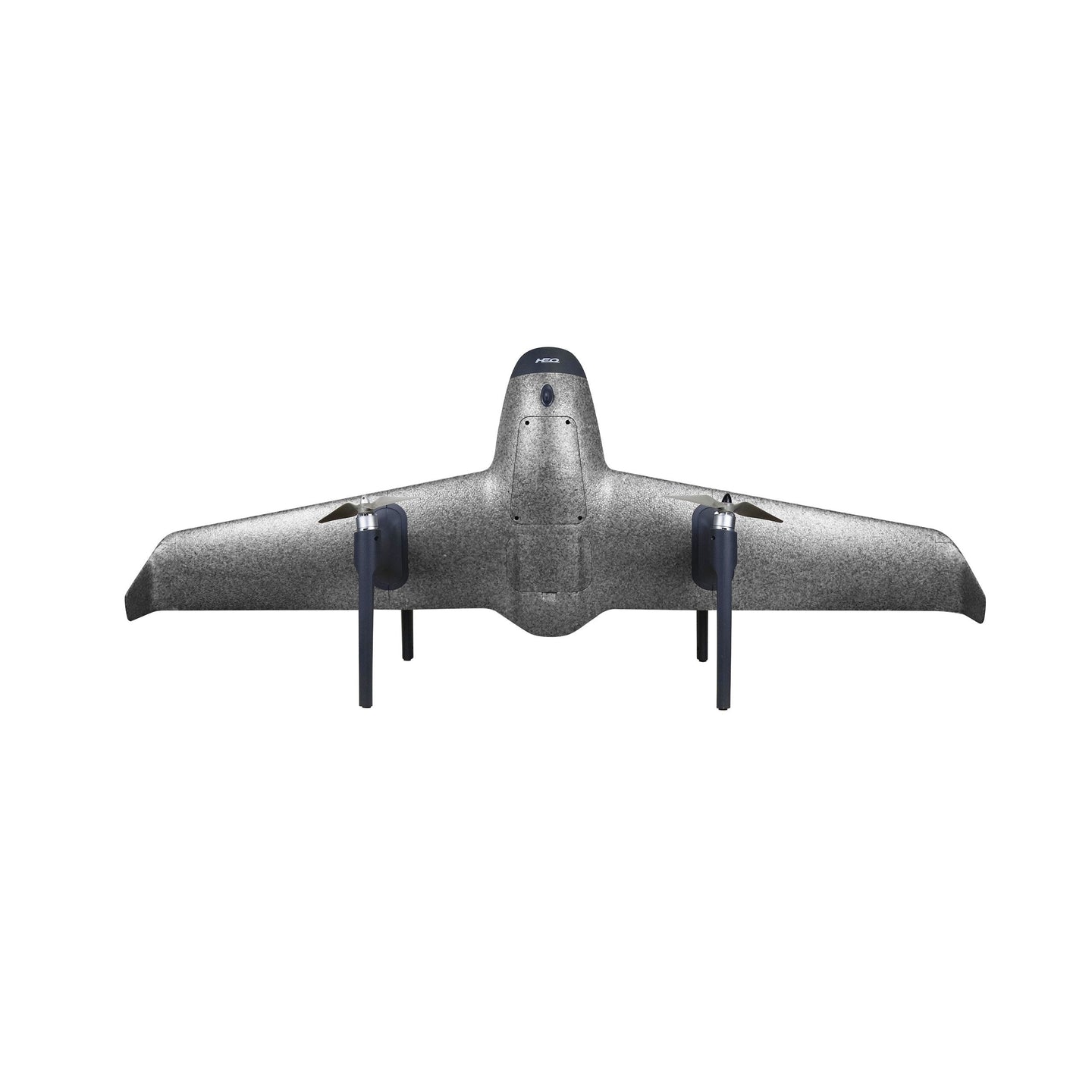

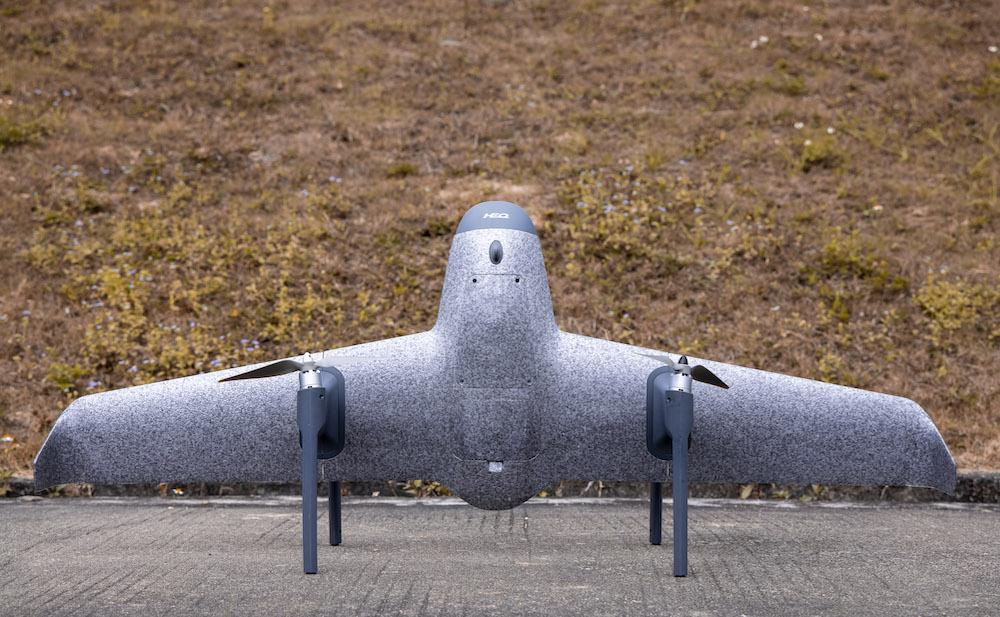

Swan K1 PRO Base Combo Vertical Takeoff Wing Long Range Drone
by
HEQ

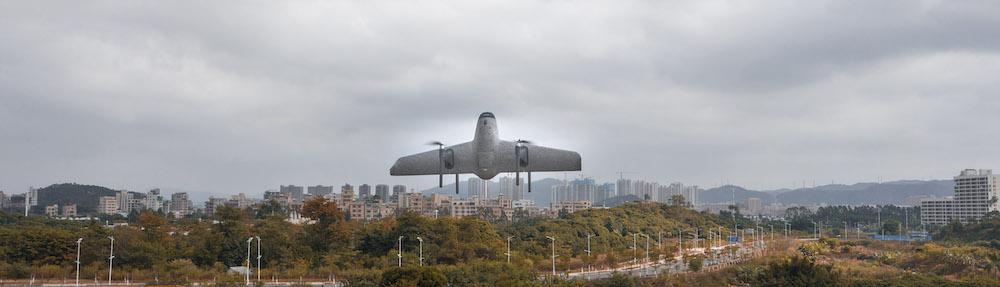

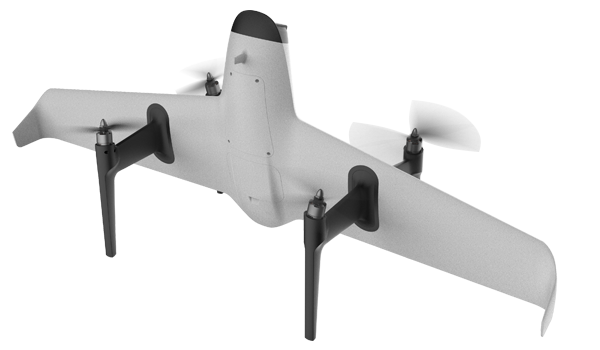

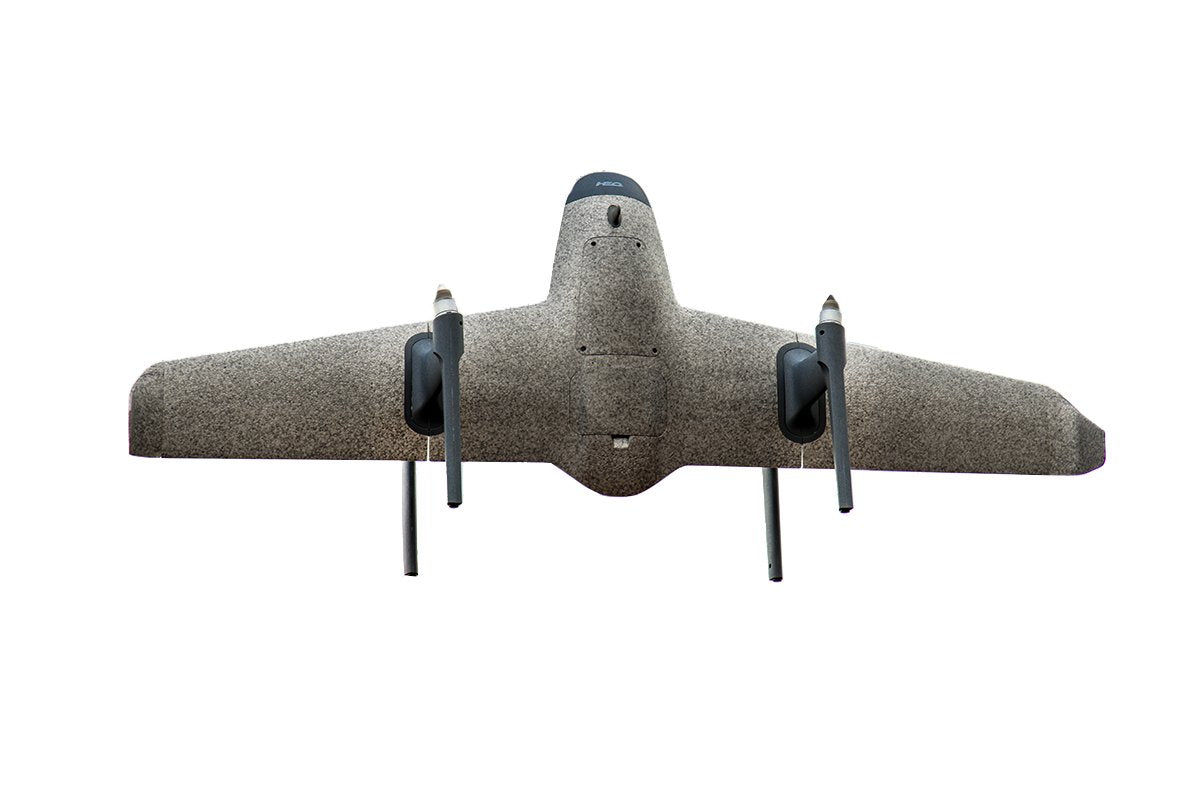

This innovative vertical takeoff and landing (VTOL) fixed-wing aircraft eliminates the need for runways or specialized launch equipment. Featuring a modular, rudderless design with differential steering, it achieves a remarkable 60-minute flight time in fixed-wing mode. With a 1200mm wingspan and a 40km flight range, it provides a seamless transition between multi-rotor precision and long-distance efficiency for aerial exploration.
Wingspan: 1200mmMax Flight Time: 60 MinutesFlight Range: 40kmTransmission Range: 3-5kmTake-off Weight: 1.55kgRemote Display: 5.5" 1080p
Alpha Vertical Take Off Wing - Urban Drones
Alpha Vertical Take Off Wing - Urban Drones
Specifications
Flight Performance
Flight Time (Fixed-wing Mode)
1 hour
Flight Time (Multi-rotor Mode)
15-18min
Maximum Flying Range
40km
Maximum Range (at 50m altitude)
25.2km
Maximum Flight Altitude
500m
Default Flight Altitude
120m
Aircraft Specifications
Wingspan
1200mm
Height
480mm
Empty Weight
1.13kg
No-Load Take-off Weight
1.55kg
Maximum Load Weight
350g
Material
EPP
Propulsion System
Motor Type
2212 KV980
Remote Controller
Screen Size
5.5 inch
Screen Resolution
1920*1080
Working Frequency
2.400~2.483GHz
Remote Control Distance
3-5km
Image Transmission Quality
SD
Remote Battery Capacity
10000m Ah
Remote Endurance Time
6-20 hours
Remote Weight
530g
Remote Dimensions
190*152*94mm
Battery & Charging
Aircraft Battery Type
4 S 5500m Ah Lipo
Charger Output
17.2V 4A
Remote Charging Port
Type-C
Battery Life
20h
Alpha Vertical Take Off Wing - Urban Drones
Technical Details
GPS Navigation
Integrated with Rotor-mode Hovering
Airspeed Indicator
Integrated Pitot System
Control Mechanism
Rudderless Differential Steering
Camera Compatibility
Go Pro 5, 6, 7, 8; DJI OSMO Action
Return-to-Home
One-key Independent Return
Safety Systems
Low-voltage and RC Loss Error Protection
Assembly Level
Modular (No tools required)

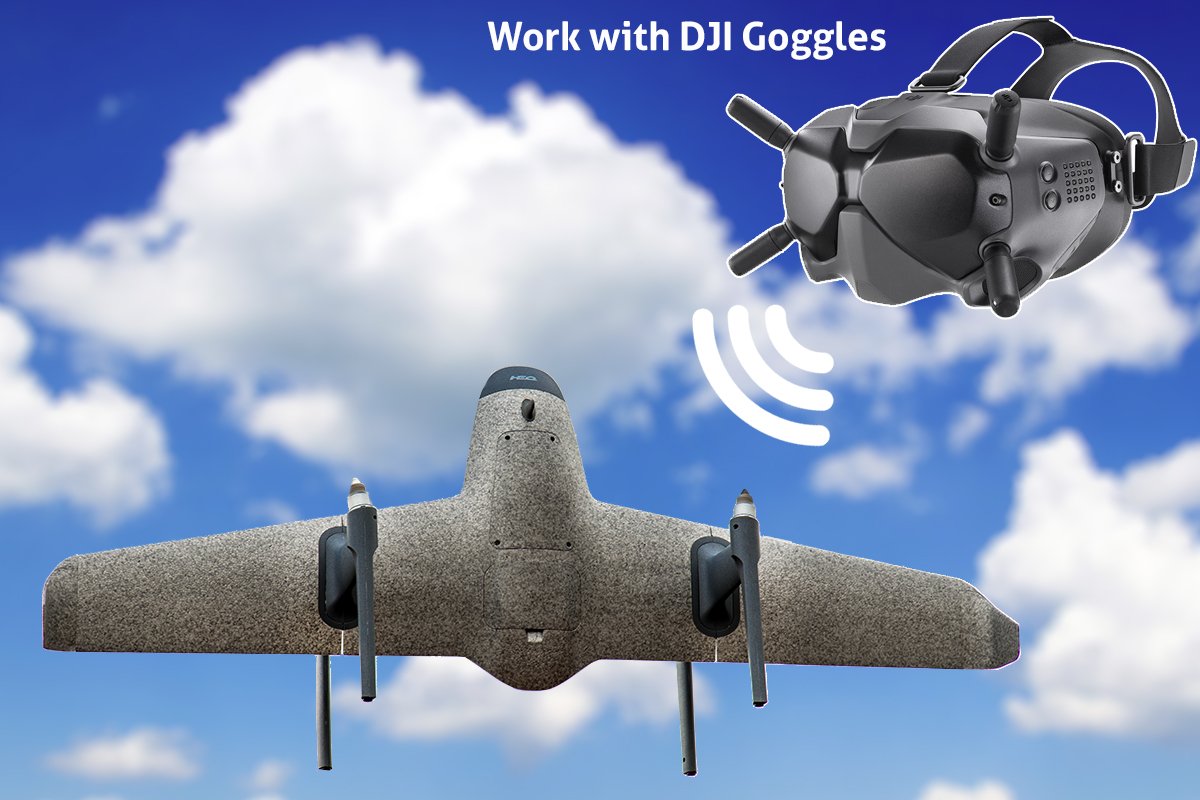

FPV Support
Compatible with standard FPV goggles
Warranty Period
12 Months

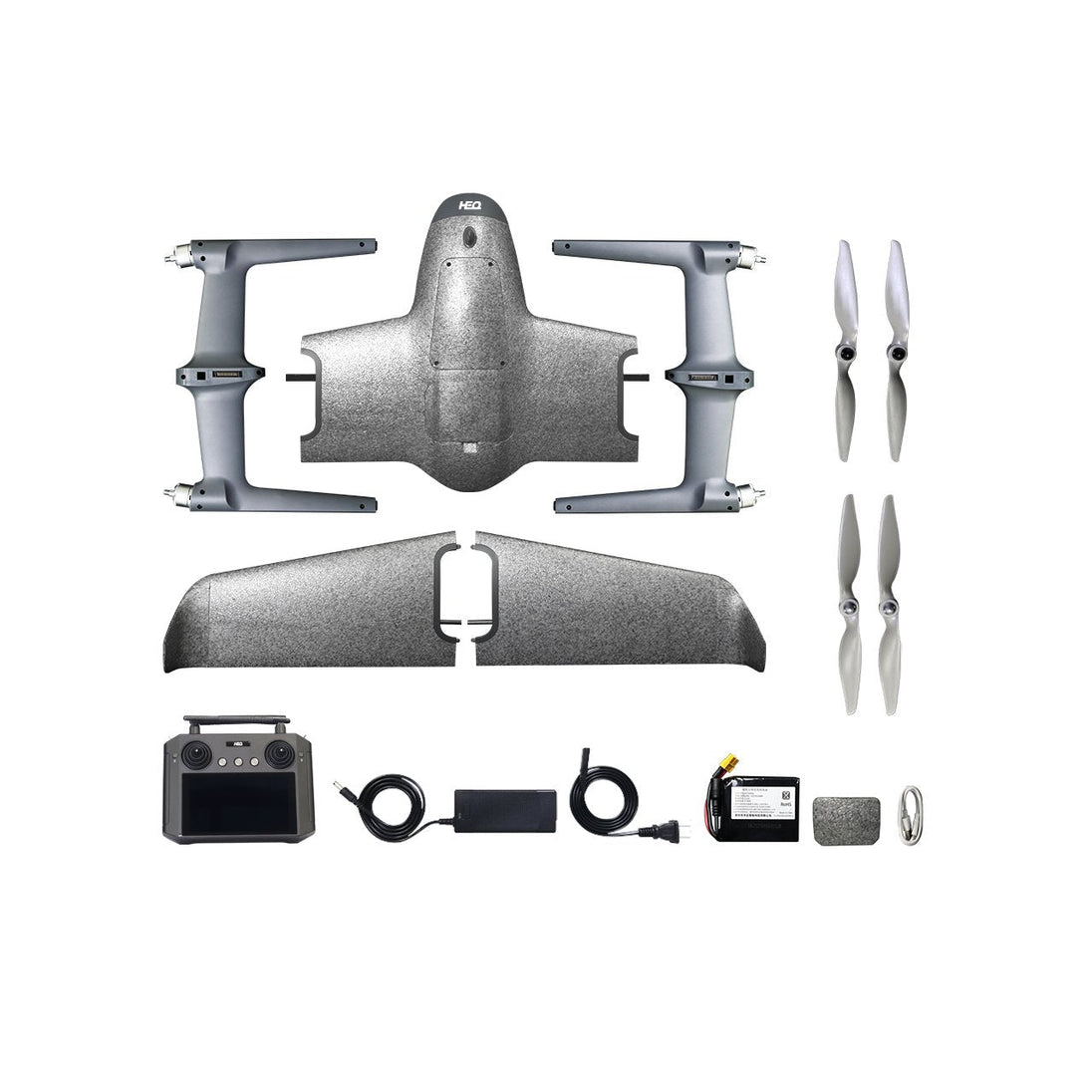

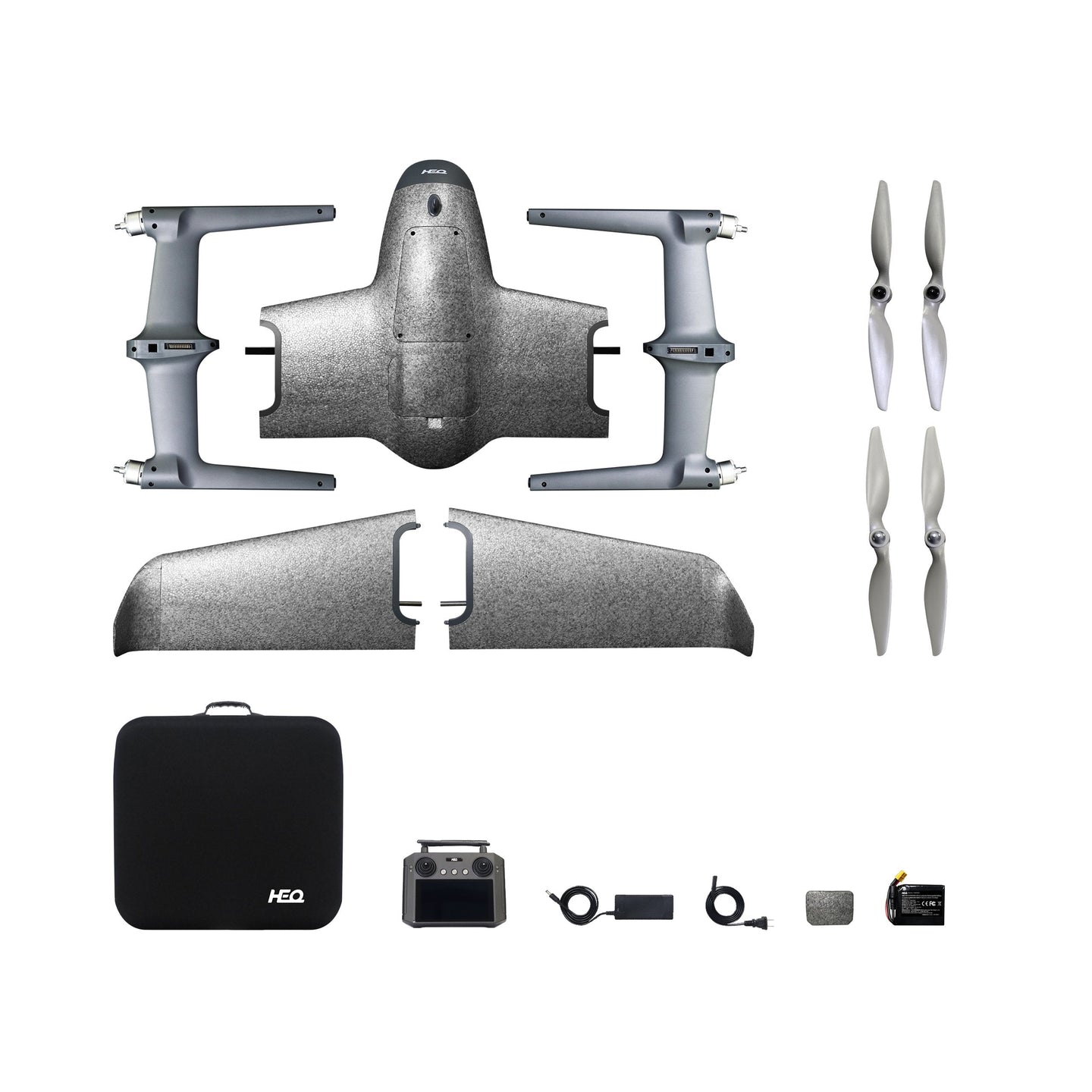

What's Included / Not Included (8 items)
Included:
- 1x HEQ Swan K1 H-WING VTOL Airplane

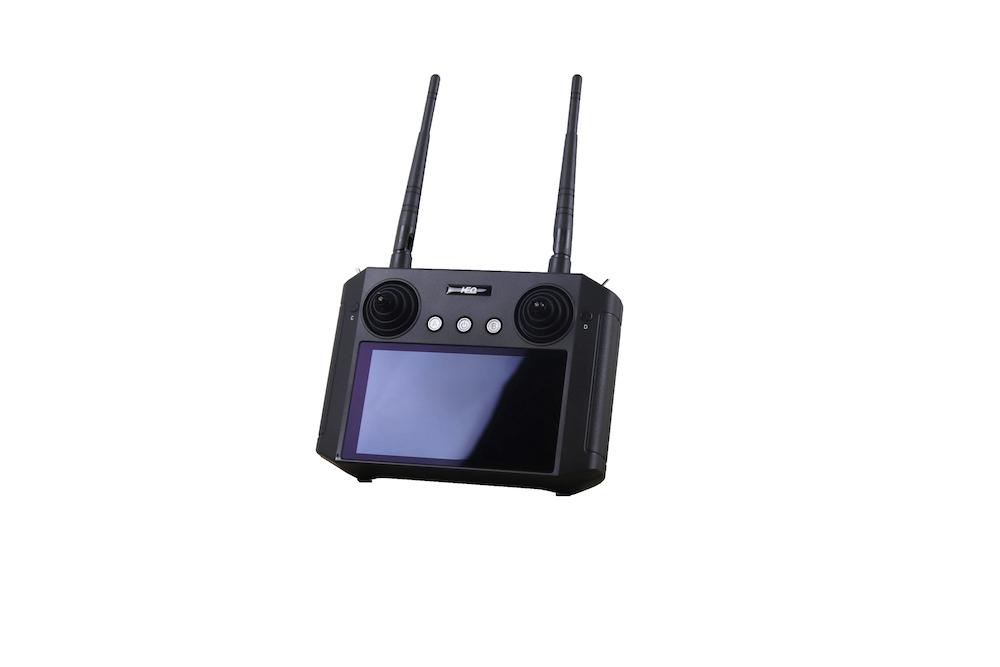

- 1x 5.5 inch high brightness Remote Control with HD touch screen
- 1x Power Charger (17.2V 4A)

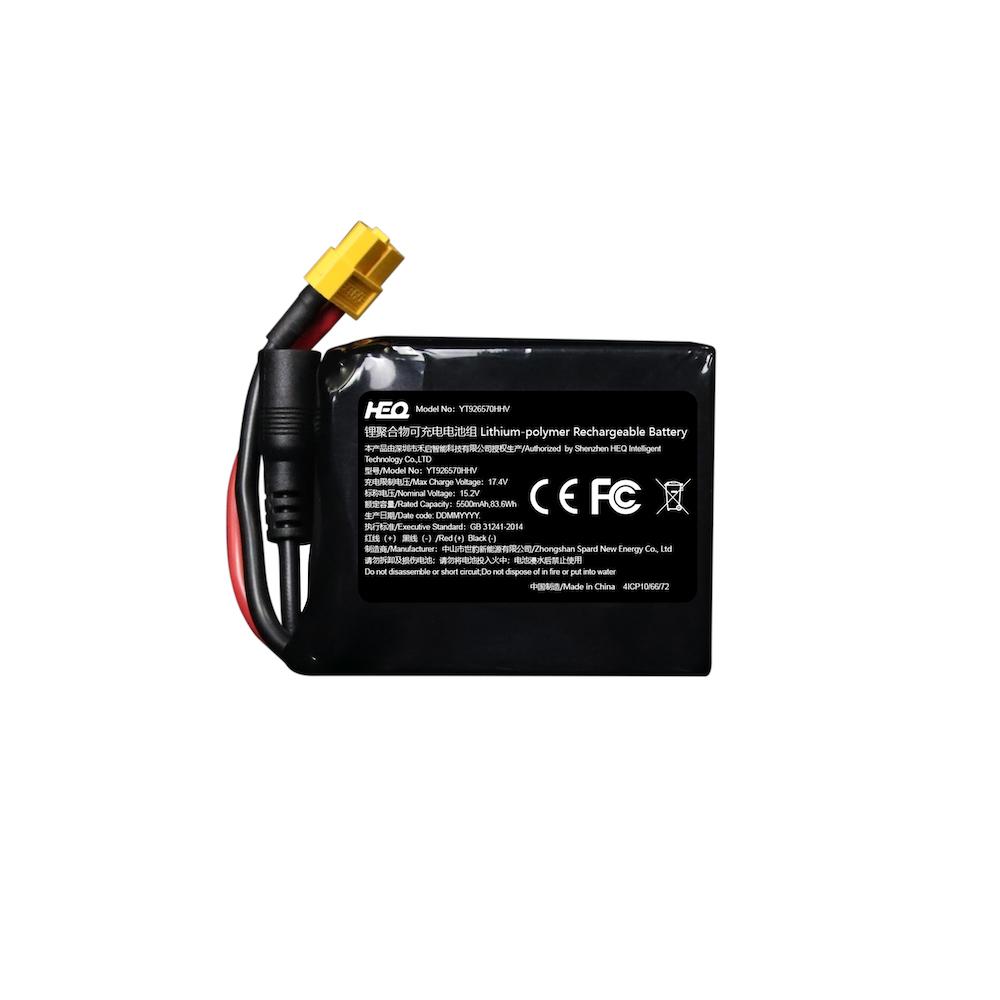

- 1x 5500m Ah 4S Lipo Battery (15.2V)
- 1x Set of 9060 quick detachable nylon propellers
- 1x Swan-K1 PRO head counterweight

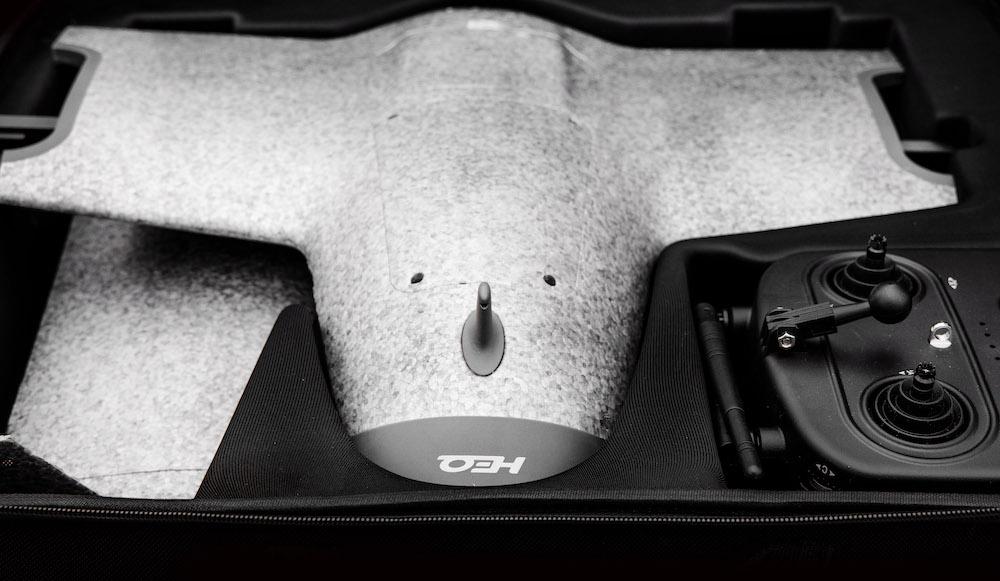

- 1x Heavy-duty Carrying Case
- 1x Type-C Data Cable
NOT Included:
- Action Camera (Go Pro or DJI Osmo Action sold separately)
- FPV Goggles (Supported but sold separately)
- Micro SD Card for onboard recording
Maintenance & Care
Recommended Schedule: After every 10 flight hours
- Inspect 9060 propellers for nicks, cracks, or structural fatigue.
- Check motor mounts and brushless motors for debris or excessive vibration.
- Verify the integrity of the EPP airframe and modular connection points.
- Ensure the airspeed indicator pitot tube is clear of obstructions.
- Calibrate the GPS and compass if flying in a new geographic location.
Frequently Asked Questions
Does the battery life include the takeoff and landing phases?
Yes, the nominal endurance of 60 minutes for fixed-wing flight includes the energy required for vertical takeoff and landing. These measurements are typically taken at an altitude of 50 meters in windless environments.
What is the maximum altitude this drone can reach?
By default, the flight altitude is limited to 120 meters to comply with standard regulations. However, users can adjust this in the settings to a maximum flight altitude of 500 meters depending on local laws and environmental conditions.
How does the drone handle navigation and stability?
This aircraft utilizes an integrated GPS system to maintain position and hover accurately while in multi-rotor mode. It also features a built-in airspeed indicator to optimize performance during fixed-wing transitions and long-range cruising.
Can the drone return to its starting point automatically?
Yes, the system supports one-key Return-to-Home (RTH) functionality. This safety feature works in both multi-rotor and fixed-wing modes and will trigger automatically in the event of a low battery or loss of remote control signal.
Product Identifiers
SKU: HEQVoyager-12
Brand: HEQ
Price: $1,199.00
Product Name: Swan K1 PRO Base Combo Vertical Takeoff Wing Long Range Drone
Category: Drone
