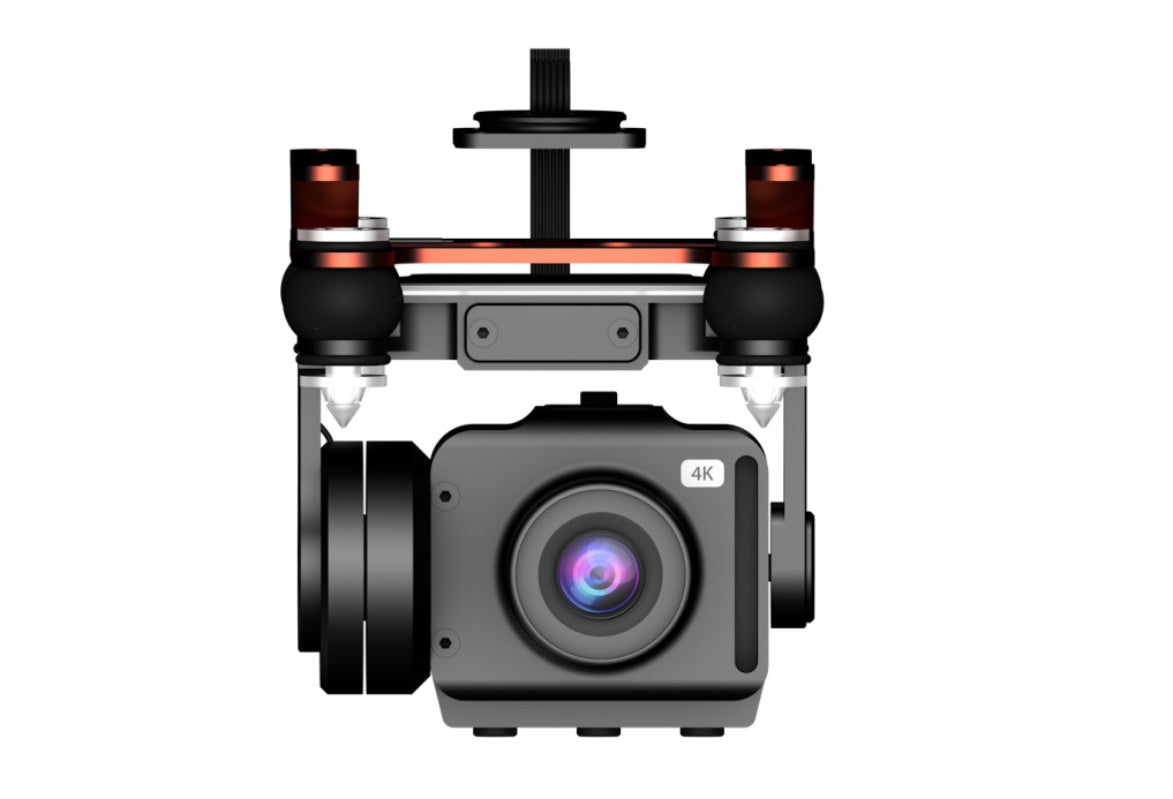

SwellPro GC1-M Gimbal Camera

by SwellPro

Engineered specifically for marine aerial imaging, this waterproof gimbal camera module delivers professional-grade stabilized visuals in challenging over-water environments. Purpose-built integration with SwellPro's Fisherman drone platforms enables reliable performance in conditions where standard camera systems would fail.

Featuring IP67 waterproof construction and a precision 1-axis stabilization system, the GC1-M captures 4K/30fps video and 12MP stills through its 92.6° FOV lens. The integrated dampening system and -90° to 0° tilt control ensure smooth, precise framing even during dynamic flight maneuvers over water.

Waterproof Rating: IP67 Video Resolution: 4K @ 30fps Photo Resolution: 12MP Field of View: 92.6° Tilt Range: -90° to 0°

Specifications

▶

Camera System ▶

Image Sensor 1/2.3 CMOS, 12M

Lens F4.5mm f/2.65, FOV:92.6°

ISO Range 100 - 3200

Shutter Speed 16 - 1/16000 s

Photo Resolution (4:3) 4000*3000

Photo Resolution (16:9) 3840*2160

Burst Mode 3/5/10 pcs

Satellite positioning system GPS/Galileo

Video Capabilities ▶

4K Resolution 30fps

2.7K Resolution 60fps

1080P Resolution 120/60/30fps

720P Resolution 240/120/60fps

Max Video Bitrate 60 Mbps

Video Format MP4 /MOV

Physical Specifications ▶

Weight 176.5 g

Dimensions 79*69*70 mm

Working Temperature -10° - 40°C

Gimbal System ▶

Axis 1-axis (tilt)

Controllable Range tilt: -90° to 0°

Max Control Speed tilt: 30°/s

Gimbal Control -90° to 0° tilt

Storage ▶

Memory Card Type microSD

Maximum Capacity 128GB

Required Write Speed ≥ 60 MB/s

Recommended Rating Class 10 or above & UHS-1 rating

Age Range (Description) Adult

Technical Details

▶

Waterproof Rating IP67

Image Sensor Type SONY IMX377

Photo Format Support JPEG / DNG (RAW)

Operating Temperature Range -10°C to 40°C

Mounting System Pre-installed hardware compatible with FD2/FD3

Field of View 92.6°Specifications▶Camera

4K 30fps | 2.7K: 60fps | 1080P: 120/60/30fps |Screen resolution

tilt -90° to 0°Max Control Speed

unfold 20*20*7.5 inch / 522*522*192 mm ; fold: 12*10.5*7.5 inch / 306*266*192 mmMax ascend speed

ATTI 45 mph / 20 m/s ; GPS: 22 mph / 10 m/sMax tilt angle

CE/FCC/ROHS/RCMAdvanced VersionWeight 1.56 lbs / 709 gSize

8AInput 100 - 240VOutput

Drone weight (including battery) 8.3 lbs / 3.78 kg

Size (w/o propeller) unfold: 20*20*7.5 inch / 522*522*192 mm ; fold: 12*10.5*7.5 inch / 306*266*192 mm

Max ascend speed 7 mph / 3 m/s

Max descent speed 4.5 mph / 2 m/s

Max flight speed ATTI: 45 mph / 20 m/s ; GPS: 22 mph / 10 m/s

Max tilt angle 25°

Max flight altitude 1 mile / 1500 m

Max flight distance 1 mile / 1500 m

Max image transmission distance 0.7 mile / 1000 m

Max payload capacity 7 ~ 8 lbs / 3.2 ~ 3.6 kg

Flight time up to 28 mins ( no wind & no load)

Max wind speed resistance 40 mph / 18 m/s / 35 knots

Hovering precision ±1.6 feet / ±0.5 m

What's Included / Not Included

▶

Included:

• GC1-M waterproof gimbal camera module
• Pre-installed mounting hardware
• Protective packaging for transport

NOT Included:

• MicroSD card (required, up to 128GB)
• Host platform firmware updates (download required)

Resources & Downloads

▶

Official documentation and manuals are available upon request.

Product Identifiers

▶

SKU: UDSP061

Brand: SwellPro

Price: 459.00

Product Name: SwellPro GC1-M Gimbal Camera

Category: accessories

Product Source: Link
