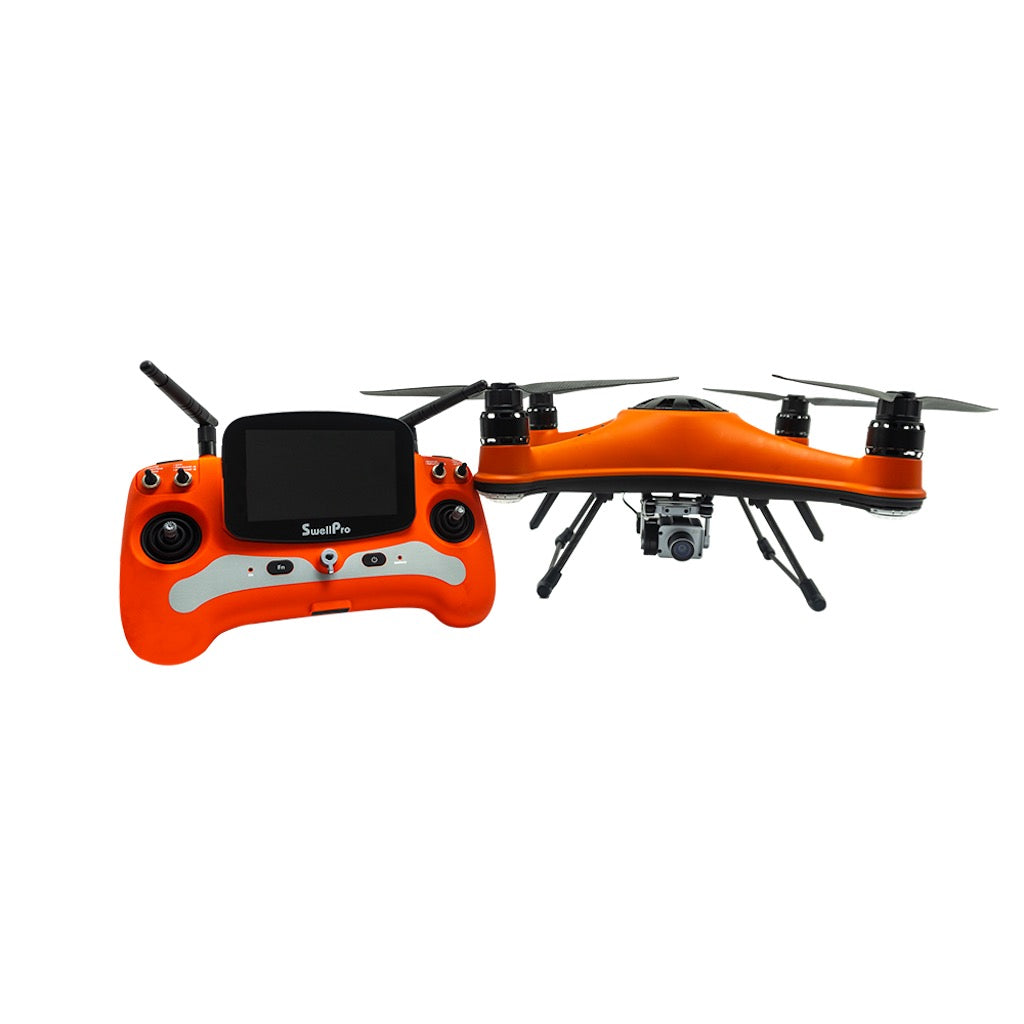

SwellPro Fisherman FD3 Fishing Drone | Professional Waterproof Marine UAV Platform

SKU UDSP075A
$1,599.99
$1,599.99
Version:
Extra Battery:

TheRoboCraft | SwellPro Fisherman FD3 Fishing Drone
Skip to main content
TheRoboCraft
PRODUCT DOCUMENTATION
Drones

SwellPro Fisherman FD3 Fishing Drone

by SwellPro

Engineered for professional marine deployment, this waterproof fishing drone represents a significant advancement in specialized UAV technology. Combining robust IP67-rated construction with precision payload delivery

Professional and recreational anglers seeking to extend their casting range and improve bait placement precision. Ideal for shore-based fishing enthusiasts who want to access deeper waters and target offshore species without a boat. Suitable for both beginners and experienced drone pilots due to its automated features and intuitive controls.

Max Range: 1.3 kilometers Payload Capacity: 4.4 lbs (2 kg) Flight Time: Up to 27 minutes Wind Resistance: 40 mph (18 m/s) Waterproof Rating: IP67 Camera Resolution: 4K
Product overview
Product overview

Capabilities

▶
Deploy baits up to 1.3 kilometers offshore
Carry multiple hooks and baits up to 4.4 lbs total
Land and take off from water surface
Auto-flip if capsized in water
Save and return to GPS fishing spots
Feature detail
Feature detail

Specifications

▶
Flight Performance ▶
Maximum Range 1.3 kilometers
Max Flight Time (No Payload) 27 minutes
Max Flight Time (1 KG Load) 14 minutes
Max Flight Time (2 KG Load) 9 minutes
Max Ascend Speed 7 mph / 3 m/s
Max Descent Speed 4.5 mph / 2 m/s
Max Flight Speed (GPS Mode) 22 mph / 10 m/s
Max Flight Speed (ATTI No Payload) 40 mph / 18 m/s
Max Flight Speed (ATTI With Payload) 31 mph / 14 m/s
Max Wind Resistance 40 mph / 18 m/s / 35 knots
Max Tilt Angle 30°
Hovering Precision ±0.5m
Max Altitude from Takeoff 120m default
For fishing & filming SD4+For search & rescue: SD4+ / FD2
Aircraft Specifications ▶
Waterproof Rating IP67
Weight Without Battery 1578g
Weight With Battery 2291g
Max Take-Off Weight 4491g
Dimensions With Propellers 628*628*218mm
Dimensions Without Propellers 372*372*202mm
Flight Controller S5 Flight Control System
Color Orange

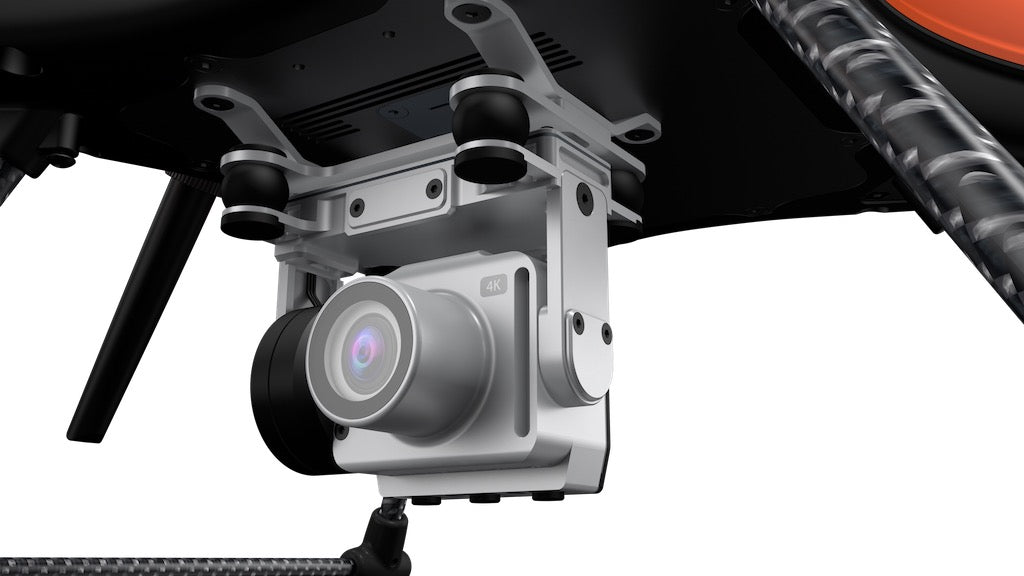

Camera System ▶
Camera Model GC1-M 4K
Video Resolution 4K
Photo Resolution 8 MP
Video Format MP4
Image Sensor CMOS
Camera Resolution 4K
Power System ▶
Battery Type 6S LIHV
Battery Capacity 4200 mAh
Nominal Voltage 23.1V
Max Charging Voltage 26.4V
Charging Time 120 mins
Max Charging Current 5A
Transmitter Power (EIRP) 2.405-2.475GHz: <26 dBm (FCC), <20 dBm (CE)Sensitivity: -92 dBBattery: 2S 3000 mAhWorking time: 5 hours
Remote Controller ▶
Operating Frequency 2.402-2.478GHz
Transmitter Power <20dBm
Display 5 inch multi-color LCD
Display Resolution 800*480 px
Screen Brightness 500 cd/m2
Screen Aspect Ratio 16:9
Control Range 1.3 km
Remote Control Included? Yes
Technical reference
Technical reference

Technical Details

▶
Waterproof Rating IP67 (fully waterproof and saltwater-resistant)
Operating Temperature 14°F to 104°F (-10°C to 40°C)
Satellite Systems GPS + Galileo + BeiDou
Certifications CE, FCC, ROHS, RCM
App Compatibility FDFly APP
Memory Card Support microSD up to 128GB, Class 10 or UHS-1
Return to Home Automatic on signal loss
Auto-Flip Supported when capsized in water
2.405-2.475GHz <26 dBm (FCC), <20 dBm (CE)Sensitivity: -92 dBBattery: 2S 3000 mAhWorking time: 5 hoursRemote Controller
All from the shore.Demo How FD3 Bait Drop Works?A Closer Look At FD34.4 LBS (2 KG)
spots & precise drop?Yes FD2 Advanced /FD3/SD4+No: FD2 Basic / FD1+A drone with a camera makes it
boat?Land-based FD2 advanced &
unique advantages support
FD3 / SD4+No FD1+The FDFly app (for FD2 and FD3)
drop baits?< 200 yards FD1+200 - 400 yards: FD3 / SD4+500+ yards: FD2 advanced &
Yes SD4+No: All othersUnlike structures, fish and bait
Age Range (Description) Adult
Battery Cell Composition Lithium Polymer
Are Batteries Included Yes
Optical Sensor Technology CMOS
Manufacturer SwellPro

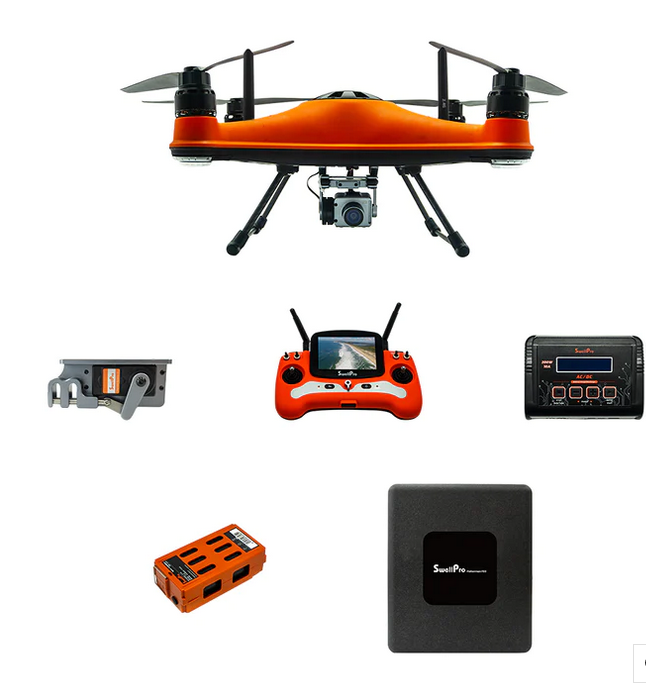

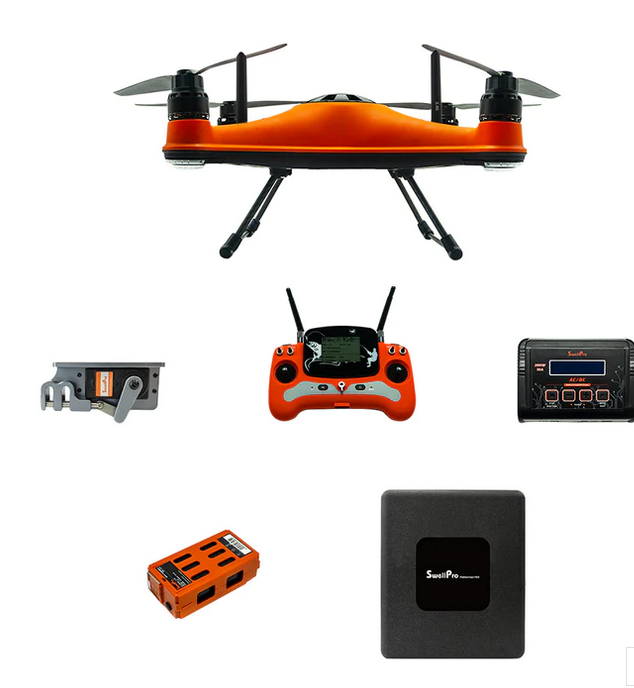

What's Included / Not Included

▶

Included:

  • Aircraft x1
  • Remote controller x1
  • GC1-M 4K Camera x1
  • Dual Bait release system x1
  • Flight battery x1
  • Propellers (Pair) x2
  • Charger x1
  • Phone Mount x1
  • Power Adapter x1
  • Charging Cable x1
  • USB-C Cable x1
  • Carry case x1
  • User Manual x1
  • Quick Start Guide x1
  • Controller lanyard x1
  • Screwdriver x1

NOT Included:

  • Additional batteries
  • Extended warranty
  • Installation services
  • Float attachments
  • Memory card

Compatibility

▶

Compatible With:

  • SwellPro mobile app
  • Standard fishing lines and bait systems
  • 4K video recording devices
  • MP4 video players
  • Standard USB charging systems
  • SwellPro accessories
  • Standard memory cards
  • Wi-Fi enabled devices

Operating Environment:

  • Max Altitude from Takeoff: 120m default
Compatibility and ecosystem
Compatibility and ecosystem

Maintenance & Care

▶
Recommended Schedule: After each use in marine environments
  • Rinse with fresh water after saltwater exposure
  • Check propellers for damage or wear
  • Inspect waterproof seals
  • Clean camera lens
  • Store battery at recommended charge level

Frequently Asked Questions

▶
What is the maximum payload capacity?
The drone can safely carry up to 4.4 lbs (2 kg) of bait or fishing gear. Flight time varies based on payload weight - approximately 27 minutes with no load, 14 minutes with 1 kg load, and 9 minutes with 2 kg load.
How does it handle water landings?
The drone features IP67 waterproof construction and is designed to float. If it flips over in water, it has an auto-flip capability allowing it to right itself and take off again. All electronics are coated for corrosion resistance against saltwater exposure.
What wind conditions can it operate in?
The FD3 is rated for winds up to 40 mph (18 m/s or 35 knots) thanks to its powerful propulsion system and GPS 9.0 stability control. However, payload capacity may need to be reduced in stronger winds.
Additional reference
Additional reference

Resources & Downloads

▶

Official documentation and manuals are available upon request.

Product Identifiers

▶
SKU: UDSP075A
Brand: SwellPro
Manufacturer #: warranty
Price: 1599.99
Product Name: SwellPro Fisherman FD3 Fishing Drone
Category: Drone
Product Source: Link

Disclaimers & Source Notes

▶

About SwellPro Fisherman FD3 Fishing Drone

Specifications and features documented here are based on official the manufacturer product information. Performance may vary based on conditions, configuration, and usage patterns.

Regulatory Considerations

Drone operation may be subject to local aviation regulations, registration requirements, and flight restrictions. Check with your local aviation authority before flying.

Verification Recommended

Always verify current specifications with the manufacturer before purchase. Product specifications may be updated without notice.
