PRODUCT DOCUMENTATION
Drones

SwellPro Fisherman MAX Heavy-Lift Fishing Drone

by SwellPro

Engineered specifically for professional anglers, this heavy-lift waterproof drone revolutionizes offshore fishing by delivering baits up to 8 pounds to previously unreachable spots. The fully sealed IP67-rated construction enables confident operation in harsh marine environments, while the intelligent flight control system maintains stability even when carrying maximum payloads in strong winds up to 40 mph.

Powered by a robust 4500mAh 6S LiPo battery, it achieves flight times up to 28 minutes and can cover distances up to 1 mile from shore. The advanced version's integrated 4K camera with 92.6° FOV enables real-time fish spotting and precise bait placement, while the dual-release mechanism can deploy up to 15 baited hooks in a single flight for maximum fishing efficiency.

Max Payload: 7.7 lbs / 3.5 kg Flight Time: 28 minutes (no load) Control Range: 1 mile / 1500m Wind Resistance: 40 mph / 18 m/s Camera Resolution: 4K @ 30fps Waterproof Rating: IP67
Product overview
Product overview

Capabilities

▶

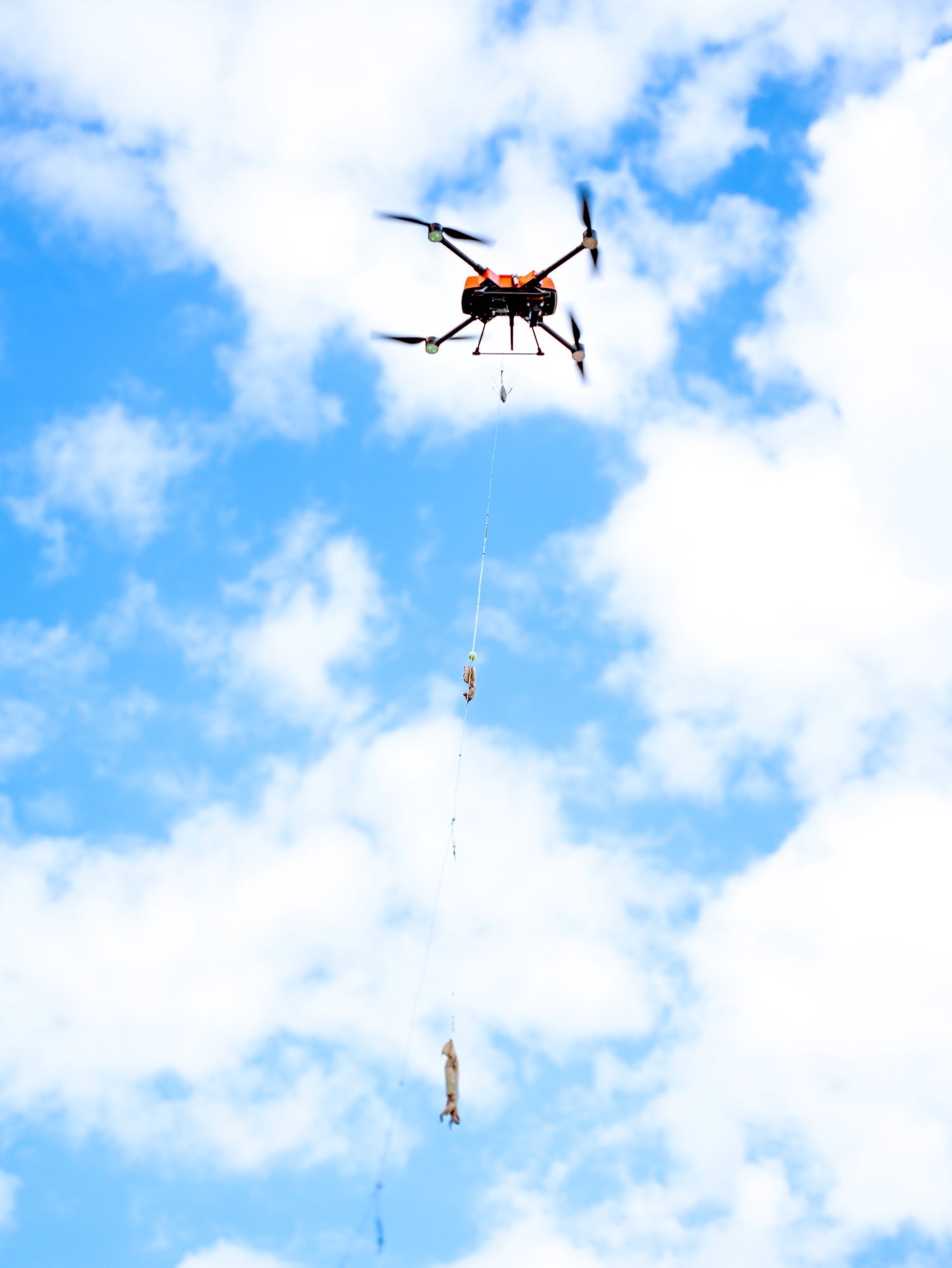

Deploy up to 15 baited hooks in a single flight
Operate in winds up to 40 mph while maintaining stability
Auto-return to home point on low battery or signal loss
Land and take off from water surface with float system
Stream real-time 4K video for fish spotting
Automatically navigate to GPS-marked fishing spots

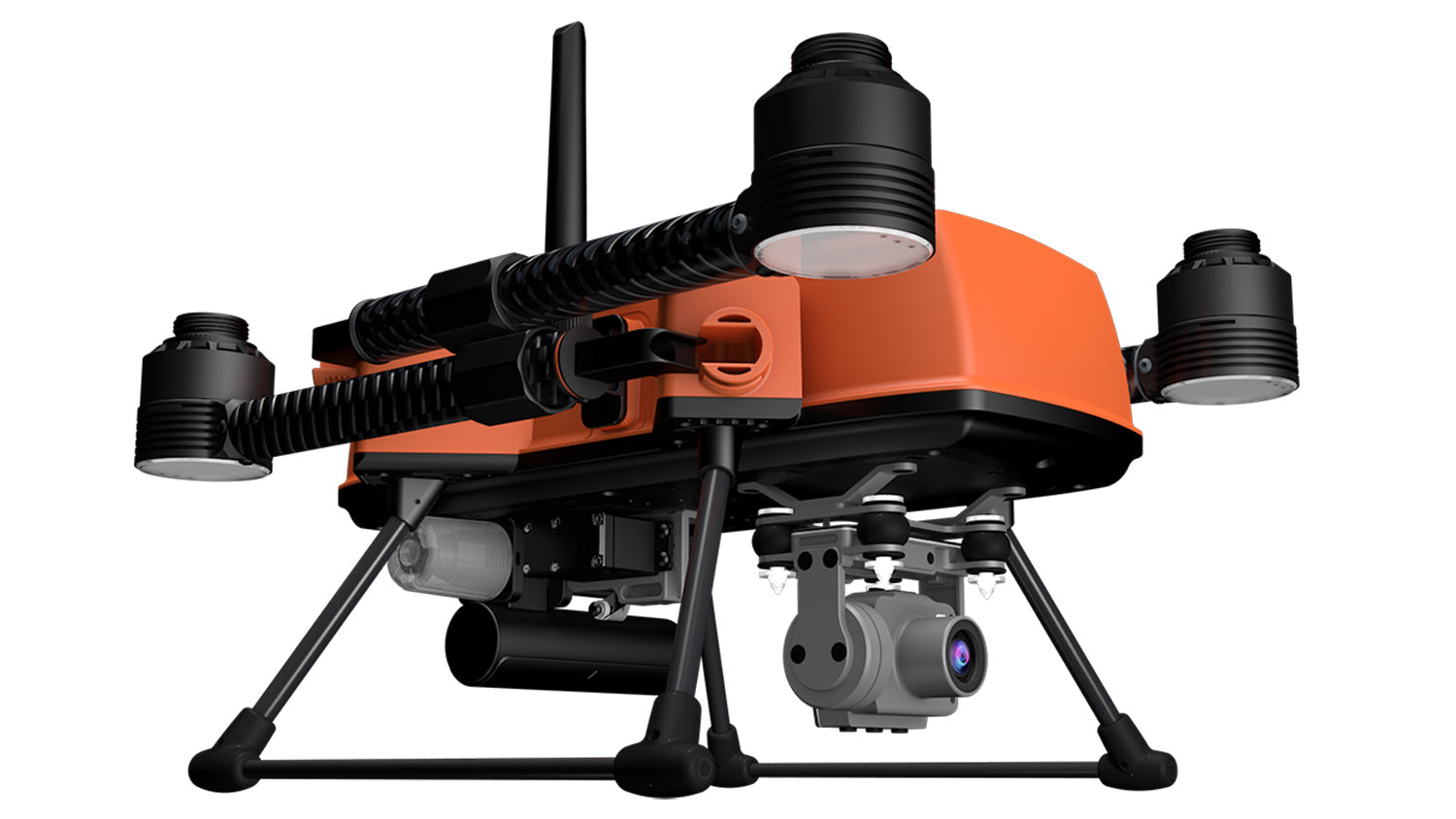

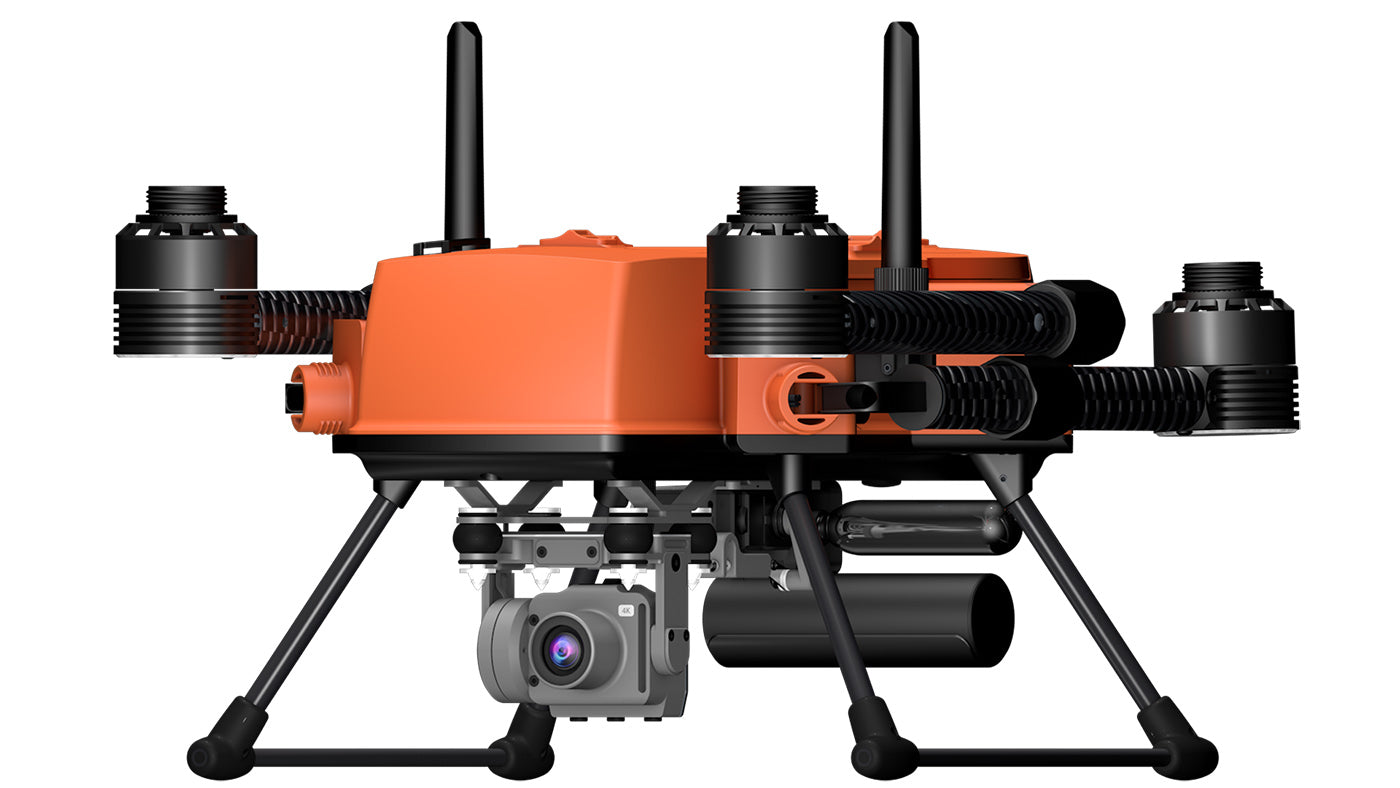

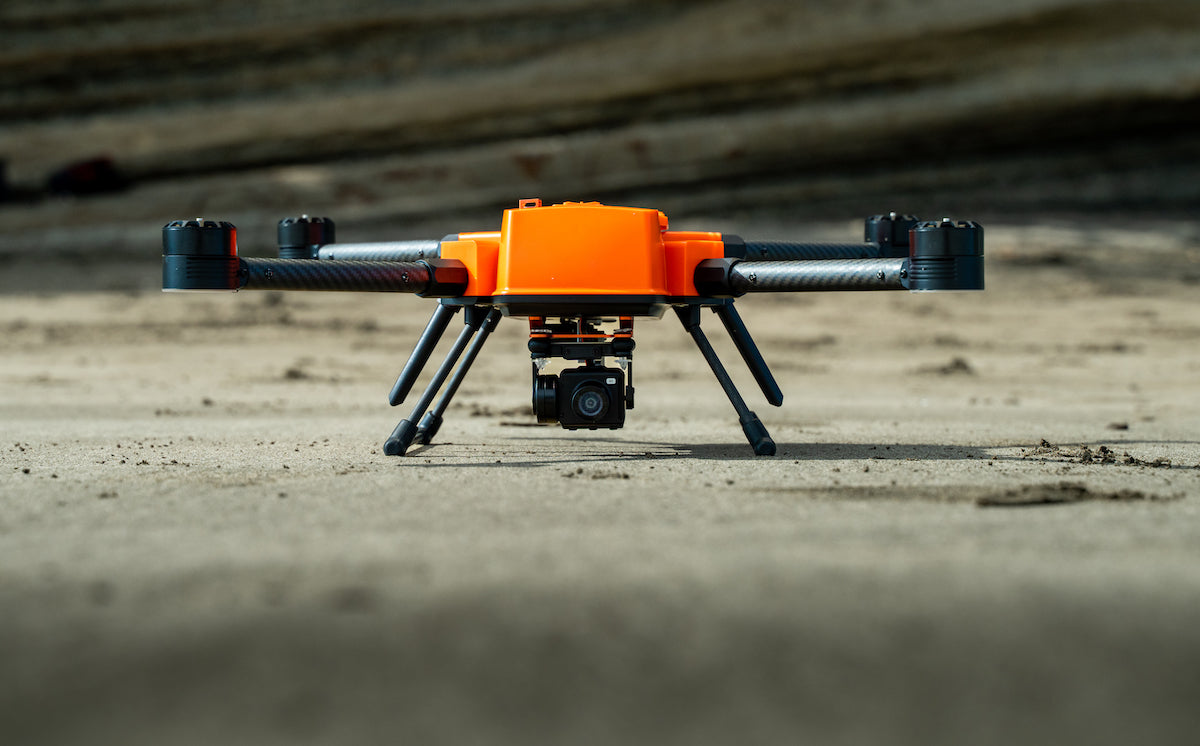

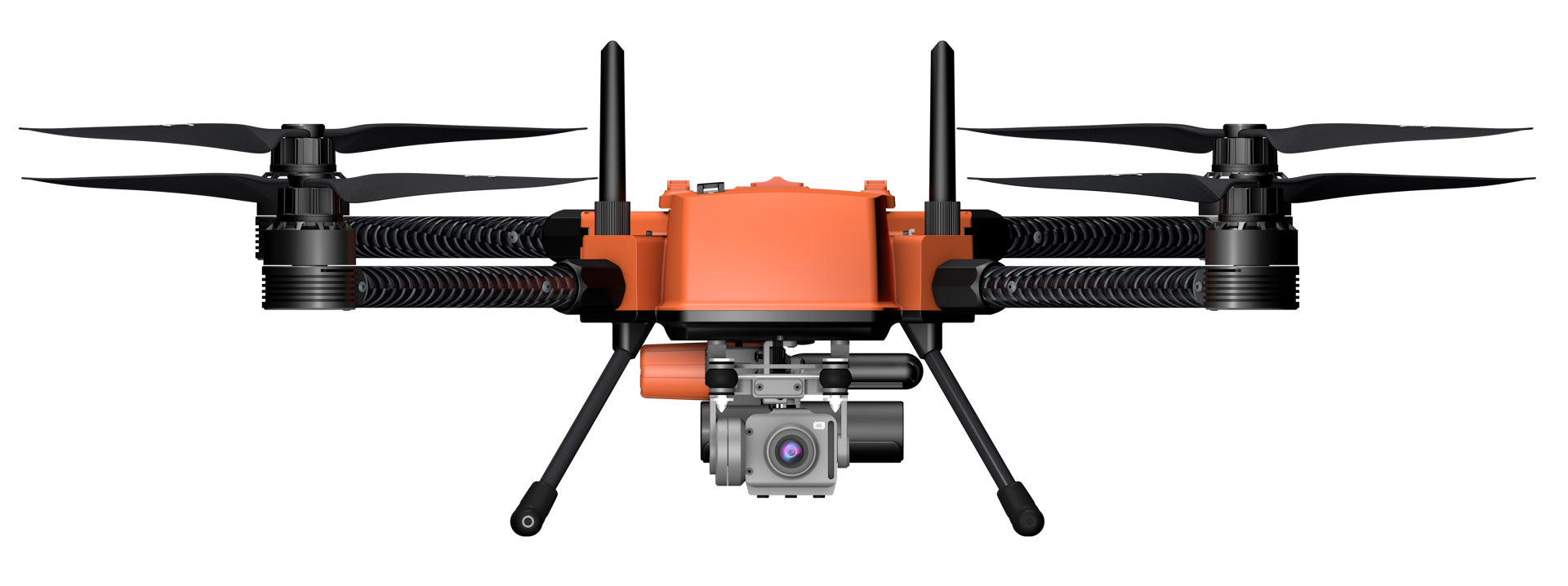

Front view
Front view

Specifications

▶
Flight Performance ▶
Max Flight Time 28 minutes (no wind & no load)
Max Flight Distance 1 mile / 1500 m
Max Flight Altitude 1 mile / 1500 m
Max Ascend Speed 7 mph / 3 m/s
Max Descent Speed 4.5 mph / 2 m/s
Max Flight Speed (ATTI) 45 mph / 20 m/s
Max Flight Speed (GPS) 22 mph / 10 m/s
Max Wind Resistance 40 mph / 18 m/s / 35 knots
Hovering Precision ±1.6 feet / ±0.5 m
Max Tilt Angle 25°
Aircraft Specifications ▶
Waterproof Rating IP67
Takeoff Weight 8.3 lbs / 3.78 kg (including battery)
Unfolded Dimensions 20*20*7.5 inch / 522*522*192 mm
Folded Dimensions 12*10.5*7.5 inch / 306*266*192 mm
Max Payload Capacity 7.7 lbs / 3.5 kg
Motor 4114 - 400Kv
ESC 40A
Propellers #1655 carbon fiber

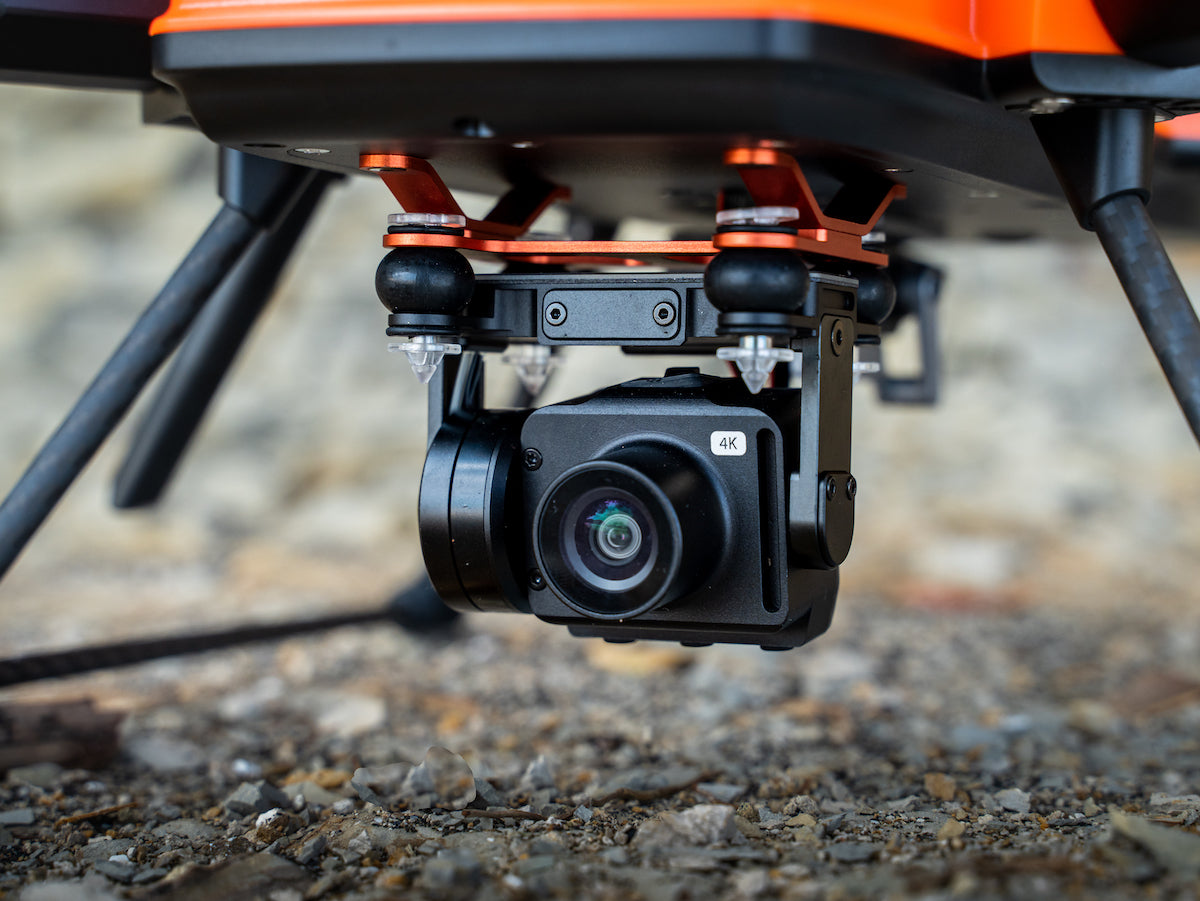

Camera System ▶
Image Sensor SONY IMX377
Lens F4.53mm f/2.65
FOV 92.6°
ISO Range 100 - 3200
Shutter Speed 16 - 1/16000 s
Photo Resolution 4000*3000 (4:3), 3840*2160 (16:9)
Photo Format JPEG / DNG (RAW)
Camera Resolution 4K @ 30fps
Satellite positioning system GPS/Galileo
Video Recording ▶
4K Resolution 30fps
2.7K Resolution 60fps
1080P Resolution 120/60/30fps
720P Resolution 240/120/60fps
Max Video Bitrate 60 Mbps
Video Format MP4 /MOV
Remote Controller ▶
Display Size 5 inch
Display Resolution 800*480 px
Screen Brightness 500 cd/m2
Operating Frequency 2.405-2.475 GHz; 5.725 - 5.825 GHz
Max Transmission Range 0.7 mile / 1000 m
Latency 20 ms
Battery Capacity 3000mAh
Working Time 4 hours
Charging Time 3 hours
Control Range 1 mile
Battery & Power ▶
Battery Type 6S LiPo
Capacity 4500 mAh
Voltage 22.2V
Charging Time 80 mins
Max Charging Current 8A
Transmitter power (EIRP) <33 dBm (FCC), <20 dBm (CE) | <33 dBm (FCC), <14 dBm (CE)
Power input 5V/2A USB-C
Power cable 3.9 feet / 1.2 m

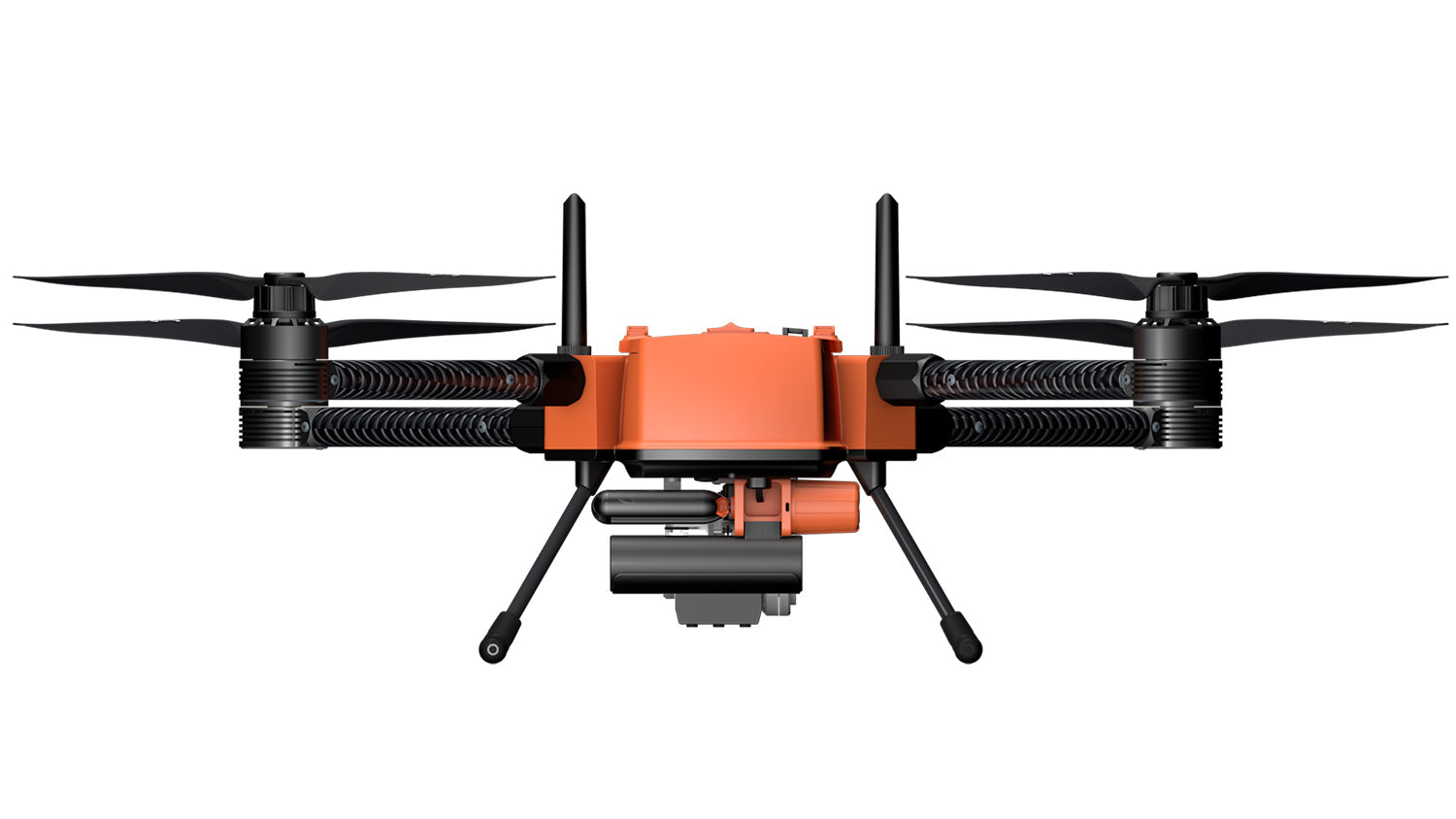

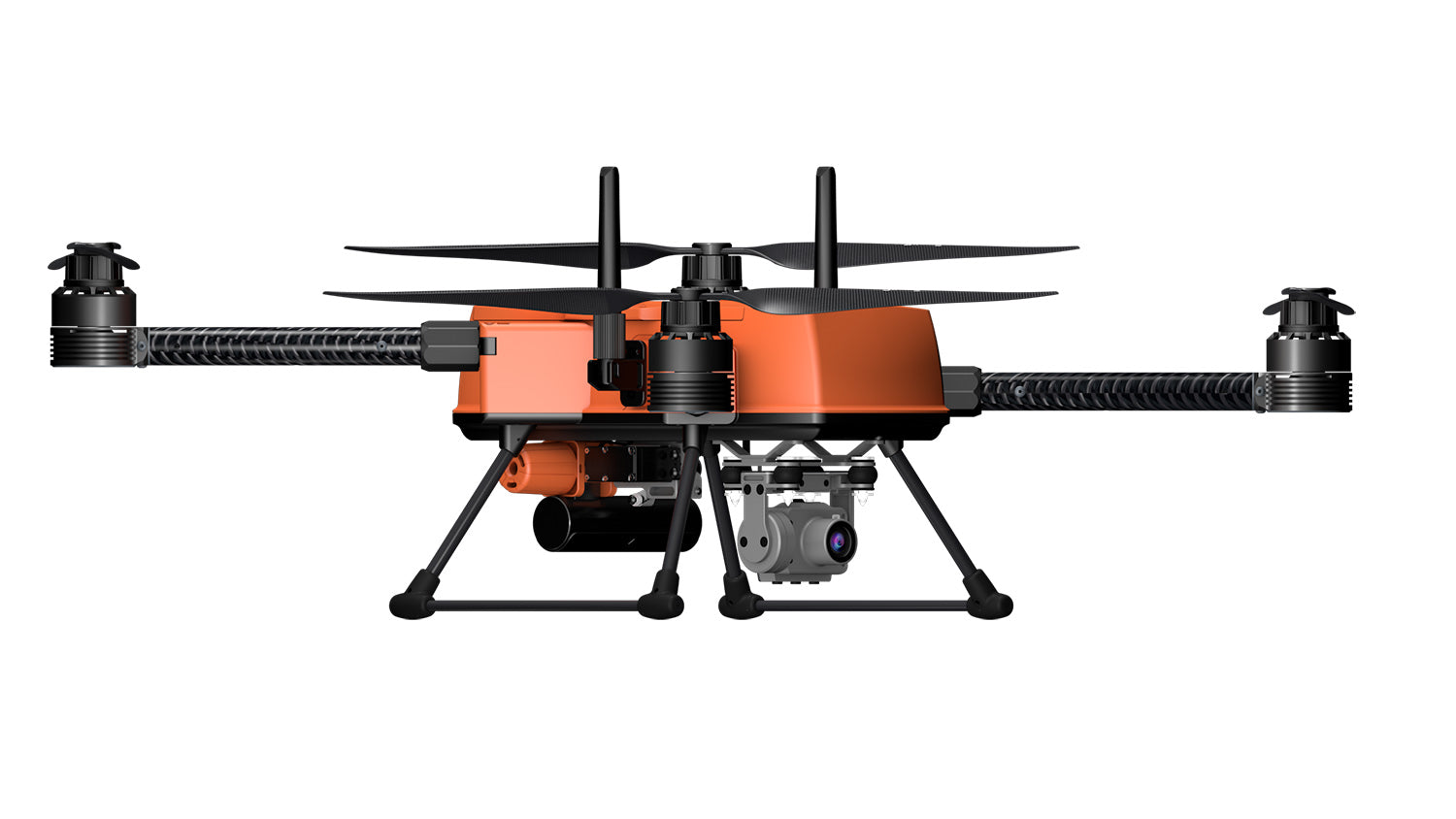

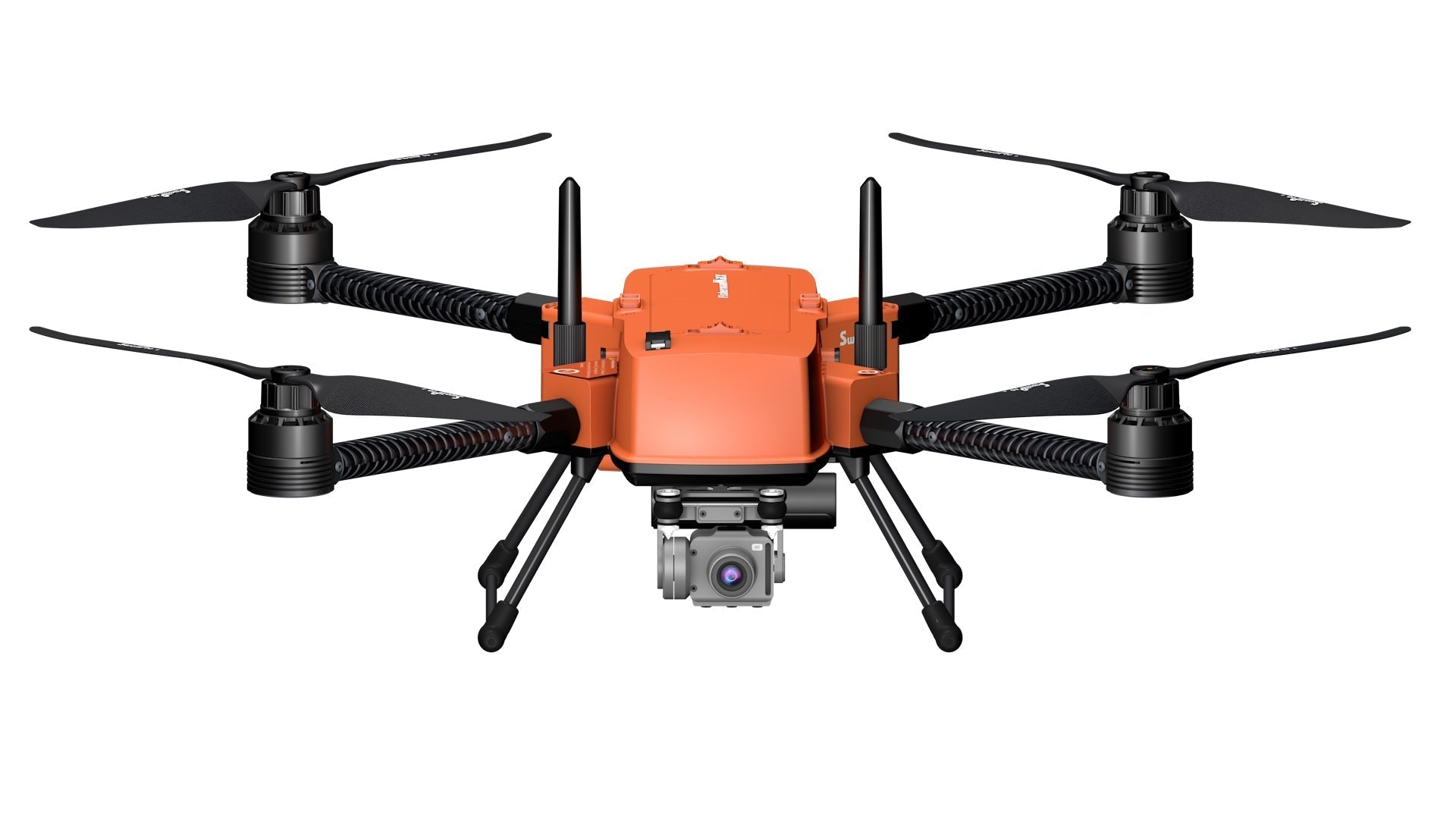

Front view
Front view

Technical Details

▶
Operating Temperature 14℉ ~ 104℉ / -10℃ ~ 40℃
Waterproof Rating IP67 (Aircraft & Camera)
Controller Waterproof IP54
Storage Support MicroSD up to 128GB, Class 10/UHS-1
Satellite Systems GPS/Galileo
Stabilization 1-axis (tilt)
App Required SwellPro FDFly mobile app
Special Features Auto-Landing, First Person View (FPV), Foldable
unfold 20*20*7.5 inch / 522*522*192 mm ; fold: 12*10.5*7.5 inch / 306*266*192 mmWorking temperature
Size (w/o propeller) unfold: 20*20*7.5 inch / 522*522*192 mm ; fold: 12*10.5*7.5 inch / 306*266*192 mm
Working temperature 14℉ ~ 104℉ / -10℃ ~ 40℃
Certifications CE/FCC/ROHS/RCMAdvanced VersionWeight: 1.56 lbs / 709 g
Aspect ratio 16:9
Language English
Output 25.2V
Supported memory card microSD card with a maximum capacity of 128GB, write speed ≥ 60 MB/s, recommend using Class 10 or above & UHS-1 rating
Model Name Fisherman MAX
Special Feature Auto-Landing, First Person View (FPV), Foldable
Age Range (Description) Adult
Connectivity Technology Wi-Fi
Multi-Color Display fishing drones Live video feed for Increasing bait cast accuracy without using a phone.
Auto-Fish (Beta) swellpro drone Automatically fly to marked fishing spots on the APP to drop baits.

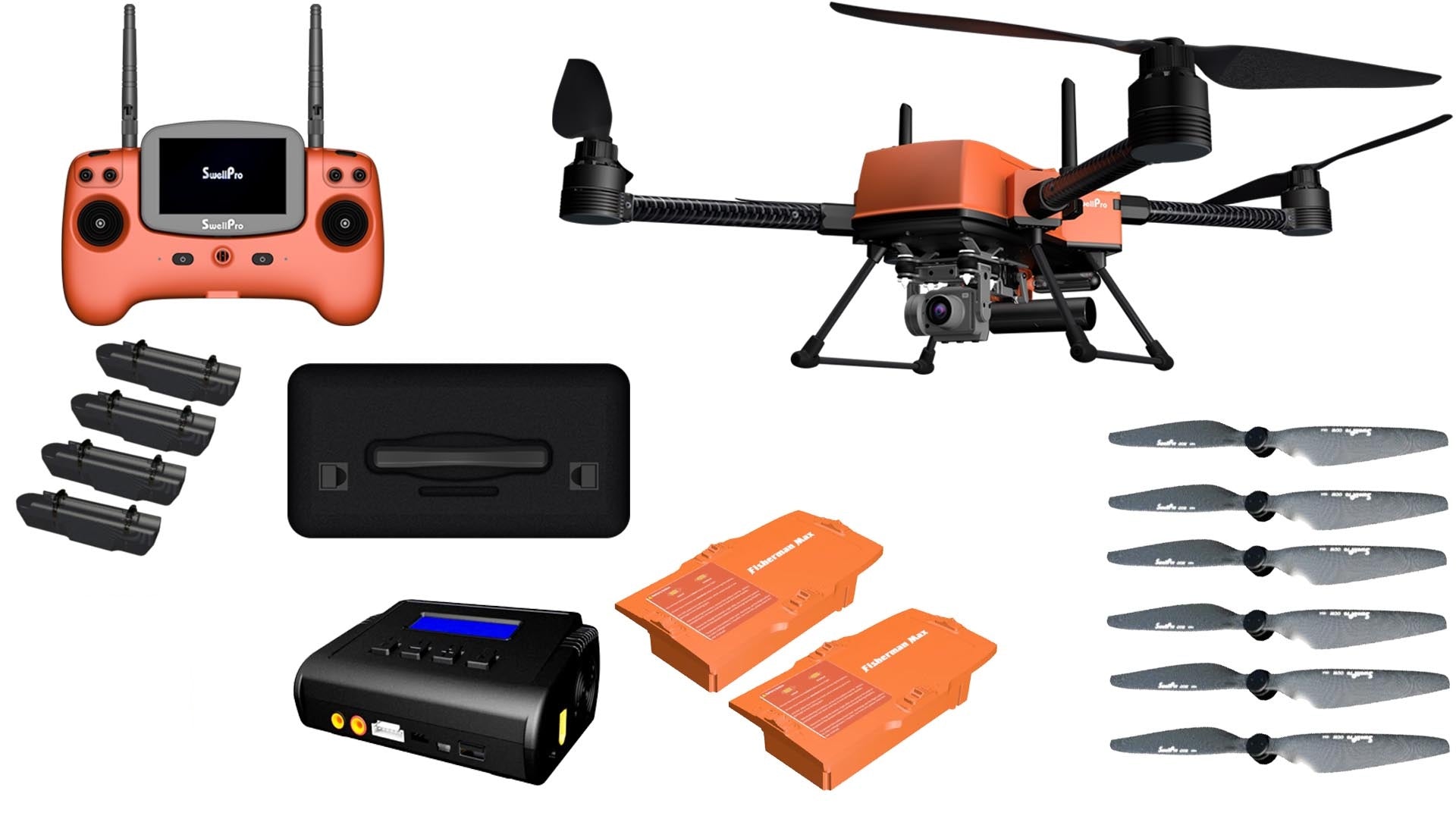

What's Included / Not Included

▶

Included:

  • 1x SwellPro Fisherman MAX FD2 Aircraft

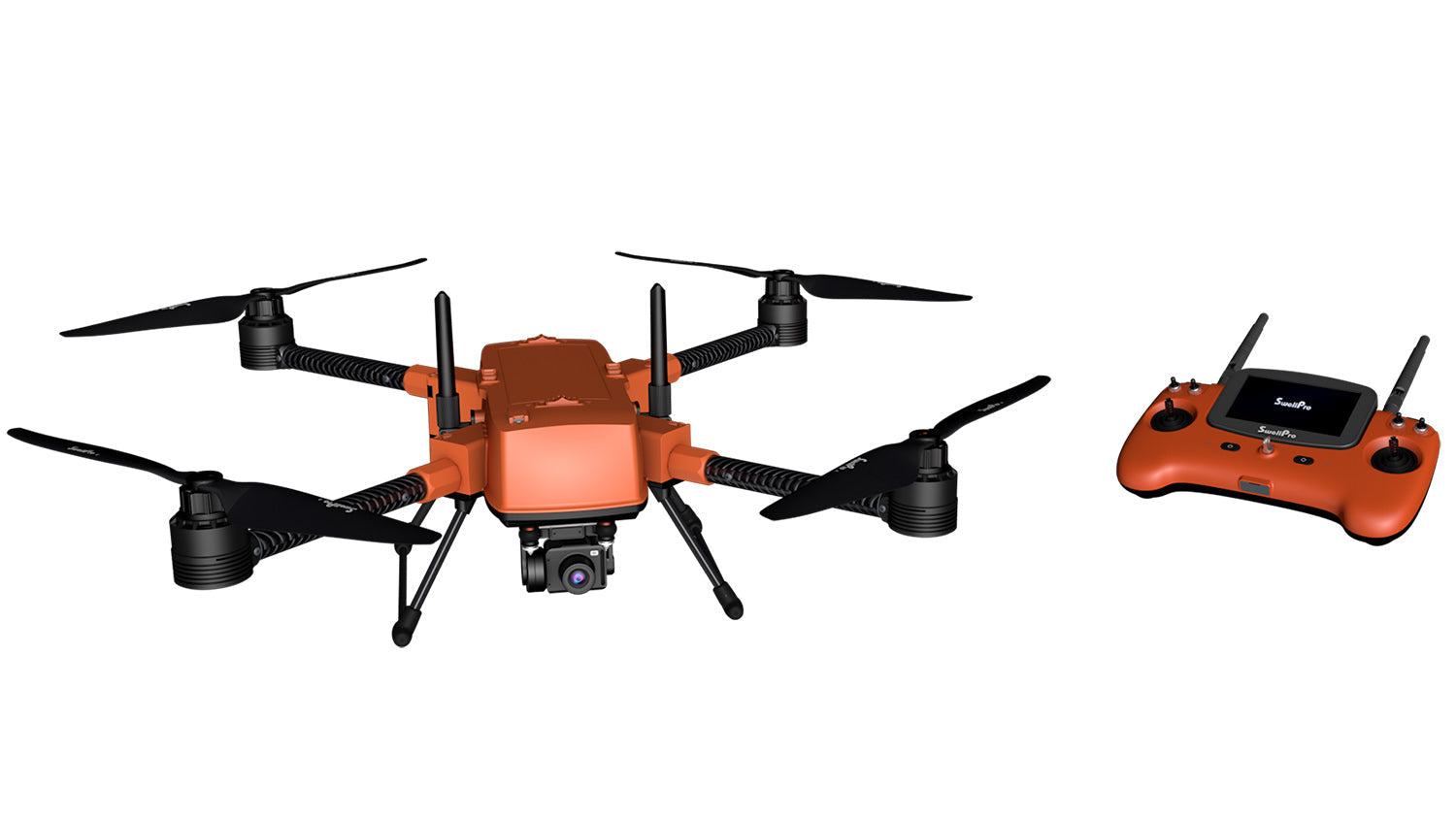

  • 1x Remote Controller with 5-inch Display (Advanced version)
  • 1x 4K Camera (Advanced version only)
  • 1x Flight Battery (4500mAh 6S LiPo)
  • 2x Pairs Carbon Fiber Propellers (#1655)
  • 1x Dual Bait Release Mechanism
  • 1x Set Floating Bars
  • 1x Battery Charger (200W)
  • 1x USB-C Cable
  • 1x Charging Cable
  • 1x Power Adapter

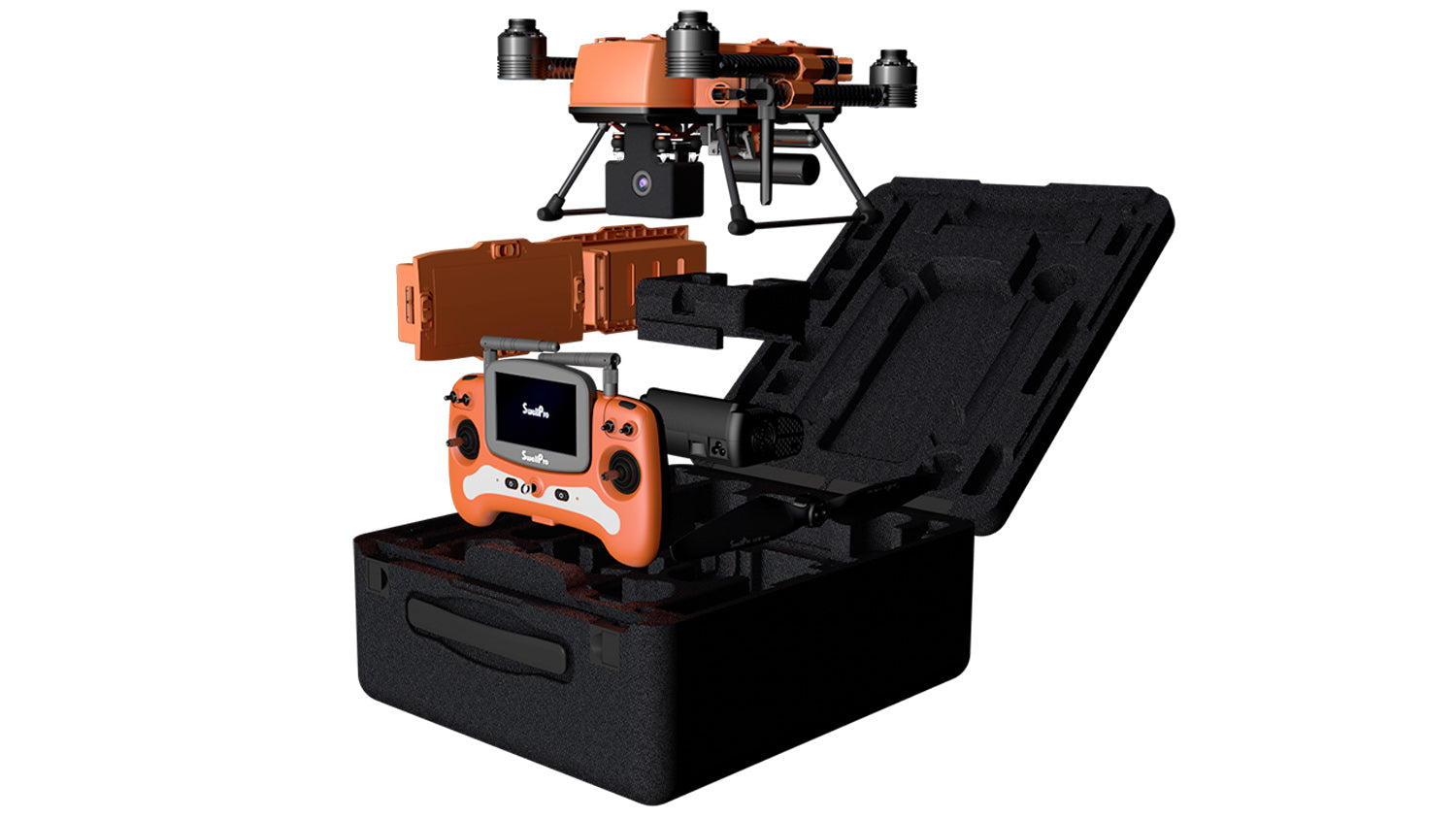

  • 1x Carry Case

NOT Included:

  • MicroSD Card (required for video recording, max 128GB)
  • Additional batteries for extended operation
  • Fishing lines and terminal tackle

Compatibility

▶

Compatible With:

  • Compatible with microSD cards up to 128GB (Class 10/UHS-1)
  • Works with SwellPro FDFly mobile app
  • Supports standard fishing lines and terminal tackle

Operating Environment:

  • Max Flight Altitude: 1 mile / 1500 m

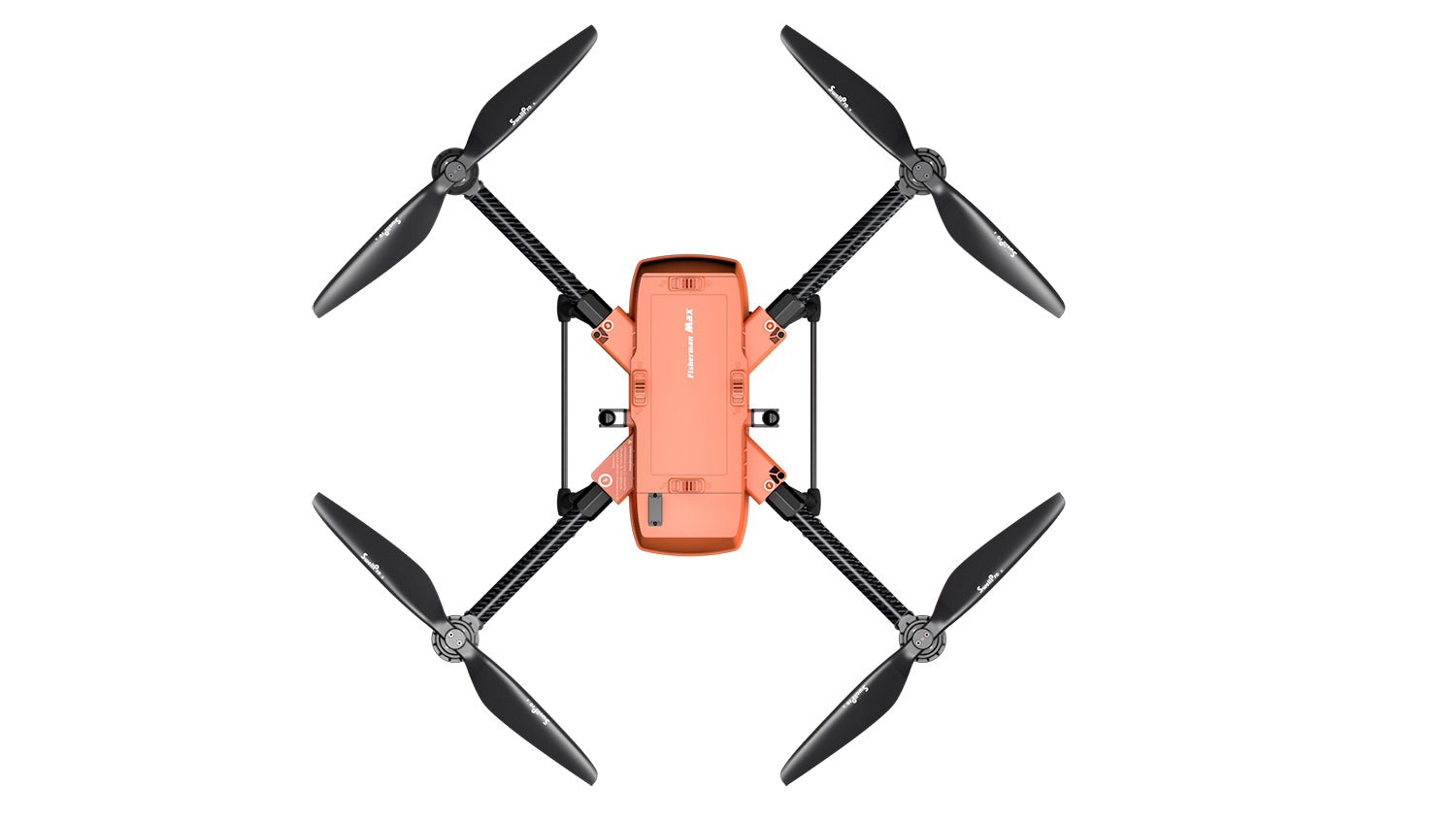

Top-down view
Top-down view

Maintenance & Care

▶
Recommended Schedule: After each use
  • Rinse with fresh water after use in salt water
  • Check propellers for damage before each flight
  • Calibrate compass when changing flying locations
  • Store battery at 50% charge for long-term storage

Frequently Asked Questions

▶
How long does the battery last?
Flight time is up to 28 minutes with no payload in ideal conditions. When carrying maximum payload (8 lbs), expect 15-20 minutes. A single battery charge typically allows for 4-6 bait drops at 400-yard distance.
Can it be used in salt water?
Yes, the drone is fully saltwater-proof with an IP67 rating. All electronics are coated for corrosion resistance, and the floating system allows water landings and takeoffs if necessary.
What happens if it loses connection?
The drone features automatic return-to-home functionality that activates on low battery or signal loss. It will automatically navigate back to the takeoff point using GPS guidance.

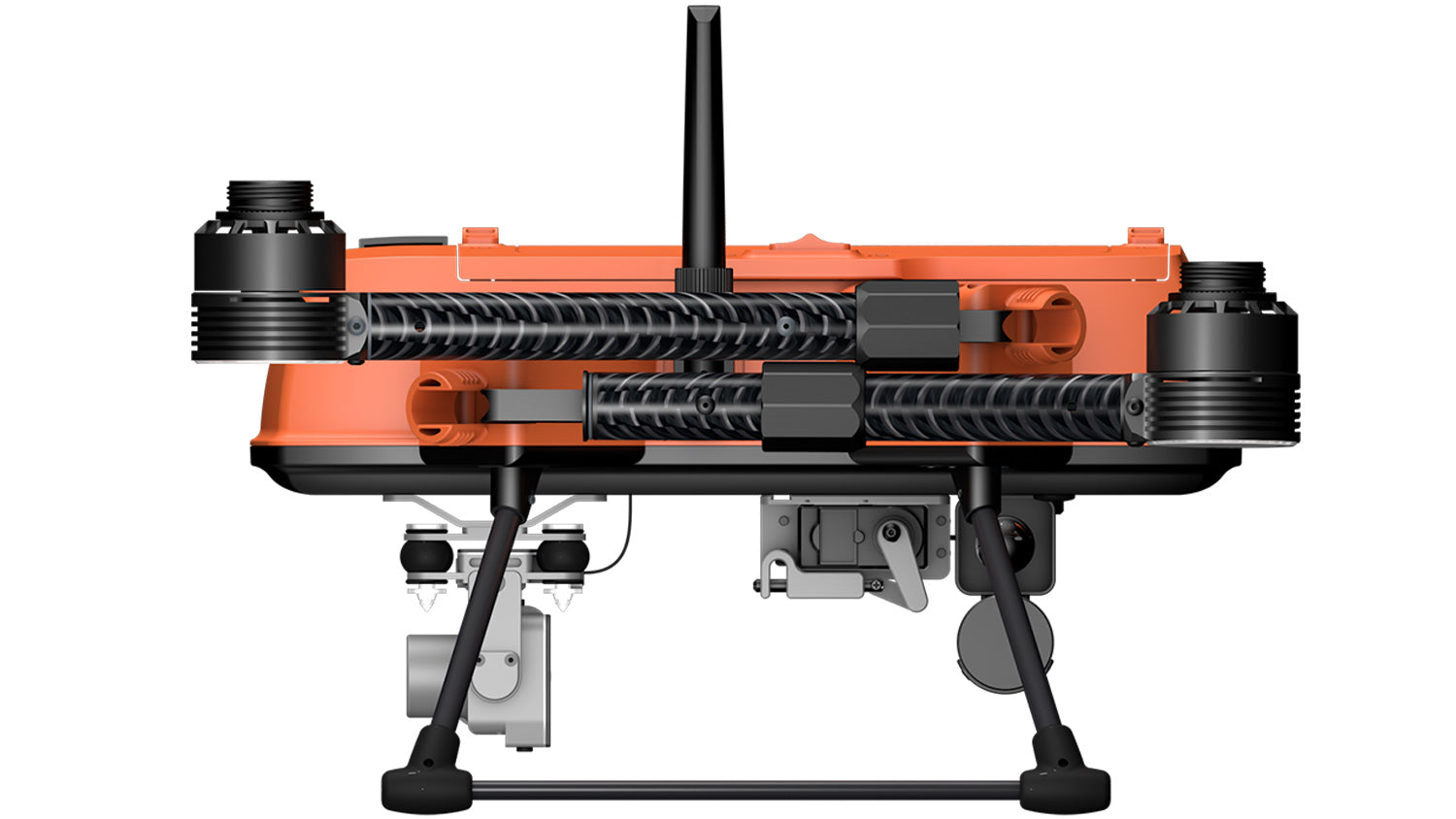

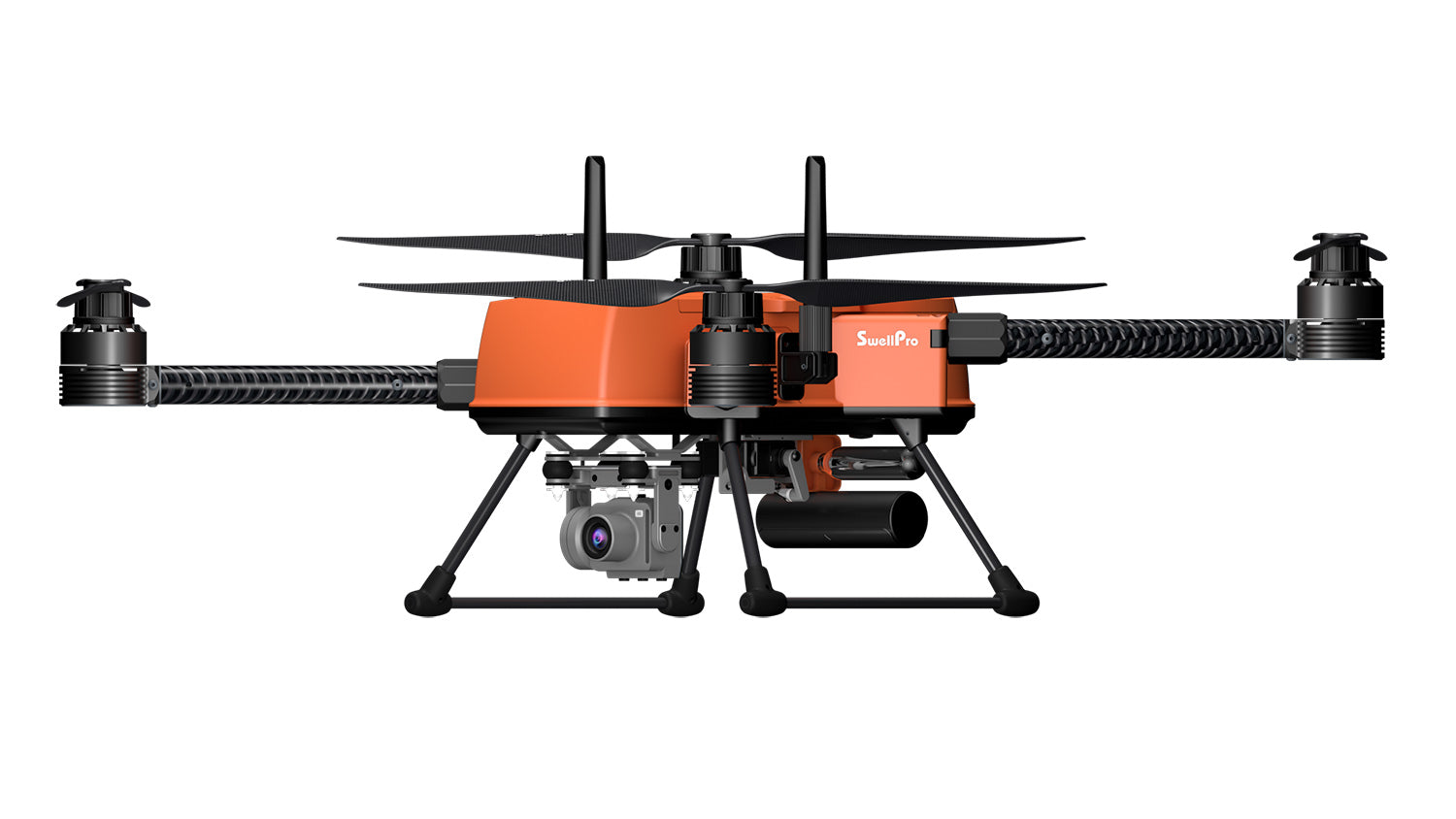

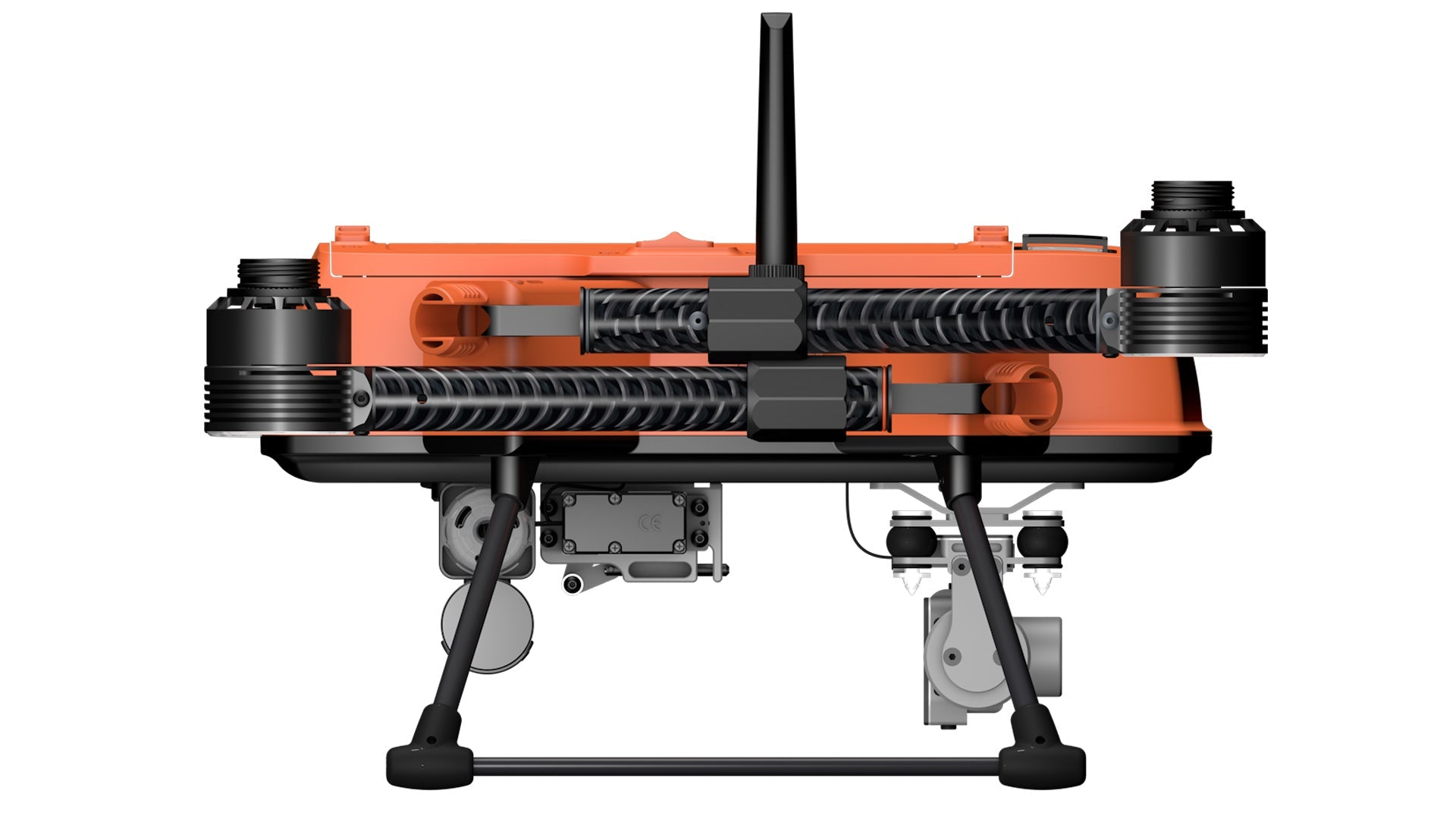

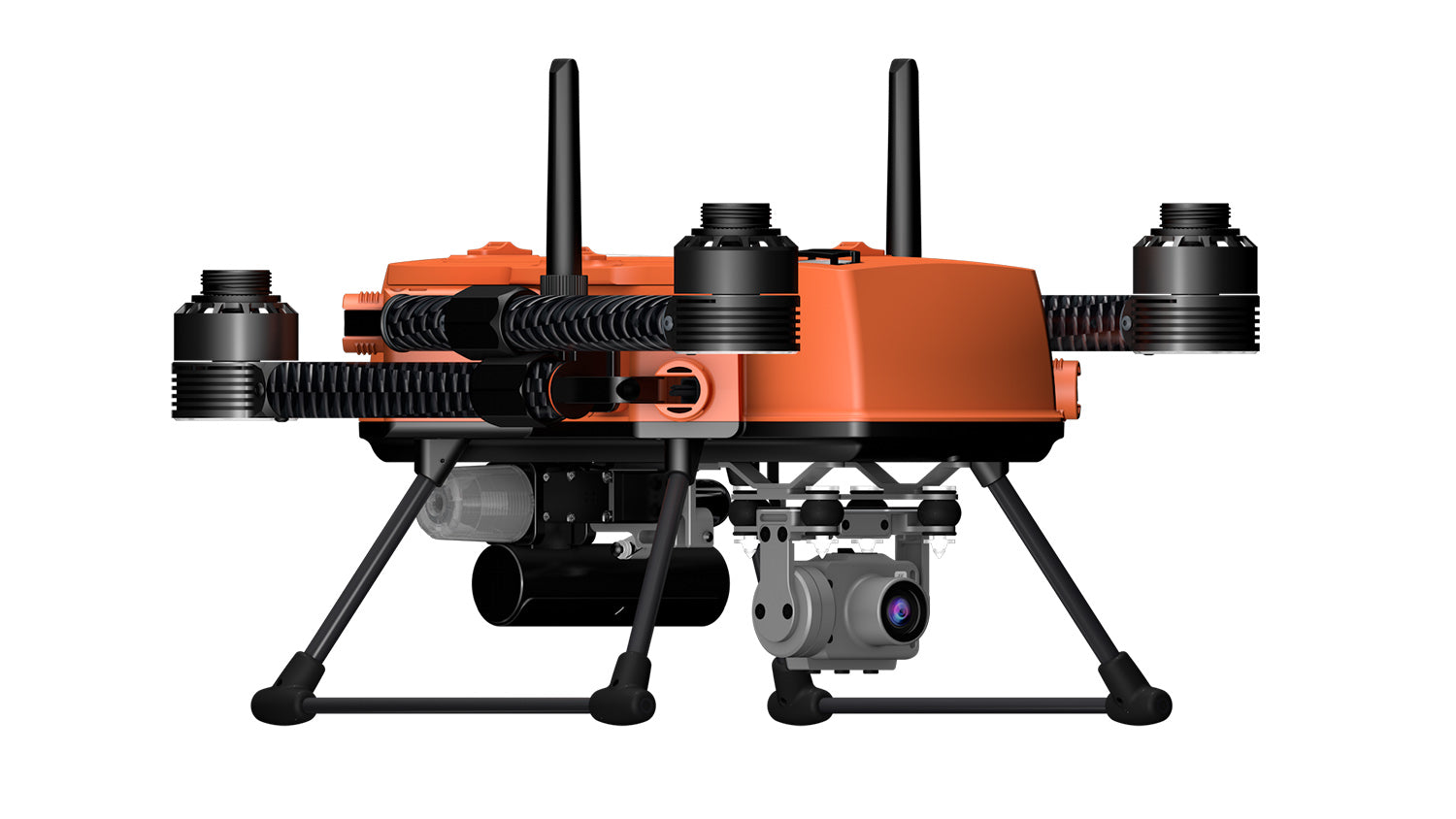

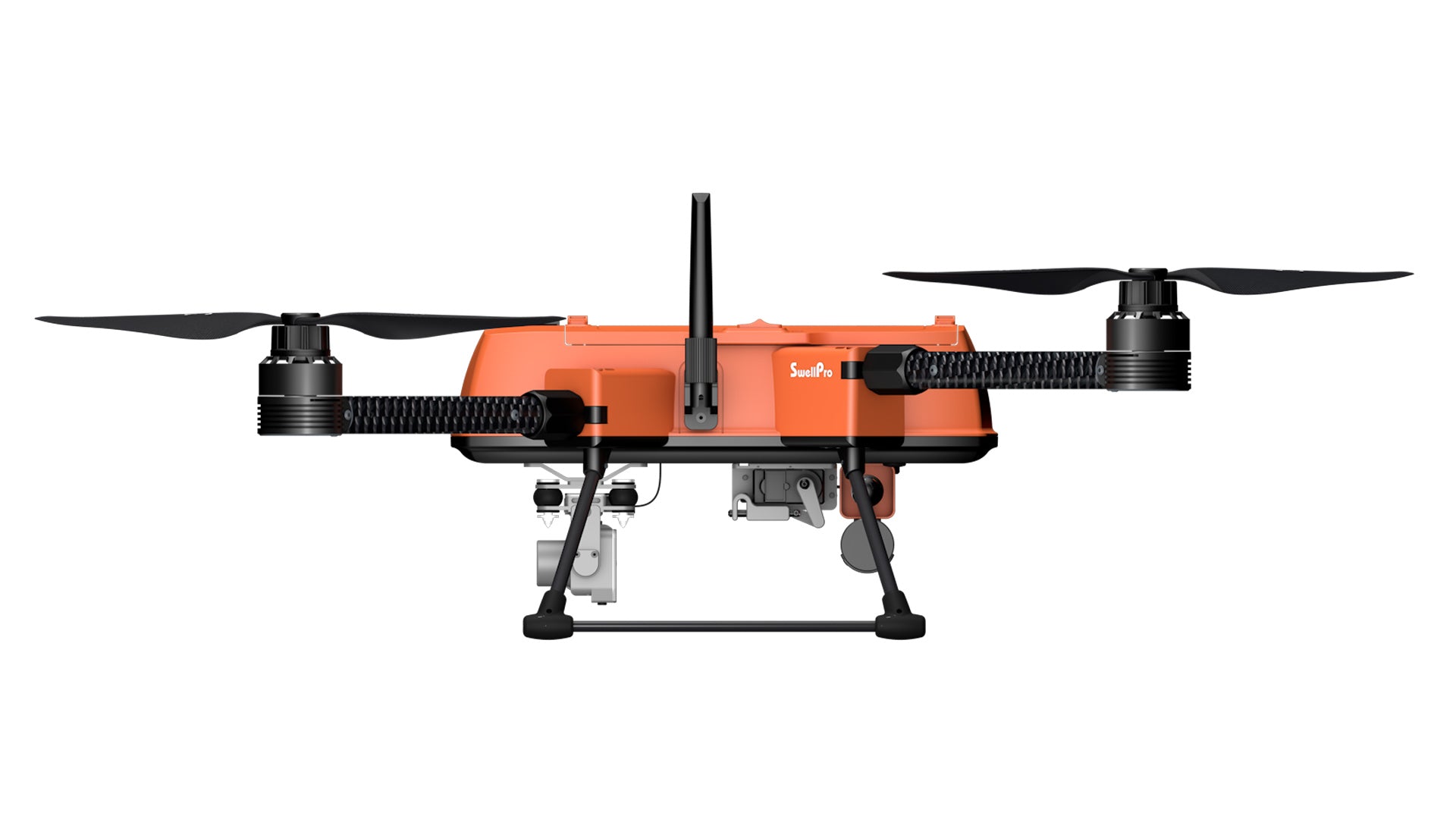

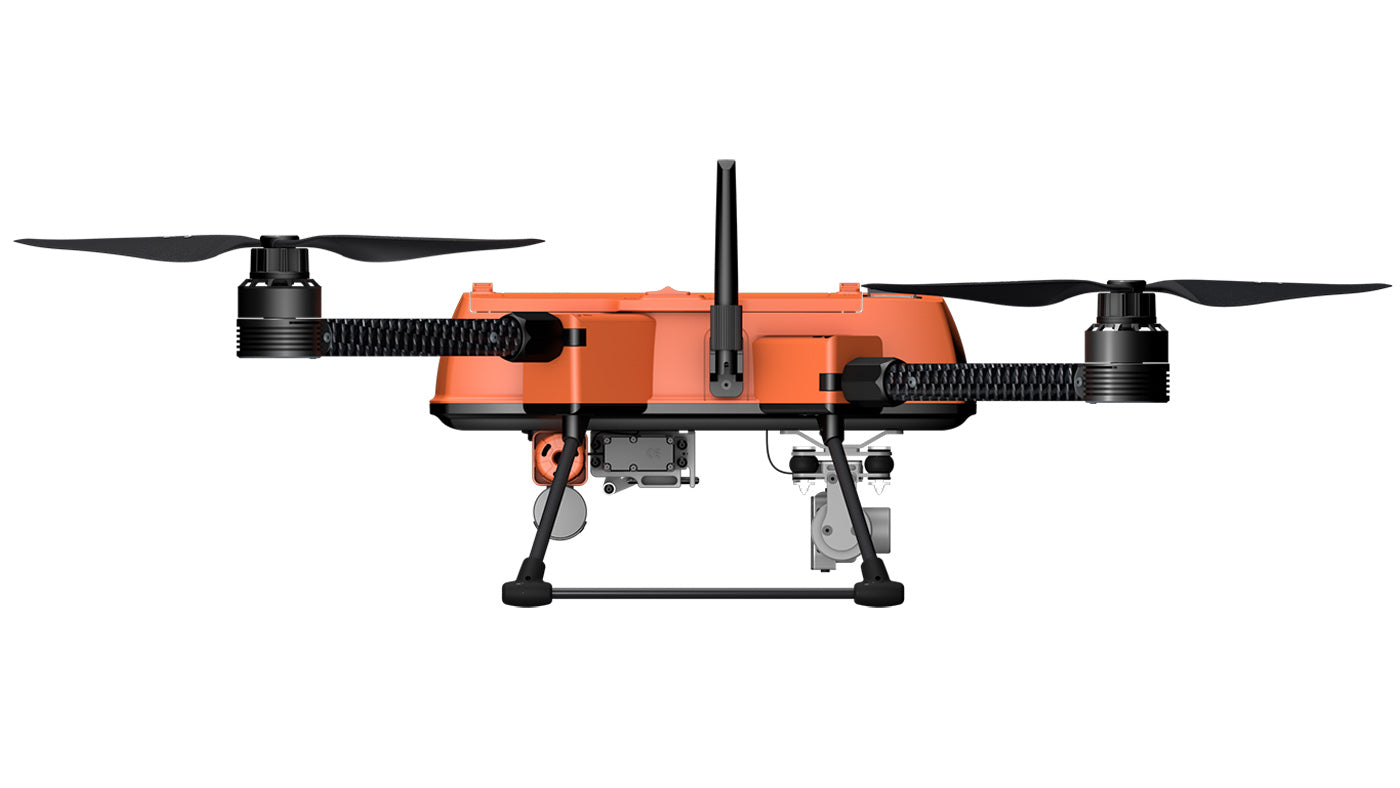

Side profile
Side profile

Resources & Downloads

▶

Official documentation and manuals are available upon request.

Product Identifiers

▶
SKU: FDM-1
Brand: SwellPro
Price: 2742.00
Product Name: SwellPro Fisherman MAX Heavy-Lift Fishing Drone
Category: Drone
Product Source: Link

Disclaimers & Source Notes

▶

About SwellPro Fisherman MAX Heavy-Lift Fishing Drone

Specifications and features documented here are based on official the manufacturer product information. Performance may vary based on conditions, configuration, and usage patterns.

Regulatory Considerations

Drone operation may be subject to local aviation regulations, registration requirements, and flight restrictions. Check with your local aviation authority before flying.

Verification Recommended

Always verify current specifications with the manufacturer before purchase. Product specifications may be updated without notice.
