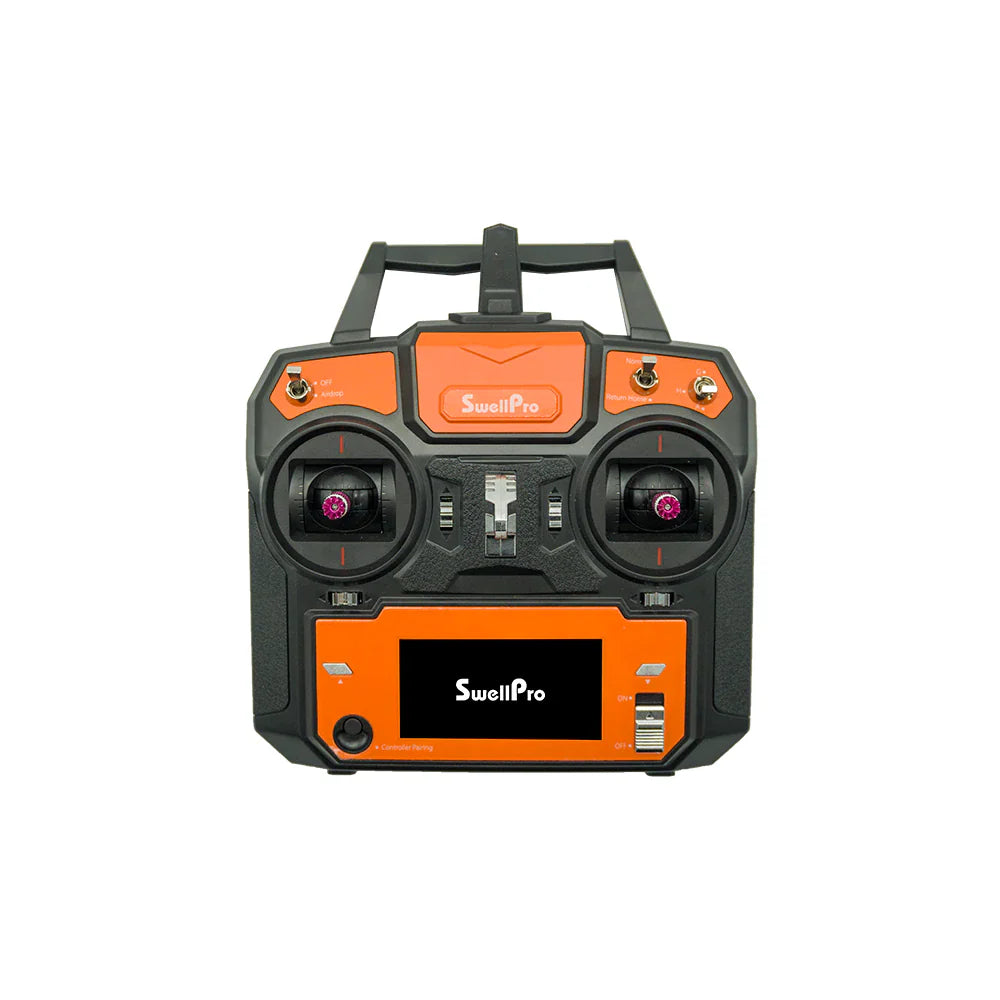

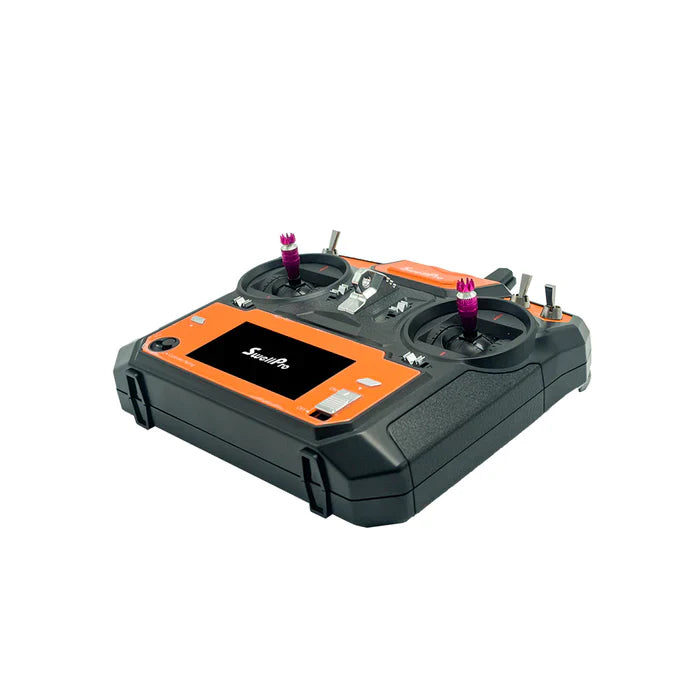

Remote Controller for SwellPro FD1 & FD1+ Fishing Drone

by SwellPro

Engineered as a critical command-and-control interface, this professional-grade remote controller delivers precise operation for SwellPro's FD1 and FD1+ fishing drone platforms. Purpose-built for reliable drone control in marine environments, it provides the essential link between operator and aircraft while maintaining strict control standards.

Featuring 6 control channels and an impressive operating range of up to 1300m, this controller utilizes GFSK modulation technology with 500KHz bandwidth for stable signal transmission. The compact 174x89x190mm form factor houses sophisticated radio components delivering -92dB sensitivity and transmitter power under 20dB, ensuring reliable communication with the aircraft even at extended ranges.

Control Range: 1300m Control Channels: 6 Power System: 6V AA Battery Powered Form Factor: Compact 174x89x190mm
Included accessories
Included accessories
Included accessories
Included accessories

Specifications

Physical Specifications
Size 174*89*190mm
Weight 378g (Without battery)
Radio Specifications
Operating Frequency 2.402-2.478GHM
Bandwidth 500KHz
Modulation Type GFSK
Sensitivity -92dB
Transmitter Power < 20dB
Power System
Battery Type 6V (1.5V AA*4)
Satellite Positioning Systems GPS/GLONASS
Performance
Operating Range Up to 1300m

Technical Details

Compatibility SwellPro FD1 & FD1+ Fishing Drones
Operating Environment Not waterproof - keep protected from water exposure
Power Source User-replaceable AA batteries
Drone Weight(include battery and propellers) 2050g
Axis Diameter 450 mm
Max Ascend Speed 4 m/s
Max Descent Speed 4 m/s
Max Flight Speed 10 m/s(GPS); 22 m/s(ATTI)
Max Tilt Angle ATTI Fast Mode 25°;ATTI Slow Mode 12.5°
Max Altitude from Takeoff Point 120 m (GPS) / 1.3 km (ATTI)
Max Wind Speed Resistance 72km/h | 20 m/s | 39knot
Hovering Accuracy ±0.5m
Max Flight Time 28 mins (no wind & no load); (approx. 15 mins with 1.0kg, approx.12 mins with load of 1.5kg)
Max Flight Distance 1.6 km
Max Payload Capacity 2.0 kg
Motor #3509/740Kv
ESC 40A (flux)
Propeller #1242 carbon fiber quick release propellers
Working Temperature -10℃ ~ 40℃
Charging Time 90 minRemote ControlWeight: 378 g (without battery)
Band Wide 5000 KHz
Coding Mode GFSKEffective Distance: 1.3 km (No interference, open area)

What's Included / Not Included

Included:

  • 1x Remote controller unit

NOT Included:

  • 4x AA 1.5V batteries (required for operation)
  • Charging accessories
  • Connection cables

Resources & Downloads

Official documentation and manuals are available upon request.

Product Identifiers

SKU: UDSP052
Brand: SwellPro
Price: 128.89
Product Name: Remote Controller for SwellPro FD1 & FD1+ Fishing Drone
Category: accessories
Product Source: Link
