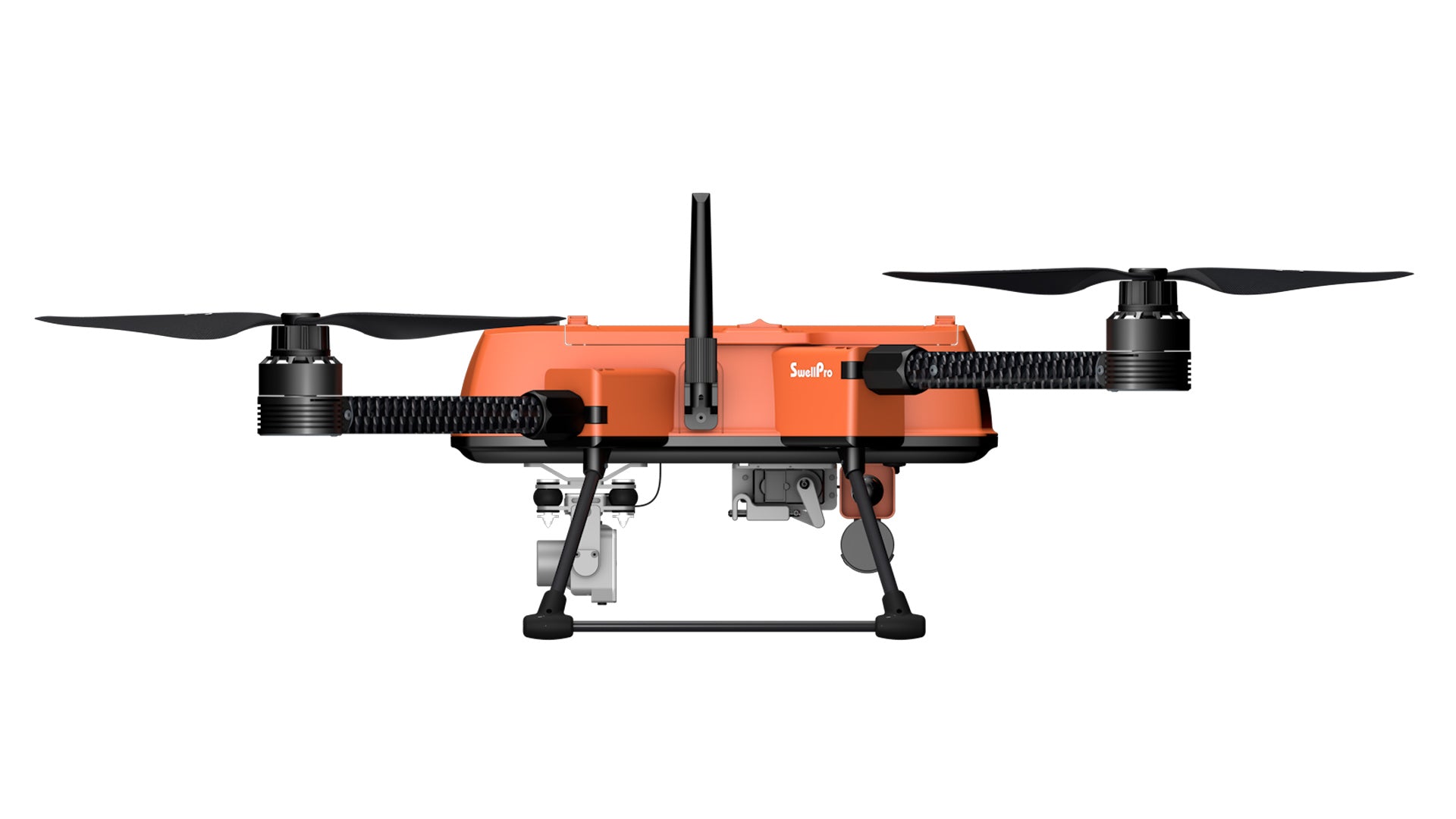

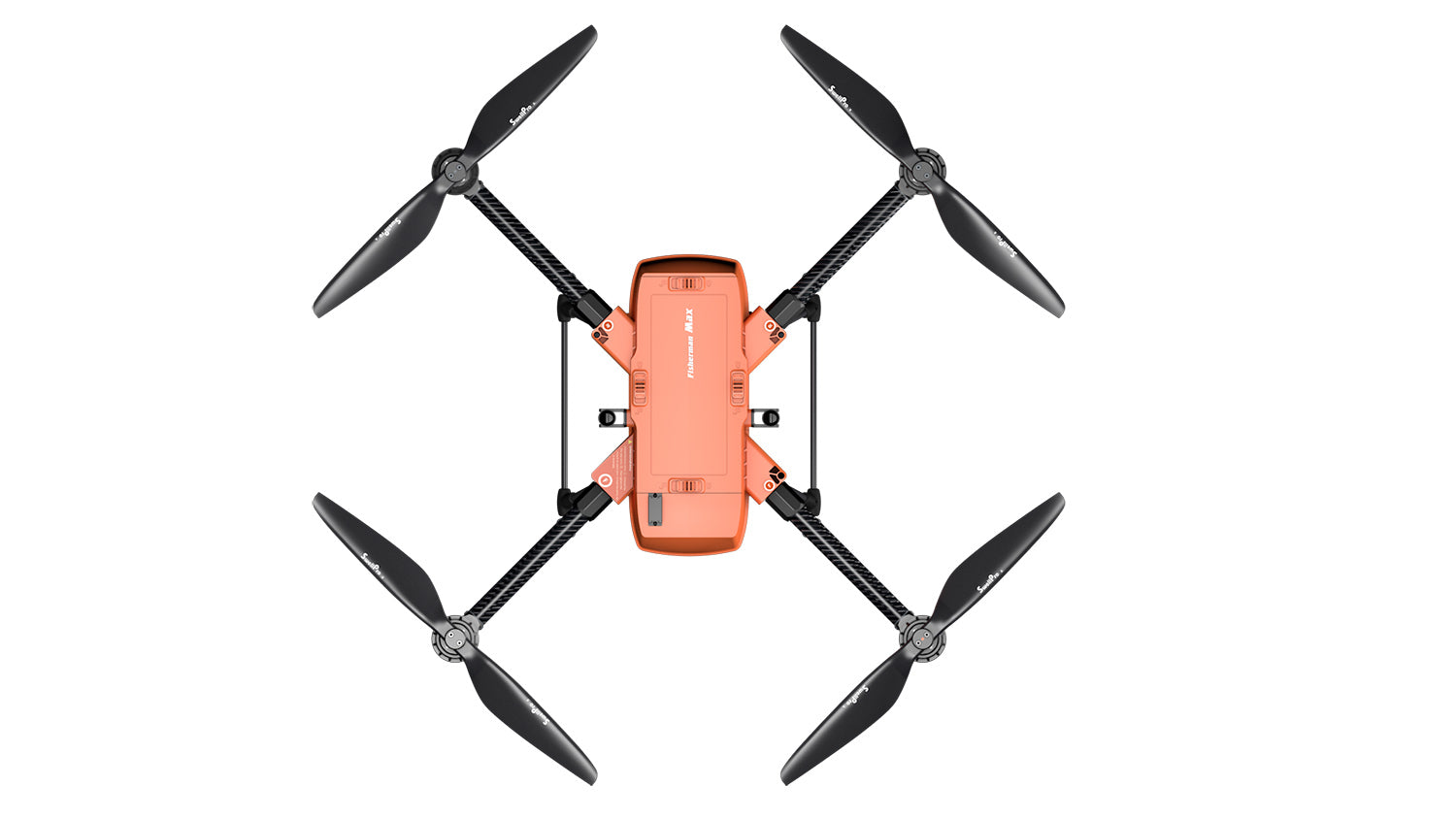

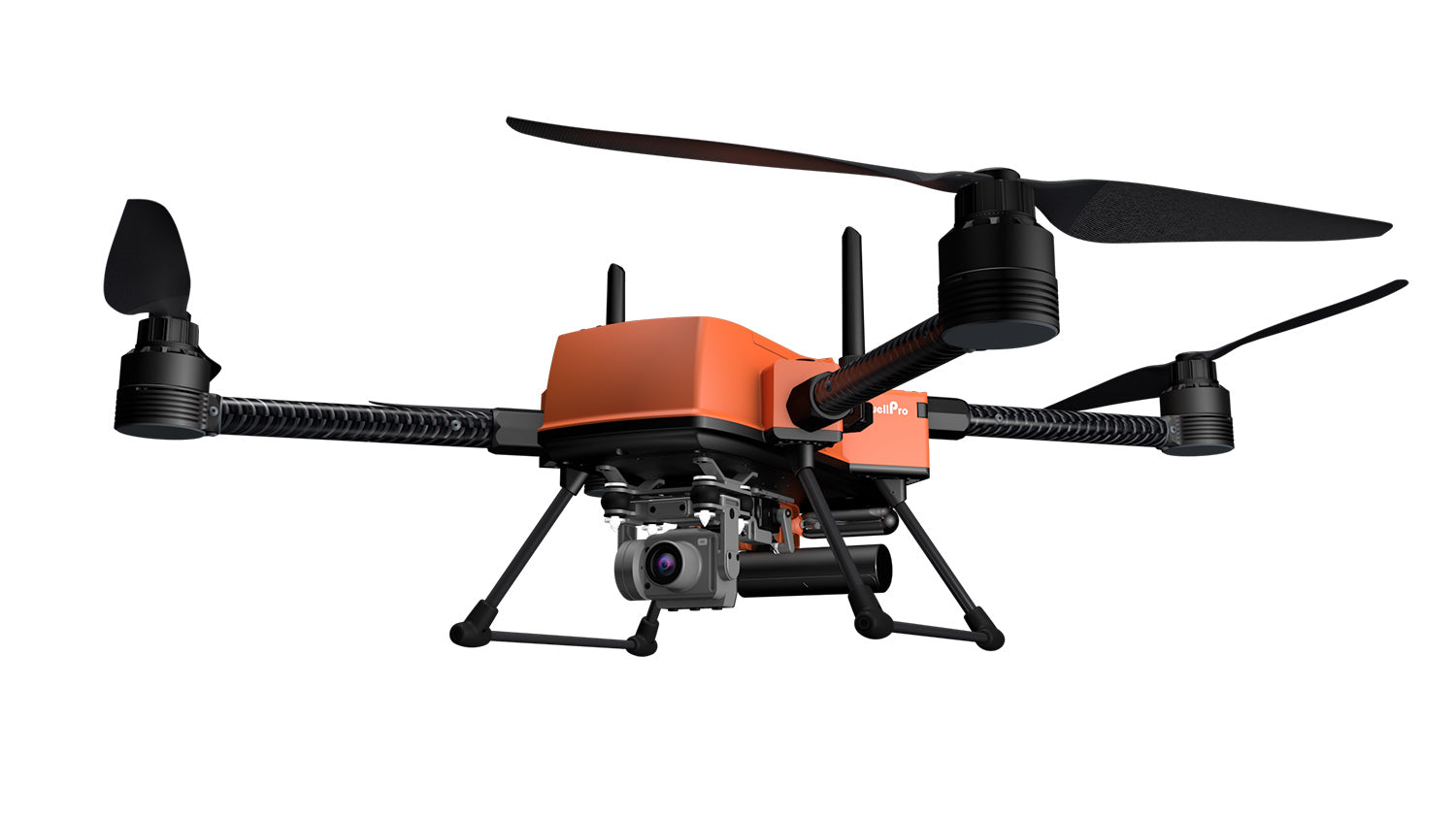

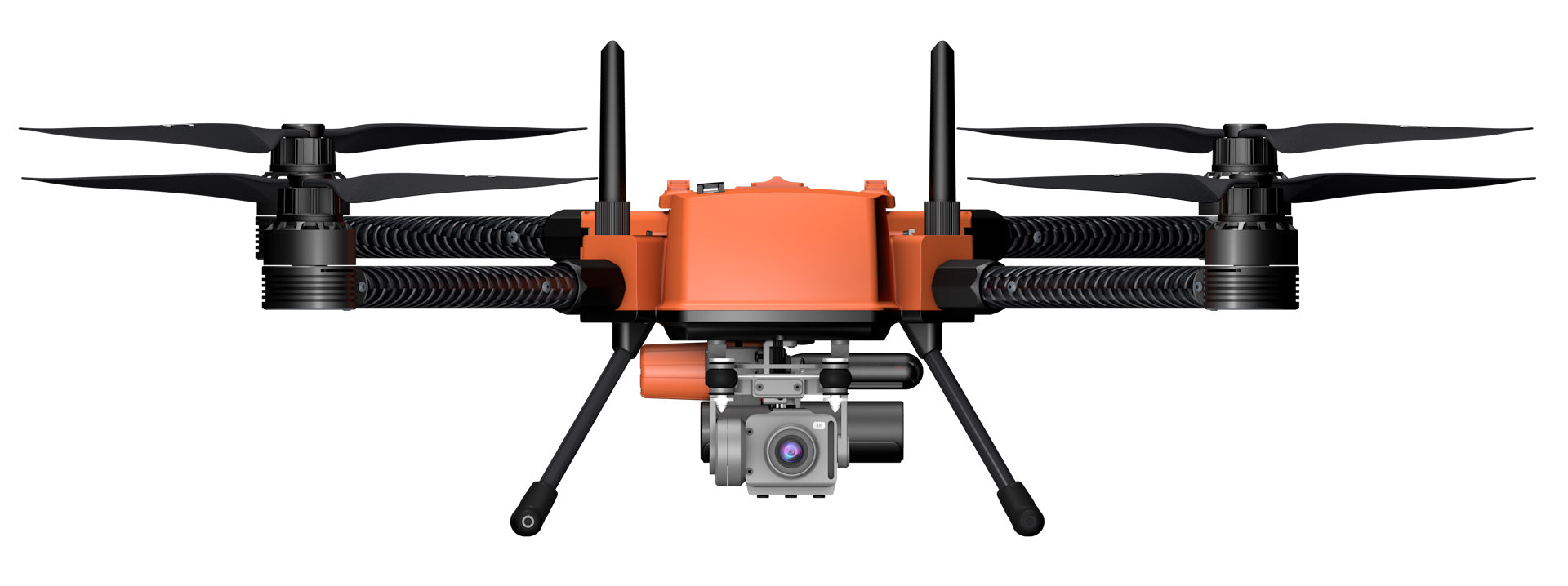

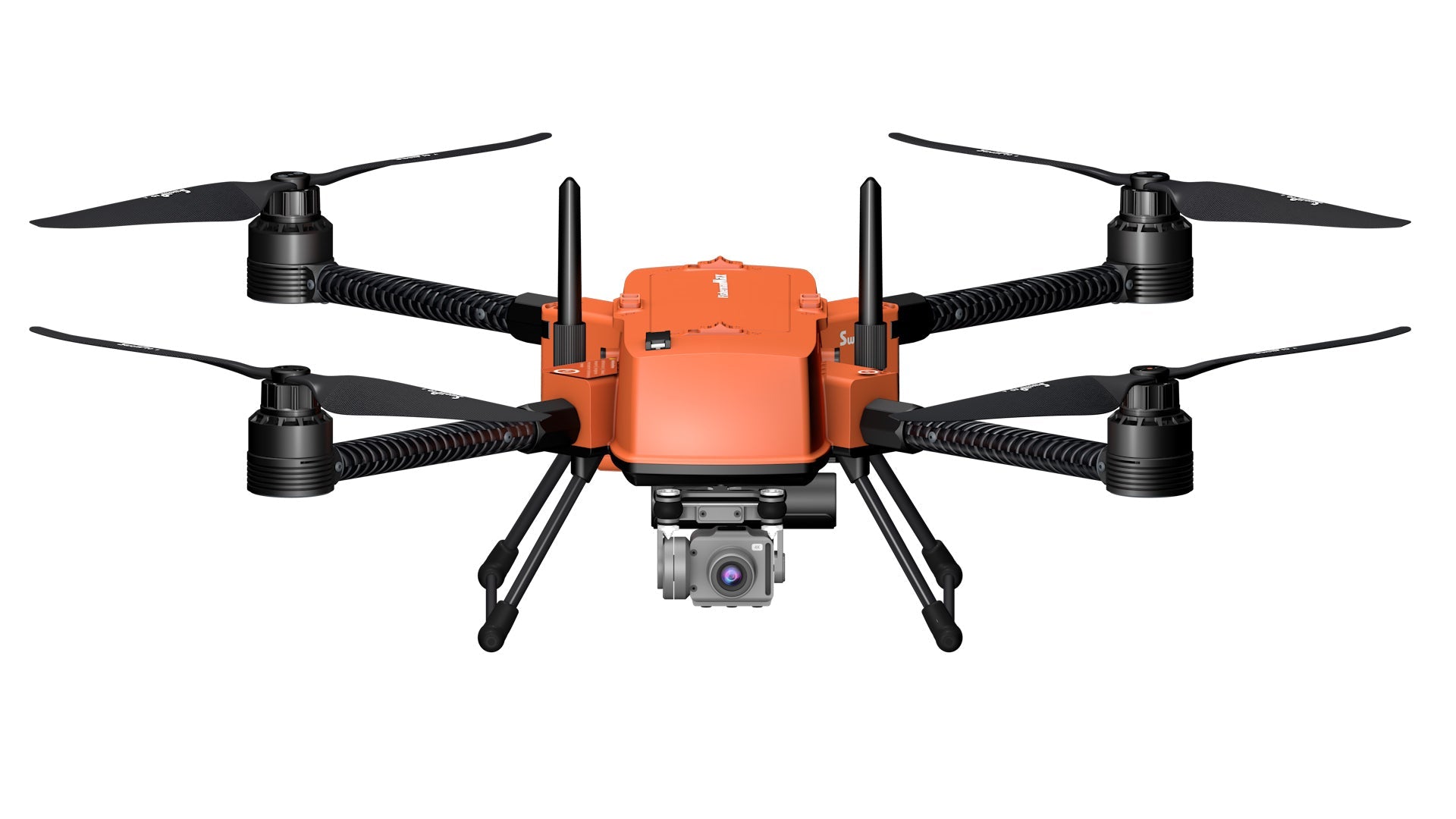

SwellPro Fisherman Max FD2 Waterproof Fishing Drone | Professional Marine UAV Platform
underwater-drone
Flight time
Drone weight (including batter…
SwellPro Fisherman Max FD2 Waterproof Fishing Drone | Professional Marine UAV Platform
SwellPro Fisherman Max FD2 Waterproof Fishing Drone Professional Use System Integration Ready The SwellPro Fisherman Max FD2 is a waterproof aerial platform designed to support controlled payload deli
Quick Facts
Flight time
up to 28 mins ( no wind & no load)
Drone weight (including battery)
8.3 lbs / 3.78 kg
Size (w/o propeller)

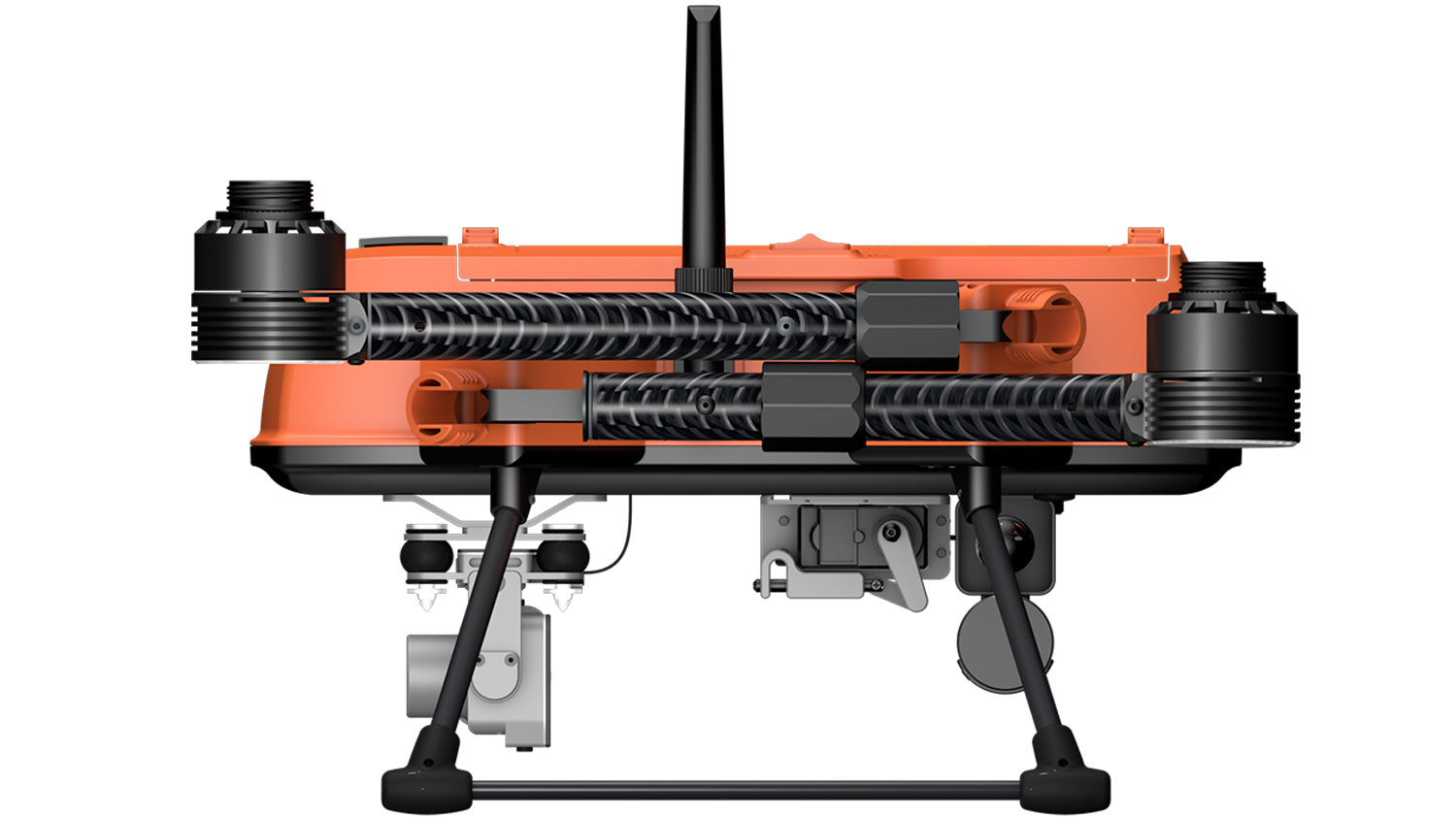

unfold: 20*20*7.5 inch / 522*522*192 mm ; fold: 12*10.5*7.5 inch / 306*266*192 mm
Max ascend speed
7 mph / 3 m/s
Key Features
- ✓ Integration testing is recommended prior to operational use, particularly when introducing non-standard payloads
- ✓ Specifications: Aircraft: Waterproof rating: IP67 Drone weight (including battery): 8
- ✓ 78 kg Size (w/o propeller): unfold: 20*20*7
Key Capabilities
Professional Grade
Built for professional use and demanding environments
Advanced Technology
Latest technology and innovative features integrated
Reliable Performance
Proven performance and consistent operation
Product Overview
What You're Getting
Complete Package
- Full product unit with all standard components
- Complete official documentation
- Professional-grade accessories included
- Setup and operation guidelines
Quality Assurance
Professional Standards
- Official specifications only
- No performance promises beyond specs
- Source-governed data accuracy
- Professional compliance documentation
Detailed Specifications
Click on categories to expand specifications
Waterproof ratingIP67
Drone weight (including battery)8.3 lbs / 3.78 kg
Size (w/o propeller)unfold: 20*20*7.5 inch / 522*522*192 mm ; fold: 12*10.5*7.5 inch / 306*266*192 mm
Max ascend speed7 mph / 3 m/s
Max descent speed4.5 mph / 2 m/s
Max flight speedATTI: 45 mph / 20 m/s ; GPS: 22 mph / 10 m/s
Max tilt angle25°
Max flight altitude1 mile / 1500 m
Max flight distance1 mile / 1500 m
Max image transmission distance0.7 mile / 1000 m
Max payload capacity7 ~ 8 lbs / 3.2 ~ 3.6 kg
Flight timeup to 28 mins ( no wind & no load)
Max wind speed resistance40 mph / 18 m/s / 35 knots
Hovering precision±1.6 feet / ±0.5 m
Satellite positioning systemGPS/Galileo
Motor4114 - 400Kv
ESC40A
Propellers#1655 carbon fiber
Operation frequency2.405 - 2.475 GHz | 5.725-5.825 GHz
Transmitter power (EIRP)<33 dBm (FCC), <20 dBm (CE) | <33 dBm (FCC), <14 dBm (CE)
Working temperature14℉ ~ 104℉ / -10℃ ~ 40℃
CertificationsCE/FCC/ROHS/RCM
Weight1.56 lbs / 709 g
Waterproof ratingIP54
Size11*7.5*3 inch / 276*190*74 mm
Operating Frequency2.405-2.475 GHz; 5.725 - 5.825 GHz
Transmitter Power (EIRP)2.405-2.475GHz: <26 dBm (FCC), <20 dBm (CE)
Latency20 ms
Battery3000mAh
Working time4 hours
Charging time3 hours
Power input5V/2A USB-C
Screen size5 inch
Screen resolution800*480 px
Screen brightness500 cd/m2
Aspect ratio16:9
LanguageEnglish
Working temperature14℉ ~ 104℉ / -10℃ ~ 40℃
Weight1.49 lbs / 680 g
Waterproof ratingIP54
Size11*7.5*3 inch / 276*190*74 mm
Operating Frequency2.405-2.475 GHz
Transmitter Power (EIRP)2.405-2.475GHz: <26 dBm (FCC), <20 dBm (CE)
Latency20 ms
Battery3000 mAh
Working time9 hours
Charging time3 hours
Power input5V/2A USB-C
Screen typesingle-color text display
Screen Size3.6 inch
LanguageEnglish
Working temperature14℉ ~ 104℉ / -10℃ ~ 40℃
Capacity4500 mAh
Voltage22.2V
Type6S LiPo
Size8.6*4.7*2.5 inch / 219*119*65 mm
Weight2.8 lbs / 1255 g
Working temperature32℉ ~ 104℉ / 0℃ ~ 40℃
Charging Time80 mins
Max Charging current8A
Input100 - 240V
Output25.2V
Max charging power200W
Supported battery types and cell6S LiPo
Size5.6*4*2.4 inch / 143*100*60 mm
Power cable3.9 feet / 1.2 m
Charging cable1.6 feet / 0.5 m
Weight1 lbs / 454.6 g
Working temperature32℉ ~ 140℉ / 0℃ ~ 60℃
Type AUSA, Canada, Mexico & Japan
Type BEurope, South America & Asia
Type GUnited Kingdom, Ireland, Malta & Singapore
Type IAustralia & New Zealand

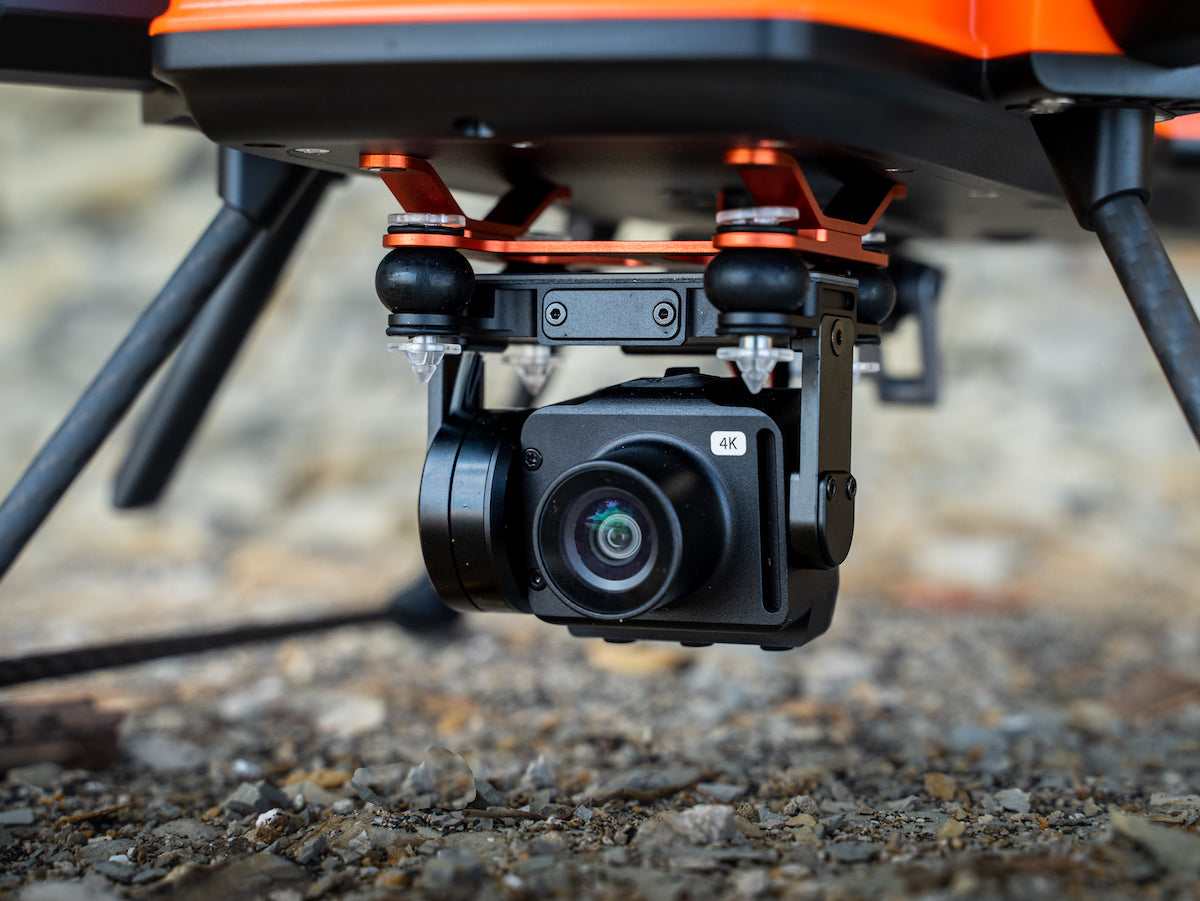

Waterproof ratingIP67
Stabilization1-axis (tilt)
Tilt range-90° to 0°
Weight0.38 lbs / 176.5 g
Size3.1*2.7*2.7 inch / 79*69*70 mm
Image sensorSONY IMX377
LensF4.53mm f/2.65, FOV: 92.6°
ISO range100 - 3200
Shutter speed16 - 1/16000 s
Video resolution4K:30fps | 2.7K:60fps | 1080P:120/60/30fps | 720P: 240/120/60fps
Photo resolution4000*3000 (4:3), 3840*2160 (16:9)
Max video bitrate60 Mbps
Photo formatJPEG / DNG (RAW)
Video formatMP4 /MOV
Supported memory cardmicroSD card with a maximum capacity of 128GB, write speed ≥ 60 MB/s, recommend using Class 10 or above & UHS-1 rating
Working temperature14℉ ~ 104℉ / -10℃ - 40°C

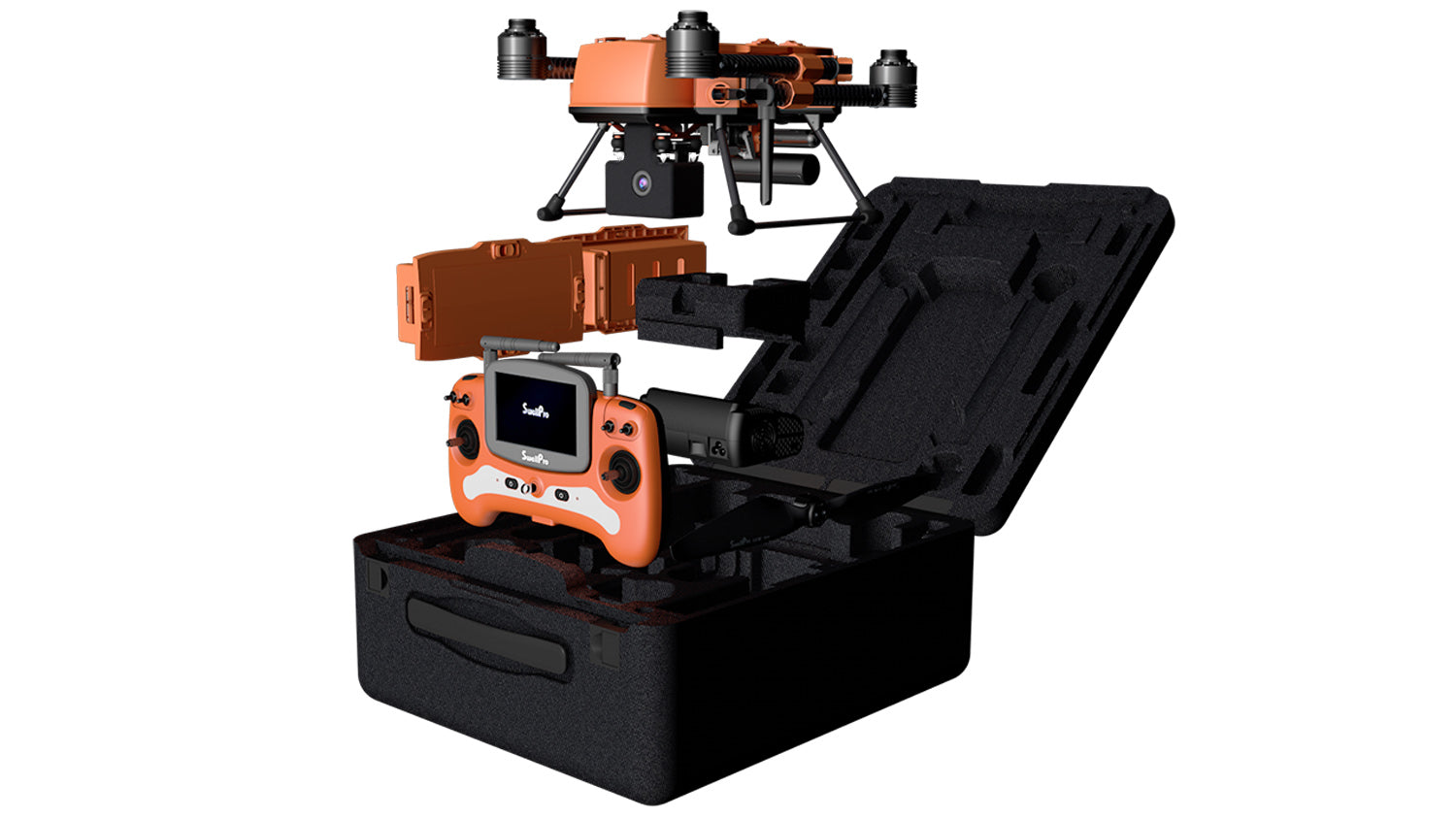

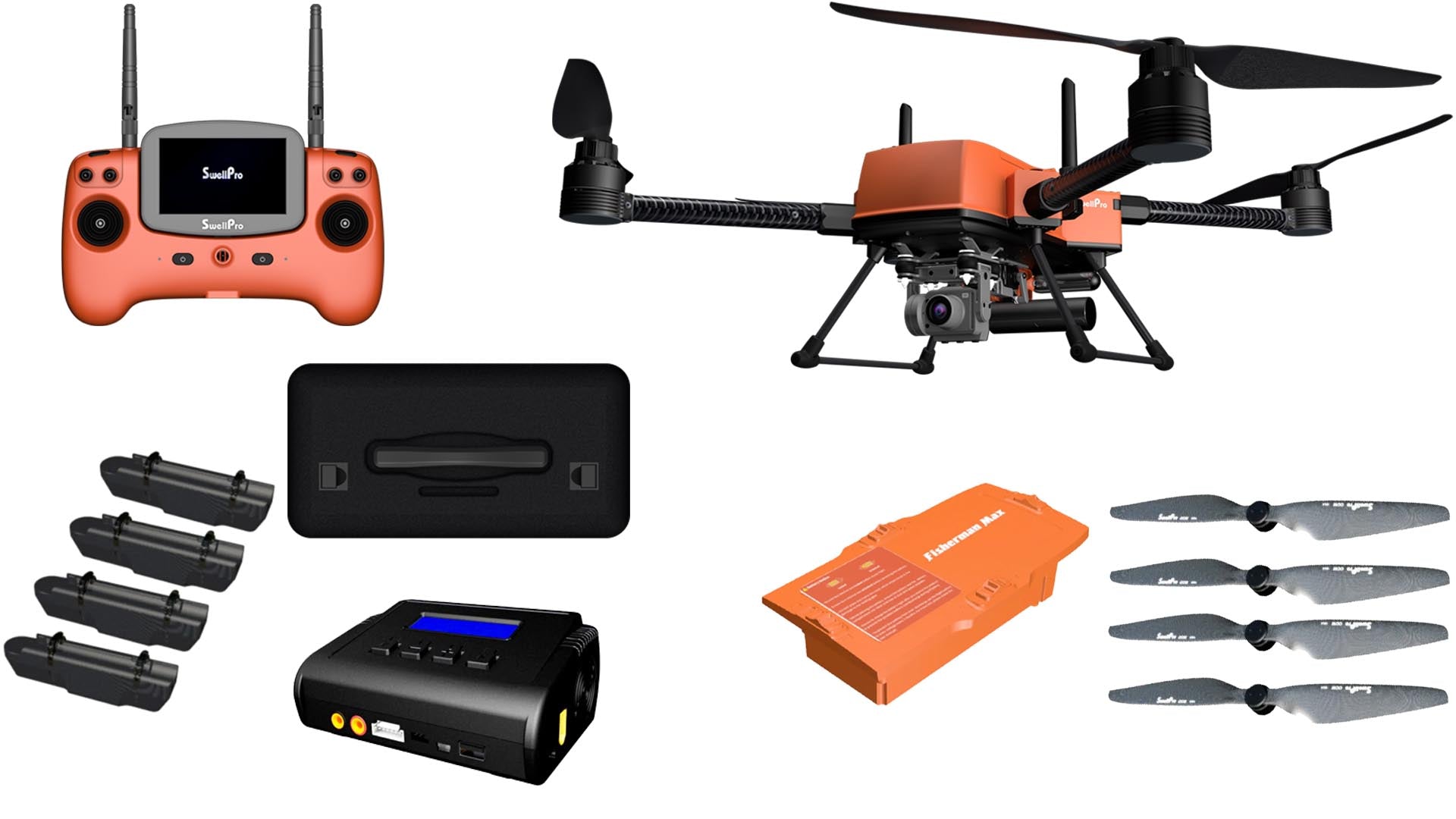

What's Included
Included (as listed)
- Main product unit
- Standard accessories (as listed)
- Documentation and guides
Not Included
- Additional optional accessories
- Extended warranties
- Custom modifications
System Requirements & Compatibility
Operating Environment
Professional and institutional use environments
Compatibility
Compatible with standard accessories and components
Power Requirements
As specified in official product documentation
Resources & Downloads
- Official Documentation: Available upon request
- User Manual: Available upon request
- Technical Specifications: Available upon request
- Setup Guides: Available upon request
Certifications & Compliance
CE/FCC/ROHS/RCM
