TheRoboCraft

PRODUCT DOCUMENTATION

Lawn Mowers

Husqvarna Automower® 430X

by Husqvarna

Transform your lawn maintenance with advanced autonomous mowing technology designed for medium to large residential properties. This flagship X-line model combines GPS-assisted navigation with robust all-terrain

Ideal for suburban homeowners with medium to large properties (0.4-0.8 acres) who value automated maintenance solutions. Perfect for tech-savvy users with complex lawn layouts featuring slopes and multiple zones who appreciate smart home integration and remote monitoring capabilities.

Coverage Area: 3,200 m² (0.8 acres) Maximum Slope: 45% Runtime: 145 minutes per charge Noise Level: 58 dB(A) Charging Time: 50 minutes

Capabilities

▶

Automatic passage handling through narrow spaces

Weather-adaptive mowing schedule adjustment

Spiral cutting pattern for spot treatment of longer grass areas

Voice control through smart home integration

LED headlight illumination for night operation

Feature detail

Specifications

▶

Cutting System ▶

Cutting Method 3 pivoting razor blades

Cutting Width 24 cm

Cutting Height Min 20 mm

Cutting Height Max 60 mm

Height Adjustment Electric

Dual Cutting Direction Yes

Skid Plate Yes

Charging system Automatic Overall dimensions - Compare specifications across different product articlesOverall dimensions: KRArt no: 967 85 28‑33

Maximum Adjustable Cutting Height 6.1 Centimeters

Coverage & Performance ▶

Working Area Capacity 3,200 m² (0.8 acres)

Maximum Slope Inside 45%

Maximum Slope at Boundary 15%

Maximum Active Time 24 hours

Typical Mow Time per Charge 145 minutes

Great For -- Larger lawns, up to .8 acres

Power System ▶

Battery Type Li-ion

Battery Capacity 5.0 Ah

Charging Current 4.2A

Charging Time 50 minutes

Monthly Energy Consumption 18 kWh

Power Supply Built-in

Power Source Battery Powered

Physical Specifications ▶

Weight 13 kg (28.7 lbs)

Length 72 cm

Width 56 cm

Height 31 cm

Color Grey

Sound Level 58 dB(A)

Technical reference

Technical Details

▶

Protection Rating IPX4

Navigation System GPS-assisted

Boundary Type Physical wire

User Interface Keypad and display/App

Display Type 2.8" Monochrome Graphical Display

App Control Automower® Connect

Smart Home Integration Amazon Alexa, Google Home

Theft Protection GPS tracking, PIN code, alarm

Weather Resistance All-weather operation capability

Índice de protección (Código IP) IPX4

Display MonoChrome Graphical Display 2,8”

Connectivity Bluetooth®, Cellular

App controlled Automower® Connect

Firmware Update Dealer Service Safety - Compare specifications across different product articlesSafety: KRArt no: 967 85 28‑33

Sistema contra robos por GPS Yes

GeoFence Yes

PIN code Yes

Alarm Yes

Lift sensor Yes

Tilt sensor Yes

Material Plastic

Operation Mode Automatic

Assembly Required NoSee moreAbout this item

DIY Installation Set up your Husqvarna robot mower with the s

Style 430X

What's Included / Not Included

▶

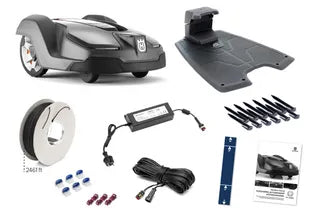

Included:

• Automower® 430X robotic mower
• Charging station
• Power supply unit
• Low voltage cable (10m)
• 6 replacement blades
• Operator's manual
• Quick guide
• Installation materials
• Measurement gauge
• Extra screws for charging station

NOT Included:

• Optional accessories sold separately
• Extended warranty (available for purchase)
• Installation services
• Wheel brushes
• Loop wire
• Stakes

Compatibility

▶

Compatible With:

• Automower® Connect app
• Amazon Alexa
• Google Home
• Automower® Terrain Kit
• Automower® House
• Automower® Wall Hanger
• Automower® Cleaning Kit
• Endurance Blades

Compatibility and ecosystem

Maintenance & Care

▶

Recommended Schedule: Regular inspection and cleaning recommended

• Weekly blade inspection and replacement as needed
• Monthly cleaning of wheels and undercarriage
• Bi-weekly boundary wire check
• Quarterly charging station cleaning
• Annual winter storage preparation
• Spring startup maintenance
• Regular software updates via app
• Battery replacement every 2-3 years
• Seasonal cutting height adjustment
• Regular GPS calibration check

Frequently Asked Questions

▶

How does it handle uneven lawns?

The mower is designed to follow lawn curvature with its large driving wheels, handling uneven surfaces effectively. It can manage slopes up to 45% and only small deep holes may cause it to get stuck.

What is the minimum passage width required?

It can handle narrow passages down to 60 cm width, thanks to its intelligent navigation system and automatic passage handling capabilities.

Does it require burying the boundary wire?

No, the wire can be laid on the ground using supplied staples. After a few weeks, it will be grown over and disappear into the grass. Optional burial at 3-10 cm depth is possible if preferred.

Resources & Downloads

▶

Official documentation and manuals are available upon request.

Product Identifiers

▶

SKU: 9678528‑45

Brand: Husqvarna

Price: $2,499.99

Product Name: Husqvarna Automower® 430X

Category: Lawn Mower

Product Source: Link

Disclaimers & Source Notes

▶

About Husqvarna Automower® 430X

Specifications and features documented here are based on official the manufacturer product information. Performance may vary based on conditions, configuration, and usage patterns.

Regulatory Considerations

Robotic mowers should comply with local noise ordinances. Some regions restrict operating hours. Check local regulations.

Verification Recommended

Always verify current specifications with the manufacturer before purchase. Product specifications may be updated without notice.
