Lawn Mowers

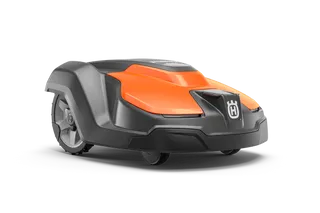

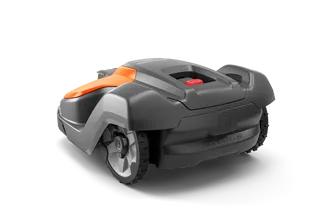

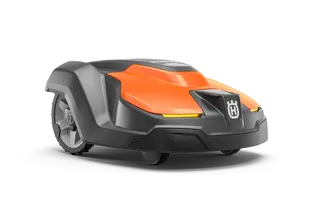

Husqvarna Automower® 520 EPOS®

by Husqvarna

Revolutionary wire-free technology transforms professional lawn maintenance with satellite-based RTK-GNSS positioning that delivers centimeter-level precision. This commercial-grade autonomous mower eliminates the need for traditional boundary wires while enabling unprecedented flexibility for complex lawn configurations.

Powered by EPOS® (Exact Positioning Operating System) technology, this innovative mower maintains virtual boundaries with 2cm accuracy across its impressive 5,000 m² (1.24 acres) coverage area. The system handles slopes up to 45% while operating at a quiet 61 dB(A), combining professional-grade performance with neighbor-friendly operation.

Coverage Area: 5,000 m² (1.24 acres) Maximum Slope: 45% (24°) Position Accuracy: 2 cm Runtime: 75 minutes Charging Time: 50 minutes Noise Level: 62 dB(A)

Capabilities

▶

Mows up to 5,000 m² on a single charge

Creates professional striped patterns with systematic cutting

Operates in rain with IPX4 weather protection

Manages multiple work areas with individual settings

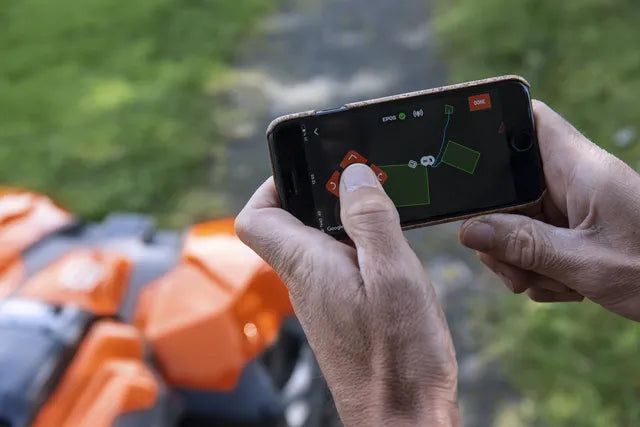

Creates temporary stay-out zones via app

Feature detail

Specifications

▶

Cutting System ▶

Cutting Method 5-blade cutting disc system

Blade Type Carbon steel razor blades

Cutting Patterns Systematic, Spiral, Spot cutting

Height Adjustment Electric via app

Cutting Width 24 cm

Cutting Height Maximum 60 mm

Cutting Height Minimum 20 mm

Dual cutting direction Yes Control - Compare specifications across different product articlesControl: AUArt no: 970 80 08‑07

Coverage & Performance ▶

Working Area Capacity 5,000 m² (1.24 acres)

Maximum Slope Inside 45% (24°)

Maximum Slope at Boundary 15%

Maximum Active Time 24 hours

Navigation & Control ▶

Navigation System EPOS (Exact Positioning Operating System)

Positioning Accuracy 2 cm

GPS System RTK-GNSS technology

Pattern Options Parallel lines, diamonds, triangles, checkerboard

Passage Handling Automatic narrow passage detection

App controlled Husqvarna Fleet Services

Power System ▶

Battery Type Li-Ion

Battery Capacity 5.0 Ah

Charging Current 2.2A

Typical Mowing Time 75 minutes

Typical Charging Time 50 minutes

Charging System Automatic

Physical Specifications ▶

Weight 13.8 kg (29.3 lbs)

Length 72 cm (28.3 inches)

Width 56 cm (22 inches)

Height 32 cm (12.2 inches)

Sound Level 62 dB(A)

Weather Protection IPX4 rated

Technical reference

Technical Details

▶

Weather Rating IPX4

App Control Husqvarna Fleet Services™

Smart Home Integration Yes

Firmware Updates FOTA (Firmware Over-The-Air)

User Interface Professional User Interface/App

Connectivity Bluetooth®, Cellular

Theft Protection GPS tracking with GeoFence

Safety Features Lift sensor, Tilt sensor, PIN code protection

Follow guide Virtual transport path

Colour Orange

Area capacity - Sports 24 2,500 m²

Skid plate Yes

Display None

Firmware Update FOTA Safety - Compare specifications across different product articlesSafety: AUArt no: 970 80 08‑07

GPS Theft tracking Yes

GeoFence Yes

PIN code Yes

Alarm High

Lift sensor Yes

Tilt sensor Yes

What's Included / Not Included

▶

Included:

• Automower® 520 EPOS® robotic mower
• Charging station
• Power supply unit
• Low voltage cable (33 ft)
• 6 extra cutting blades
• Wheel brushes
• User manual
• Quick guide
• Installation guide

NOT Included:

• EPOS® Reference Station (required, sold separately)
• Installation materials
• Boundary markers
• Additional blades beyond included set

Compatibility

▶

Compatible With:

• Husqvarna Fleet Services™ software
• Automower® Connect app
• EPOS® Reference Station
• Standard charging stations
• Original Husqvarna replacement blades
• Husqvarna wheel brushes
• Husqvarna maintenance kits

Compatibility and ecosystem

Maintenance & Care

▶

Recommended Schedule: Regular maintenance required for optimal performance

• Weekly blade inspection and replacement as needed
• Monthly cleaning of wheels and undercarriage
• Quarterly battery health check
• Bi-annual thorough cleaning and inspection
• Annual professional service recommended
• Regular software updates as released
• Seasonal cutting height adjustments
• Winter storage preparation

Frequently Asked Questions

▶

What installation requirements are needed?

Professional installation is recommended. The system requires clear sky visibility for GNSS reception and an EPOS® Reference Station (sold separately). The charging station needs a power connection and the reference station must be positioned with clear line of sight to the mowing area.

How does the virtual boundary system work?

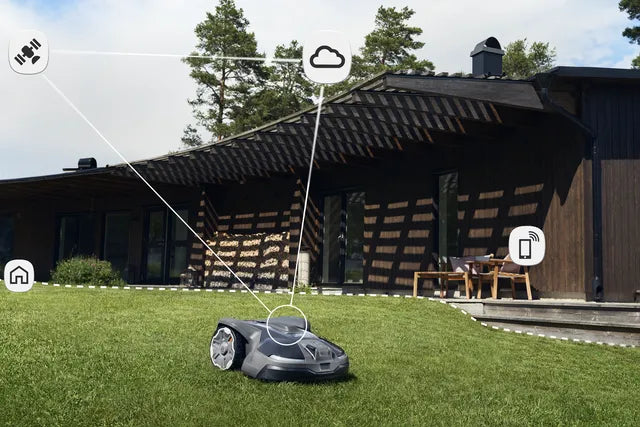

The EPOS® technology uses RTK-GNSS satellite positioning to maintain virtual boundaries with 2cm accuracy. This eliminates the need for physical boundary wires while allowing dynamic adjustment of mowing areas through the app.

What maintenance is required?

Regular blade inspection and replacement, wheel cleaning, and seasonal servicing are recommended. The mower should be cleaned regularly and stored indoors during winter. Software updates are provided via FOTA (Firmware Over-The-Air).

Resources & Downloads

▶

Official documentation and manuals are available upon request.

Product Identifiers

▶

SKU: 9707178‑05

Brand: Husqvarna

Price: $3,729.00

Product Name: Husqvarna Automower® 520 EPOS®

Category: Lawn Mower

Product Source: Link

Disclaimers & Source Notes

▶

About Husqvarna Automower® 520 EPOS®

Specifications and features documented here are based on official the manufacturer product information. Performance may vary based on conditions, configuration, and usage patterns.

Regulatory Considerations

Robotic mowers should comply with local noise ordinances. Some regions restrict operating hours. Check local regulations.

Verification Recommended

Always verify current specifications with the manufacturer before purchase. Product specifications may be updated without notice.
