Lawn Mowers

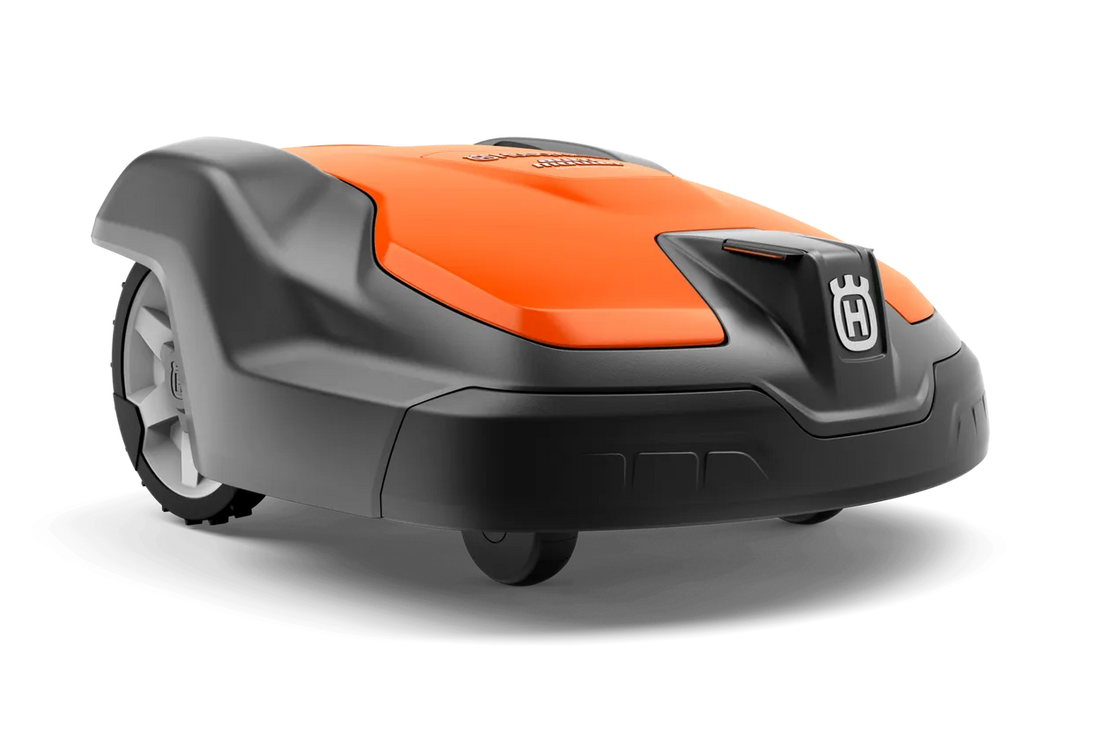

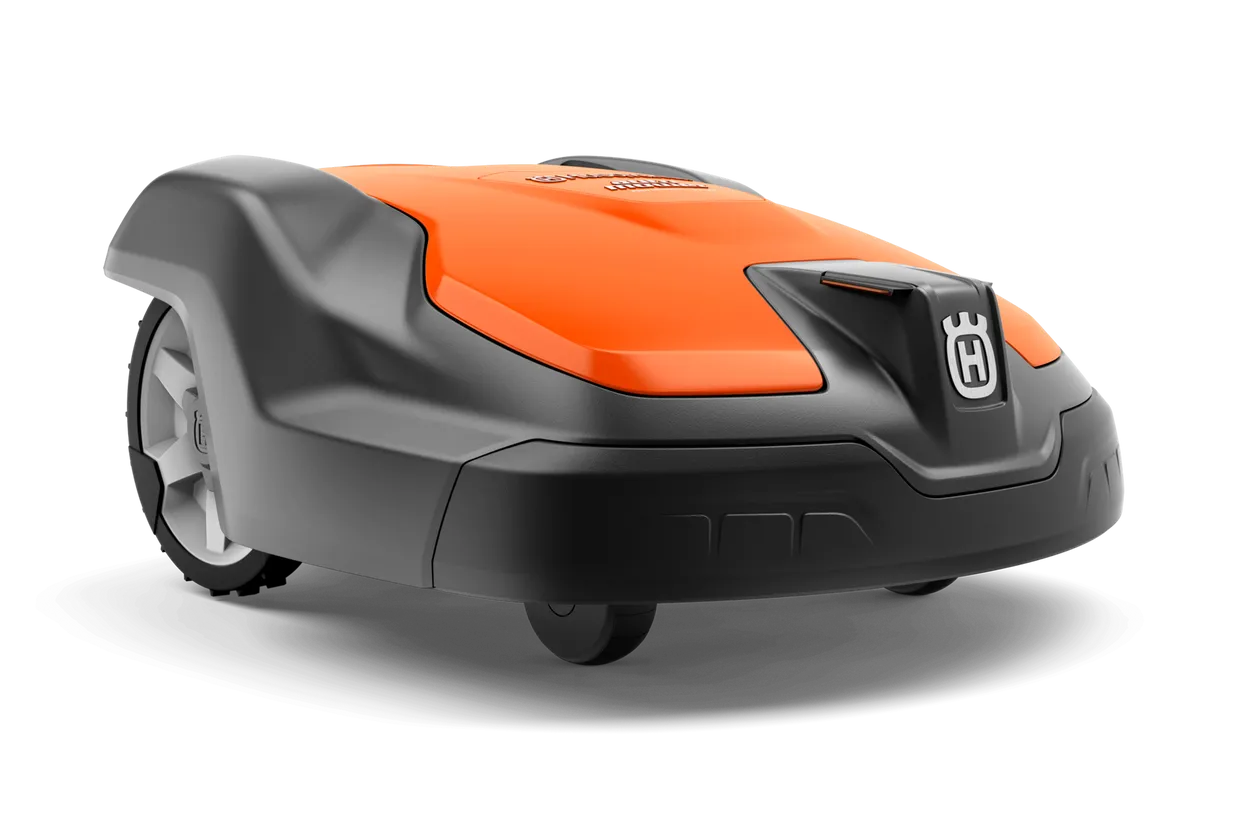

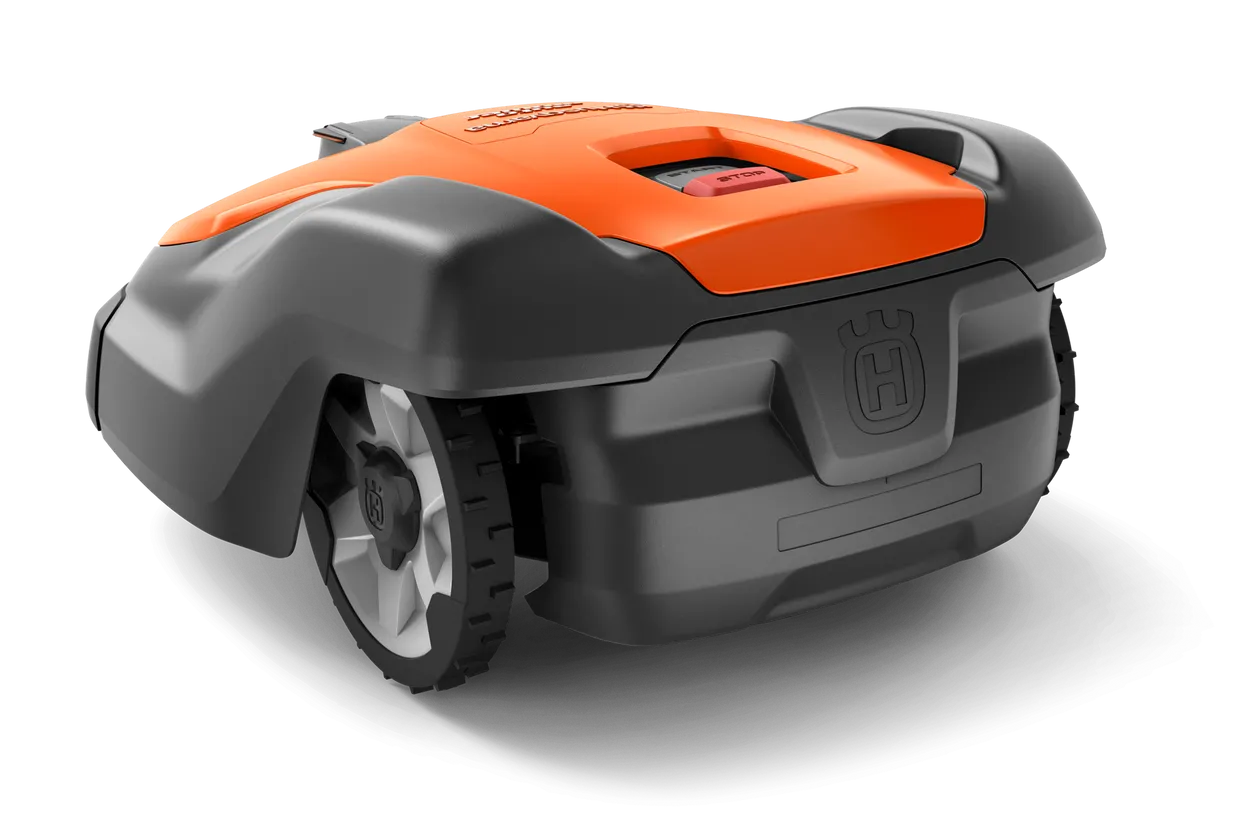

Husqvarna Automower® 520H

by Husqvarna

Engineered for professional-grade performance, this autonomous mowing solution represents the pinnacle of robotic lawn maintenance technology. Advanced GPS-assisted navigation combines with a sophisticated triple-wire guidance system to deliver consistent, high-quality results across complex landscapes up to 0.6 acres.

Equipped with a precise 9.45-inch cutting system and capable of tackling impressive 45% slopes, it maintains lawns with surgical precision. The electric height adjustment system allows cutting heights from 2.0 to 3.6 inches, while the ultra-quiet 61 dB(A) operation enables 24/7 autonomous mowing without disturbing the peace.

Coverage Area: 0.6 acres Max Slope: 45% Cutting Width: 9.45 inches Battery Runtime: 75 minutes Noise Level: 61 dB(A)

Capabilities

▶

Integrates with standard lawn mower systems and accessories

Feature detail

Specifications

▶

Cutting Performance ▶

Cutting Width 9.45 inches

Cutting Height Range 2.0-3.6 inches

Cutting System 5 pivoting razor blades

Height Adjustment Electric

Cutting Disc Balanced with dual cutting direction

Skid Plate Yes

Coverage & Terrain ▶

Maximum Area 0.6 acres (±20%)

Internal Slope Capacity 45%

Boundary Slope Capacity 15%

Passage Handling Automatic narrow passage detection

Working Time 24h continuous operation

Guide Wires 3 guide wires

Power System ▶

Battery Type Li-ion

Battery Capacity 4 Ah

Charging Current 2.2 A

Operating Time 75 minutes per charge

Charging Time 50 minutes

Charging System Automatic

Physical Specifications ▶

Weight 32.4 lbs

Length 29.5 inches

Width 24.8 inches

Height 13 inches

Color Options Orange, Grey

Noise Level 61 dB(A)

Technical reference

Technical Details

▶

Weather Protection IPX4 rated

Navigation System GPS-assisted

Boundary Type Physical wire

User Interface Professional User Interface/App

Remote Control Husqvarna Fleet Services

Connectivity Bluetooth, Cellular

Smart Home Integration Yes

Theft Protection GPS-based geofence

Safety Sensors Lift and collision detection

Emergency Stop Yes

PIN Code Lock Yes

Alarm System Yes

Battery Runtime 75 minutes

What's Included / Not Included

▶

Included:

• Automower® 520H unit
• Charging station
• 6 replacement blades
• Wheel brushes
• 33 ft low voltage cable
• Power supply unit
• User manual
• Quick start guide

NOT Included:

• Boundary wire
• Wire stakes
• Wire connectors
• Installation tools
• Additional blades beyond included 6
• Professional installation service

Compatibility

▶

Compatible With:

• Husqvarna Fleet Services™ platform
• Automower® Connect app
• Smart home systems via API
• Standard boundary wire systems
• Professional charging stations
• Husqvarna maintenance tools
• Original Husqvarna replacement blades
• Professional installation kits

Operating Environment:

• Noise Level: 61 dB(A)

Maintenance & Care

▶

Recommended Schedule: Regular maintenance required

• Weekly blade inspection and cleaning
• Monthly blade replacement under normal use
• Quarterly wheel cleaning and bearing check
• Bi-annual charging station cleaning
• Annual professional service inspection
• Regular software updates as released
• Battery replacement every 2-3 years
• Boundary wire inspection each spring

Frequently Asked Questions

▶

What type of warranty coverage is included?

Standard commercial warranty covering defects in material and workmanship under normal use during the warranty period.

What are the installation requirements?

Installation requires boundary wire setup, charging station placement, and lawn mapping configuration. Professional installation is recommended for optimal performance.

How does the navigation system work?

The mower uses GPS-assisted navigation combined with a triple guide wire system for efficient coverage. It automatically detects narrow passages and adapts its mowing pattern accordingly.

Resources & Downloads

▶

Official documentation and manuals are available upon request.

Product Identifiers

▶

SKU: 9679977‑05

Brand: Husqvarna

Price: $2,099.99

Product Name: Husqvarna Automower® 520H

Category: Lawn Mower

Product Source: Link

Disclaimers & Source Notes

▶

About Husqvarna Automower® 520H

Specifications and features documented here are based on official the manufacturer product information. Performance may vary based on conditions, configuration, and usage patterns.

Regulatory Considerations

Robotic mowers should comply with local noise ordinances. Some regions restrict operating hours. Check local regulations.

Verification Recommended

Always verify current specifications with the manufacturer before purchase. Product specifications may be updated without notice.
