Lawn Mowers

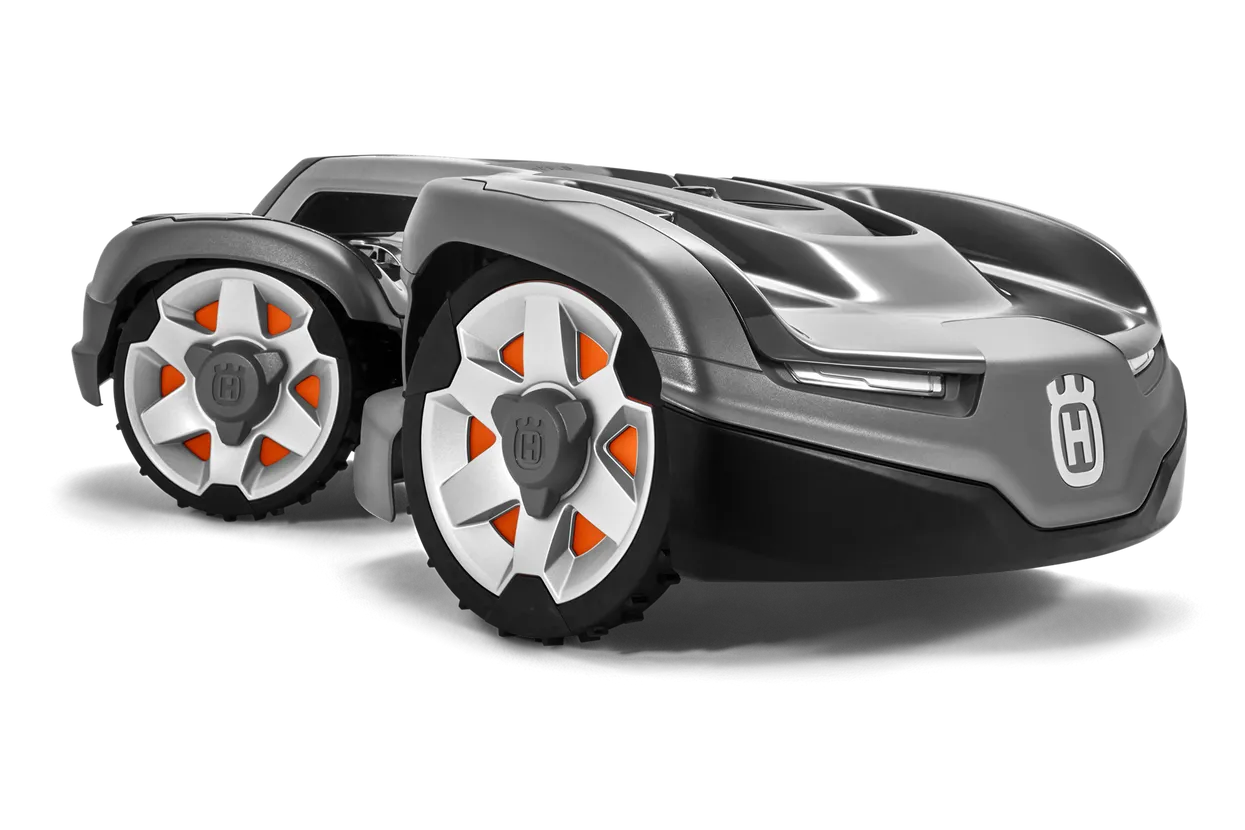

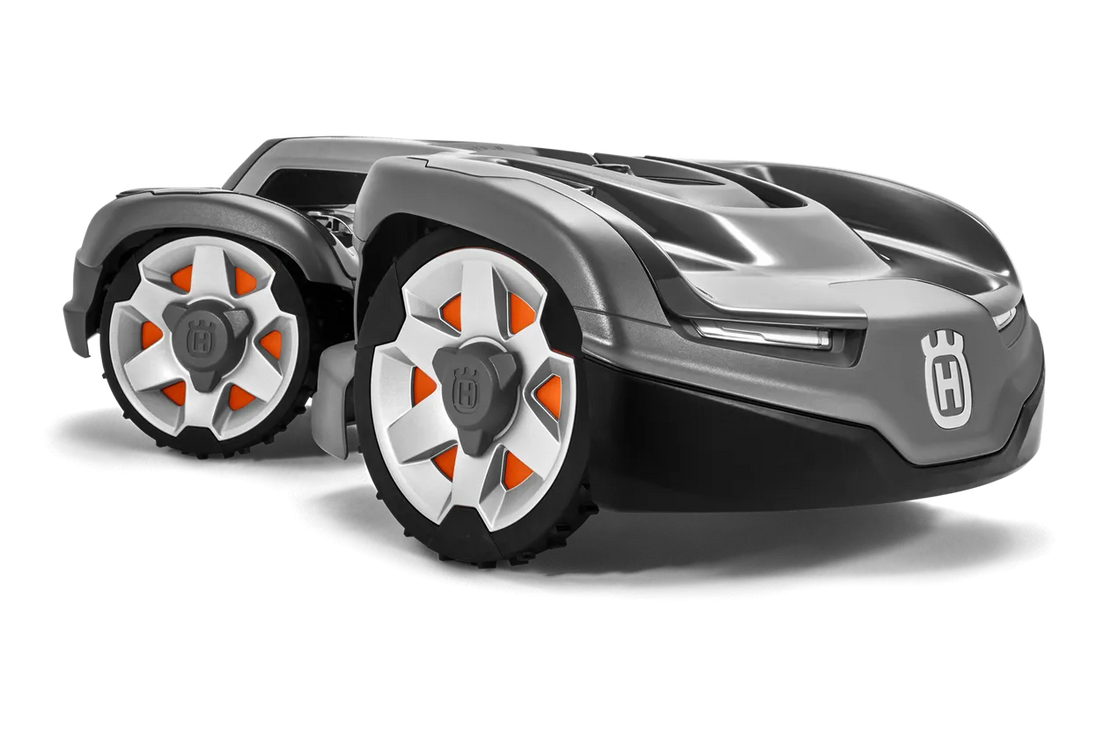

HUSQVARNA AUTOMOWER® 435X AWD Residential Robotic Lawn Mower

by Husqvarna

Engineered for challenging terrain, this innovative robotic mower sets new standards with its articulated all-wheel drive system that conquers slopes up to an impressive 70% grade. The pivoting rear body design ensures exceptional maneuverability around obstacles while maintaining optimal traction even on wet grass, enabling reliable autonomous operation in complex residential landscapes.

Equipped with GPS-assisted navigation and advanced object detection sensors, it delivers precise cutting performance across working areas up to 0.9 acres. The ultra-quiet 60 dB(A) operation and efficient 145-minute runtime between 45-minute charging cycles make it ideal for maintaining pristine lawns 24/7 without disturbing the neighborhood.

Coverage Area: 0.9 acres Maximum Slope: 70% grade Runtime: 145 minutes Charging Time: 45 minutes Noise Level: 60 dB(A) Weather Rating: IPX4

Capabilities

▶

Navigate and mow slopes up to 70% grade

Operate continuously for 24 hours per day

Cut grass in dual directions for efficient coverage

Auto-return to charging station when battery is low

Handle narrow passages with automatic detection

Create and maintain cutting schedules via app

Specifications

▶

Cutting System ▶

Cutting Method 3 pivoting razor blades

Cutting Width 8.7 inches

Cutting Height Min 1.2 inches

Cutting Height Max 2.8 inches

Height Adjustment Electric

Dual Cutting Direction Yes

Skid Plate Yes

Coverage & Terrain ▶

Working Area Capacity 0.9 acres (±20%)

Maximum Slope Inside 70%

Maximum Slope at Boundary 50%

Boundary Type Physical wire

Maximum Active Time 24 hours

Power System ▶

Battery Type Li-Ion

Battery Capacity 8 Ah

Charging Current 7A

Typical Mowing Time 145 minutes

Typical Charging Time 45 minutes

Charging System Automatic

Physical Specifications ▶

Weight 39 lbs

Length 36.6 inches

Width 21.7 inches

Height 11.4 inches

Color Grey

Sound Level 60 dB(A)

Weather Protection IPX4

Technical Details

▶

Navigation System GPS-assisted with boundary wire

Control Interface Automower Access with color display and jog wheel

App Control Automower Connect

Connectivity Bluetooth and Cellular

Safety Features Lift sensor, tilt sensor, collision sensors

Operating Temperature All-weather operation

Security PIN code required, alarm system

Software Updates Over-the-air (FOTA)

Lawn Size (±20) 0.9 acre

Overall dimensions USA, CASKU: 967 85 33‑05

Product data USA, CASKU: 967 85 33‑05

Control USA, CASKU: 967 85 33‑05

User Interface Jogwheel, display and status LED:s/App

Display Color Display TFT 2,8” QVGA

App controlled Automower® Connect

Smart Home integration Yes

Firmware Update FOTASafety - Compare specifications across different product articles

Safety USA, CASKU: 967 85 33‑05

GPS Theft tracking Yes

GeoFence Yes

PIN code Yes

Alarm Yes

Lift sensor Yes

Tilt sensor Yes

Maximum Resistance 200 lbs total

Exercise Library 250+ movements

What's Included / Not Included

▶

Included:

• Automower® 435X AWD unit
• Charging station
• Power supply unit
• 6 extra cutting blades
• 33 ft low voltage cable
• User manual
• Quick start guide

NOT Included:

• Boundary wire
• Wire stakes
• Wire connectors
• Installation tools
• Additional guide wires
• Installation kit

Compatibility

▶

Compatible With:

• Amazon Alexa
• Google Home
• Automower® Connect app
• Husqvarna EPOS satellite navigation
• Standard boundary wire systems
• Husqvarna Zone Control
• Automower® Access interface
• FOTA (Firmware Over The Air) updates

Maintenance & Care

▶

Recommended Schedule: Monthly

• Replace cutting blades every 1-2 months
• Clean cutting deck and wheels regularly
• Check wheel traction monthly
• Store indoors during winter months
• Regular app and firmware updates as available

Frequently Asked Questions

▶

What installation is required?

Professional installation is required for the 435X AWD model. This includes underground boundary wire installation, charging station placement, and lawn mapping configuration. Installation typically costs $850-1000 depending on yard complexity.

How often should blades be replaced?

Husqvarna recommends changing the blades every 1-2 months depending on lawn size and conditions. Regular blade changes ensure optimal cutting performance and lawn health.

How does it handle rain and wet conditions?

With an IPX4 weather protection rating, it can operate in wet conditions. The all-wheel drive system maintains traction on wet grass, though performance may be slightly reduced in very heavy rain.

Resources & Downloads

▶

Official documentation and manuals are available upon request.

Product Identifiers

▶

SKU: 967853305

Brand: Husqvarna

Manufacturer #: Logo

Price: 2999.99

Product Name: HUSQVARNA AUTOMOWER® 435X AWD Residential Robotic Lawn Mower

Category: Lawn Mower

Product Source: Link

Disclaimers & Source Notes

▶

About HUSQVARNA AUTOMOWER® 435X AWD Residential Robotic Lawn Mower

Specifications and features documented here are based on official the manufacturer product information. Performance may vary based on conditions, configuration, and usage patterns.

Regulatory Considerations

Robotic mowers should comply with local noise ordinances. Some regions restrict operating hours. Check local regulations.

Verification Recommended

Always verify current specifications with the manufacturer before purchase. Product specifications may be updated without notice.
