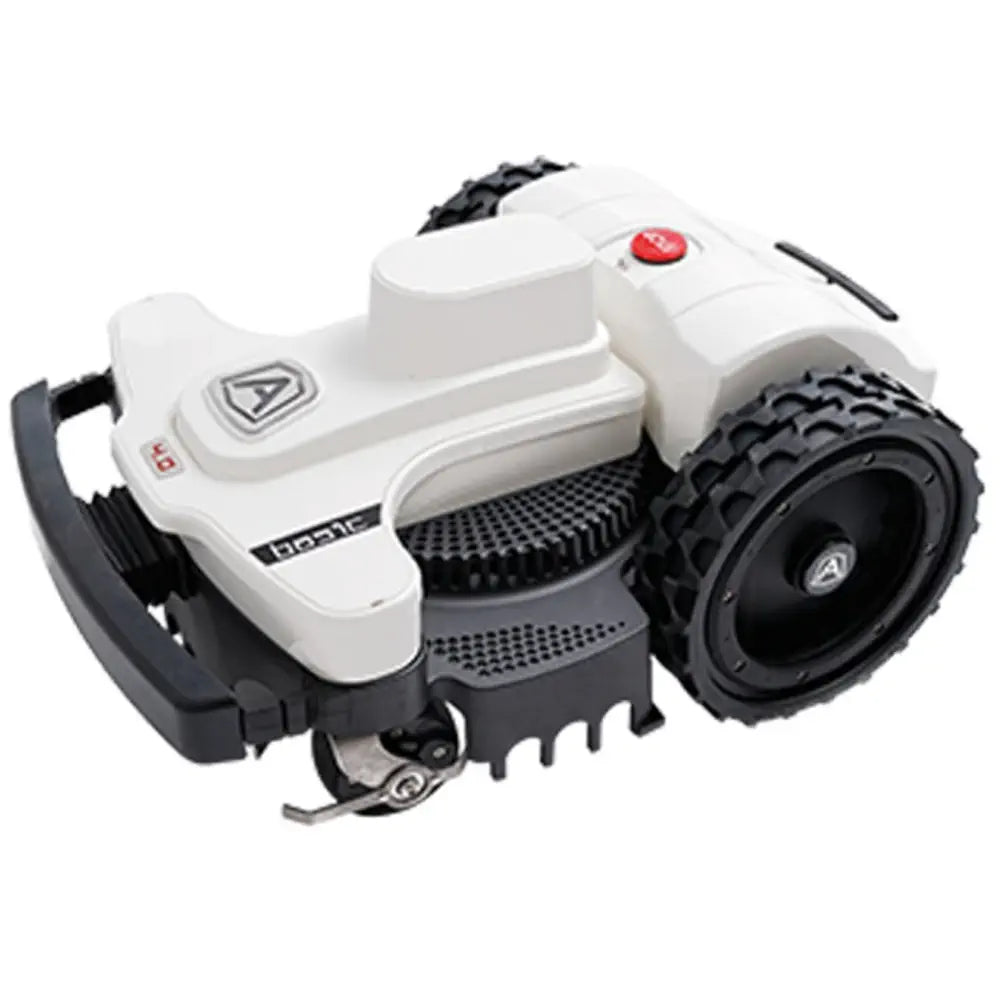

Ambrogio 4.0 Basic Robot Lawn Mower w/ Premium Battery

by Ambrogio

Engineered with an innovative jointed body design, this transformative robotic mower sets a new standard in autonomous lawn maintenance. The unique self-leveling deck system and articulated chassis allow seamless adaptation to irregular terrain, maintaining precise cutting effectiveness even on challenging surfaces through mechanical flexing and ground contour conformity.

Powered by a robust 25.9V lithium-ion battery delivering 4 hours of runtime, the system combines wide rubber profile wheels with powerful brushless motors to maintain consistent 0.8-2.6 inch cutting heights across a 0.44-acre coverage area. The precision 4-point star blade system provides a 9.8-inch cutting width while operating at just 63 dB for quiet operation.

Coverage Area: 0.44 acres Working Time: 4 hours Cutting Width: 9.8 inches Noise Level: 63 dB Max Slope: 24 degrees Zones: 4 lawn areas

Capabilities

▶

Delivers professional-grade performance for its intended applications

Designed for reliable operation in lawn mower applications

Integrates with standard lawn mower systems and accessories

Specifications

▶

Cutting System ▶

Blade Type 4-point star

Cutting Width 9.8 inches (3 Blades)

Cutting Height Range 0.8 - 2.6 inches

Height Adjustment Manual

Spiral Cutting Yes

SDM Cutting No

Eco Mode Yes

Cutting height (min-max) [mm] 20-65Cutting Height Adjustment: ManualSpiral cutting method: Yes

SDM" cutting method NoPre-Set Path cutting method: -+ Infinity" cutting method: No

Coverage & Terrain ▶

Maximum Working Area 0.44 acres

Maximum Slope 24 degrees

Practical Slope Limit 19 degrees

Perimeter Wire Slope 11 degrees

Self-Leveling Yes

Power System ▶

Battery Type Lithium-Ion 25.9V

Battery Capacity 10.35Ah - 260Wh

Working Time 4 hours (±20%)

Charging Type Contact

Charging Mode Automatic

Charger Power 8A - 235W

Motor Type Brushless

PREMIUM Power UnitMotor type BrushlessBrushlessBrushlessAllowable slope (%): 45%45%45%

PREMIUM Power UnitRobot dimensions (lxwxh) 464x635x300

Physical Specifications ▶

Dimensions (LxWxH) 18.3 x 25 x 11.8 inches

Weight with Battery 34.4 lbs

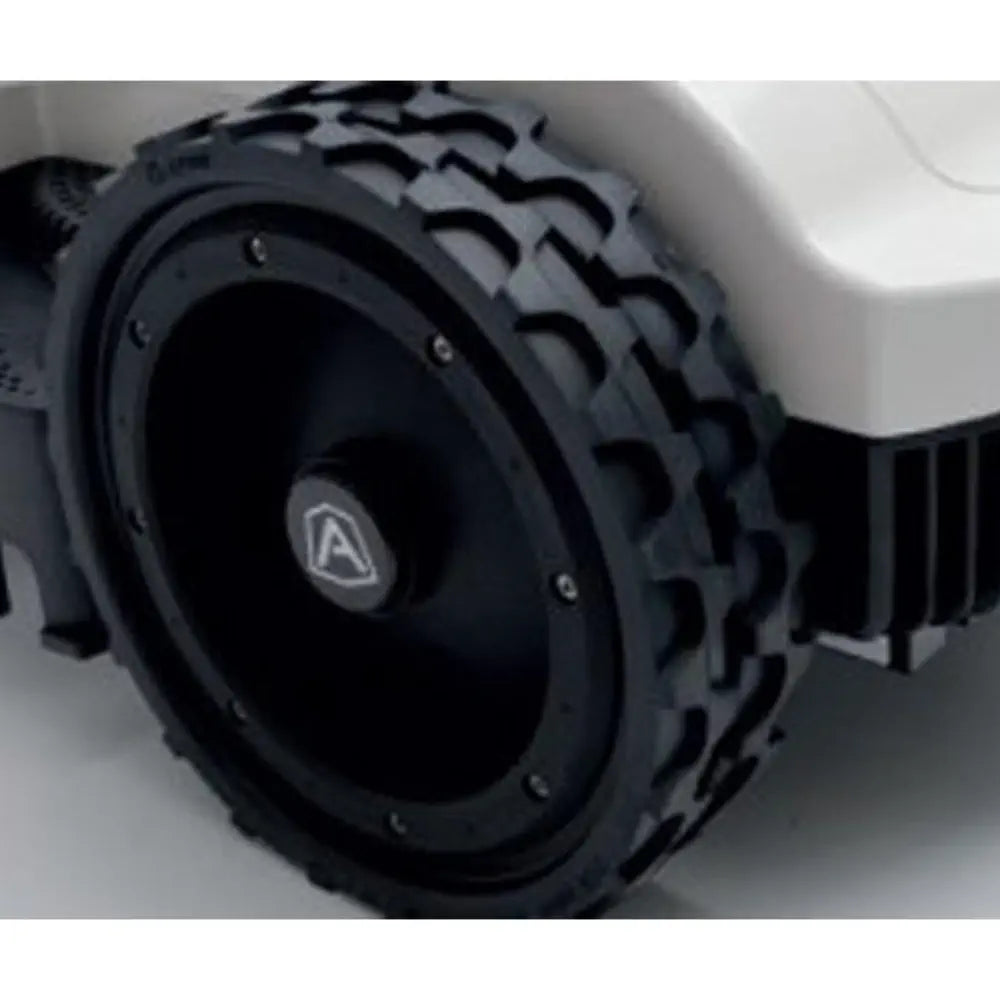

Wheel Profile Flex rubber

Noise Level 63 dB(A)

Protection Rating IPx5

Housing Material Weather-resistant polymer

Navigation & Control ▶

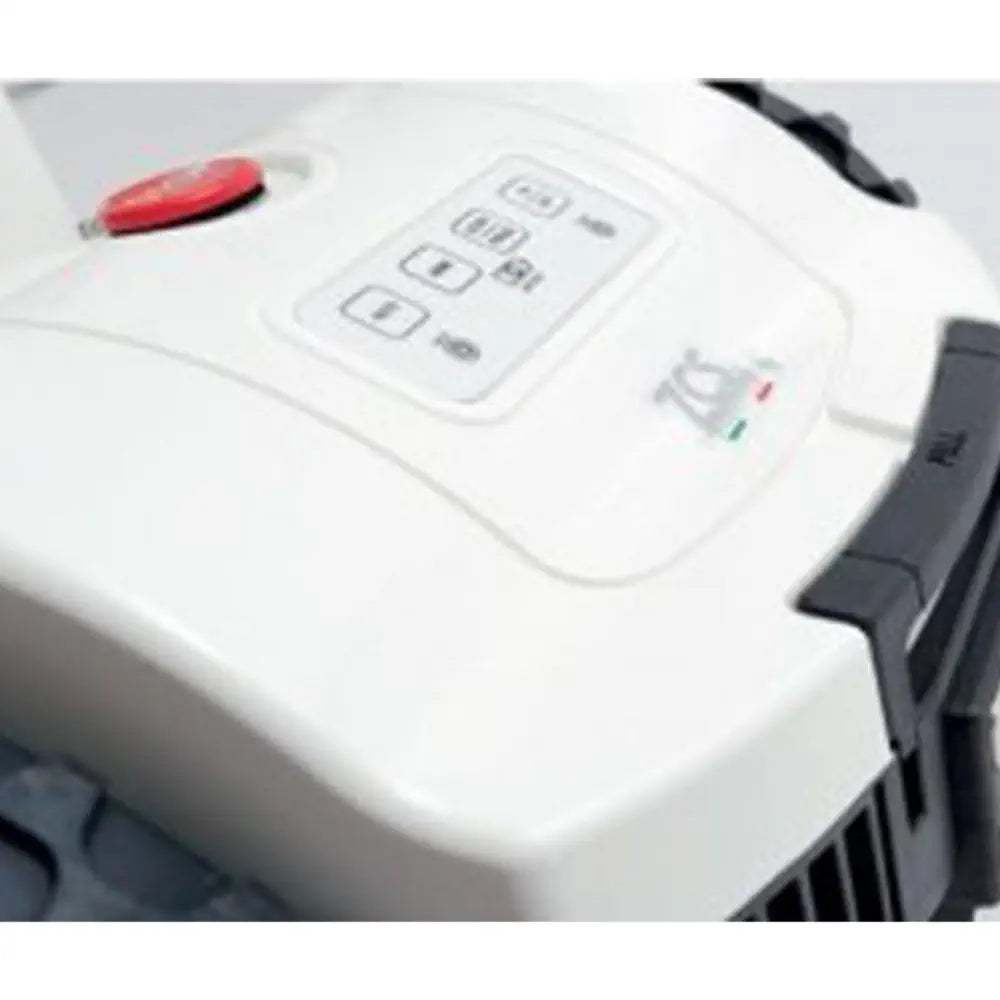

Interface Keypad & LED

Bluetooth Control Yes

App Control Yes

Rain Sensor Yes

GPS Navigation Optional with ZCS Connect

Boundary System Perimeter Wire

Security PIN code via APP

GPS-GSM remote control (ZCS Connect) On request

Technical Details

▶

Protection Rating IPx5 weather resistance

Operating Interface Keypad & LED with Bluetooth connectivity

Safety Features PIN code security via app

Rain Detection Integrated rain sensor

Navigation System Perimeter wire with optional GPS via ZCS Connect

App Platform iOS and Android compatible

Smart Integration Compatible with smart assistants (requires ZCS Connect)

Self-levelling traction Yes

Ultrasound obstacol detection No

AI grass sensor -Virtual Areas: 8

Bluetooth receiver Yes

AMICO On request

ZDefence On requestSafetySecurity PIN: PIN code via APPFeatures: MEDIUM Power Unit

Lithium-Ion battery (25.9V) 6.9Ah-173Wh3.45Ah - 86Wh10.35Ah-260Wh

Quantity of batteries 1X6,9Ah1x3,45Ah1x10,35AhAverage working time [h](+-20%): 03:0001:3004:00

Battery Chargers 5A - 150W2A - 60W8A - 235W

What's Included / Not Included

▶

Included:

• Ambrogio 4.0 Basic robot mower
• Premium Power Unit (10.35Ah battery)
• Charging station
• Power supply (8A - 235W)
• 20 fixing pegs
• User manual
• Quick setup guide
• Maintenance tools
• 4-point star blade set
• Bluetooth module

NOT Included:

• Perimeter wire (must be purchased separately)
• Additional boundary pegs beyond included 20
• Installation service
• AMICO pet safety device
• Spiked wheels for steep terrain
• ZCS Connect module for GPS tracking

Compatibility

▶

Compatible With:

• Standard perimeter wire systems
• Ambrogio mobile app (iOS/Android)
• AMICO pet safety device (optional)
• ZDefence mosquito repellent system
• Spiked wheels accessory
• Glossy back cover accessory
• ZCS Connect module
• Smart assistant integration (with ZCS Connect)

Operating Environment:

• Noise Level: 63 dB(A)

Maintenance & Care

▶

Recommended Schedule: Regular inspection and maintenance required

• Weekly blade inspection and cleaning
• Monthly perimeter wire check
• Bi-weekly charging contact cleaning
• Quarterly blade replacement
• Annual professional service recommended
• Battery maintenance during winter storage
• Regular software updates via app
• Seasonal cutting height adjustment
• Periodic wheel cleaning and inspection
• Rain sensor verification monthly

Frequently Asked Questions

▶

What is the warranty coverage?

The mower comes with a 2-year manufacturer warranty, which can be extended to 6 years with annual dealer maintenance service.

What is the maximum lawn size this can handle?

The mower is designed for lawns up to 0.44 acres (1800 m²) with the Premium Power Unit installed. It can effectively manage multiple zones with up to 4 distinct areas.

What slope can this mower handle?

The maximum slope capability is 24 degrees, with a practical working limit of 19 degrees for optimal performance. The perimeter wire can be installed on slopes up to 11 degrees.

Resources & Downloads

▶

Official documentation and manuals are available upon request.

Product Identifiers

▶

SKU: RBD-Amb-05

Brand: Ambrogio

Price: 2825.00

Product Name: Ambrogio 4.0 Basic Robot Lawn Mower w/ Premium Battery

Category: Lawn Mower

Product Source: Link
