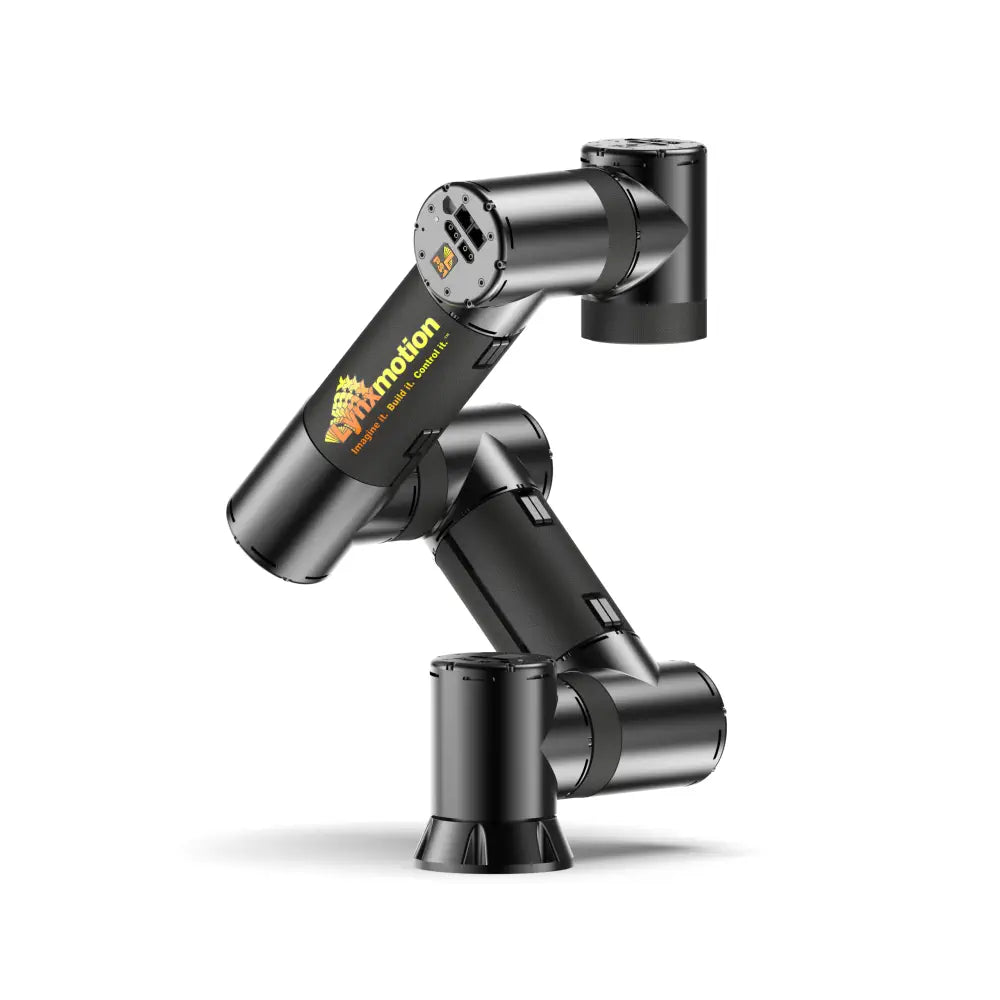

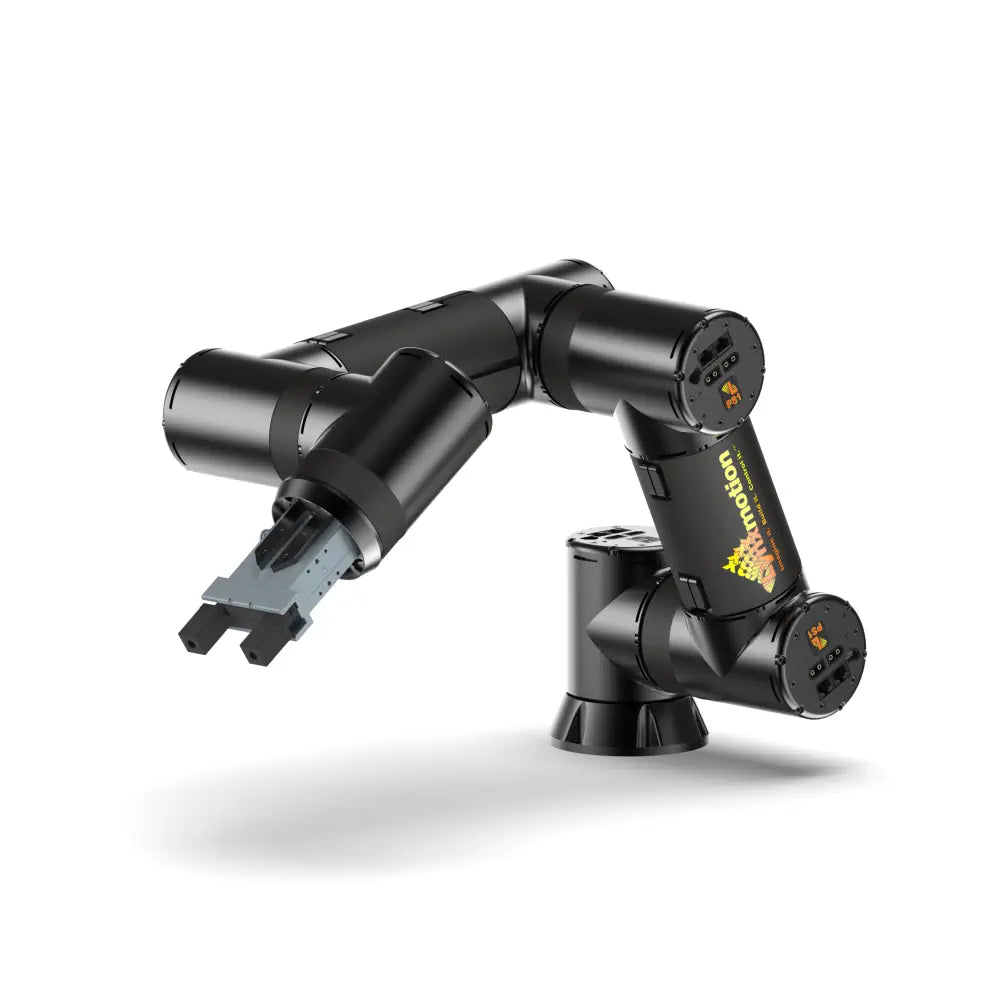

Lynxmotion SES-PRO 550mm 6Dof Modular Robotic Arm Assembled
Engineered for high-precision manipulation, this modular system delivers a 2kg payload capacity at a 550mm horizontal reach. It utilizes professional-grade strain wave gearing and NEMA stepper motors to achieve ±0.1 mm accuracy. The reconfigurable design allows researchers and educators to adapt the degrees of freedom, making it a versatile platform for advanced automation and ROS2-based development.
About this product
The reconfigurable design allows researchers and educators to adapt the degrees of freedom, making it a versatile platform for advanced automation and ROS2-based development.
Colleges and universities utilize this arm for higher education and robotics research, benefiting from its industry-standard precision and ROS2 compatibility.
Capabilities
Core product capabilities verified from source material and product data.
Lift up to 2kg payloads at full horizontal extension.
Execute complex 6-axis maneuvers with ±0.1 mm positioning accuracy.
Communicate via daisy-chained CAN Bus for streamlined cable management.
Operate in mobile environments using 8S or 9S lithium battery alternatives.
Specifications
Performance & Operation
Electrical & Power
Connectivity & Interfaces
Control & Software
General Specifications
What's Included / Not Included (11 items)
Included:
- 3x Lynxmotion Smart Servo PRO Lite (LSS-P-L1)
- 3x Lynxmotion Smart Servo PRO Standard (LSS-P-S1)
- 4x Lynxmotion SES-PRO Aluminum Clamp for 70mm CF Tubes
- 1x Lynxmotion SES-PRO 118mm x 70mm Carbon Fiber Tube
- 1x Lynxmotion SES-PRO 143mm x 70mm Carbon Fiber Tube
- 1x Lynxmotion SES-PRO Base for Lite or Standard LSS-P Actuators
- 1x Lynxmotion SES-PRO Arm Base Adaptation Plate
- 2x Lynxmotion Branded Neoprene Tube Covers
- 36 V Power supply
- Cables (USB, CAT5, Power)
- Mounting hardware
NOT Included:
- DH-Robotics PGE-50-40 Two Fingers Gripper
- DH-Robotics CGE-10-10 Three Fingers Gripper
- 8 S or 9S Lithium Battery Pack (for mobile use)
See it in action
Lynxmotion SES-PRO Modular Robotic Arm
Frequently Asked Questions
Can the reach of this arm be modified after purchase?
What software is required to control the arm?
How does the arm handle communication between joints?
Technical Details
Compatibility
Compatible With:
- Lynxmotion SES-PRO DH Robotics PGE-50-40 Two Fingers Gripper Kit
- Lynxmotion SES-PRO DH Robotics CGE-10-10 Three Fingers Gripper Kit
Compatible Product Links:
- ↗ Lynxmotion SES-PRO DH Robotics PGE-50-40 Two Fingers Gripper Kit
- ↗ Lynxmotion SES-PRO DH Robotics CGE-10-10 Three Fingers Gripper Kit
Maintenance & Care
- Inspect external wiring for wear or interference
- Verify zero calibration via the SES-PRO software
- Check aluminum clamp tension on carbon fiber tubes
- Ensure neoprene covers are clear of joint rotation paths
Product Identifiers
Documentation & Development
Lynxmotion SES-PRO 550mm 6Dof Modular Robotic Arm Assembled includes structured documentation, setup, and support signals to help buyers evaluate the product.
Documents & Media
PDF manuals available (1)
User manuals, quick starts, or datasheets are available for this product family.
Official product pages available (14)
Official website or manufacturer reference pages exist for additional product context.
Code & Content
Git Hub resources available (3)
Code repositories, examples, or software packages are available for this platform.
Technical articles available (2)
How-to guides, blog posts, or engineering notes are available for this product family.
Knowledge & References
Wiki / quickstart available (2)
Setup guides, implementation notes, or structured knowledge base entries are available.
Related variants documented (4)
Additional platform references or family variants are available for comparison.
Compatibility & Ecosystem
Compatibility references available (2)
Compatible products or supported platform references are available for purchase planning.
