Lawn Mowers

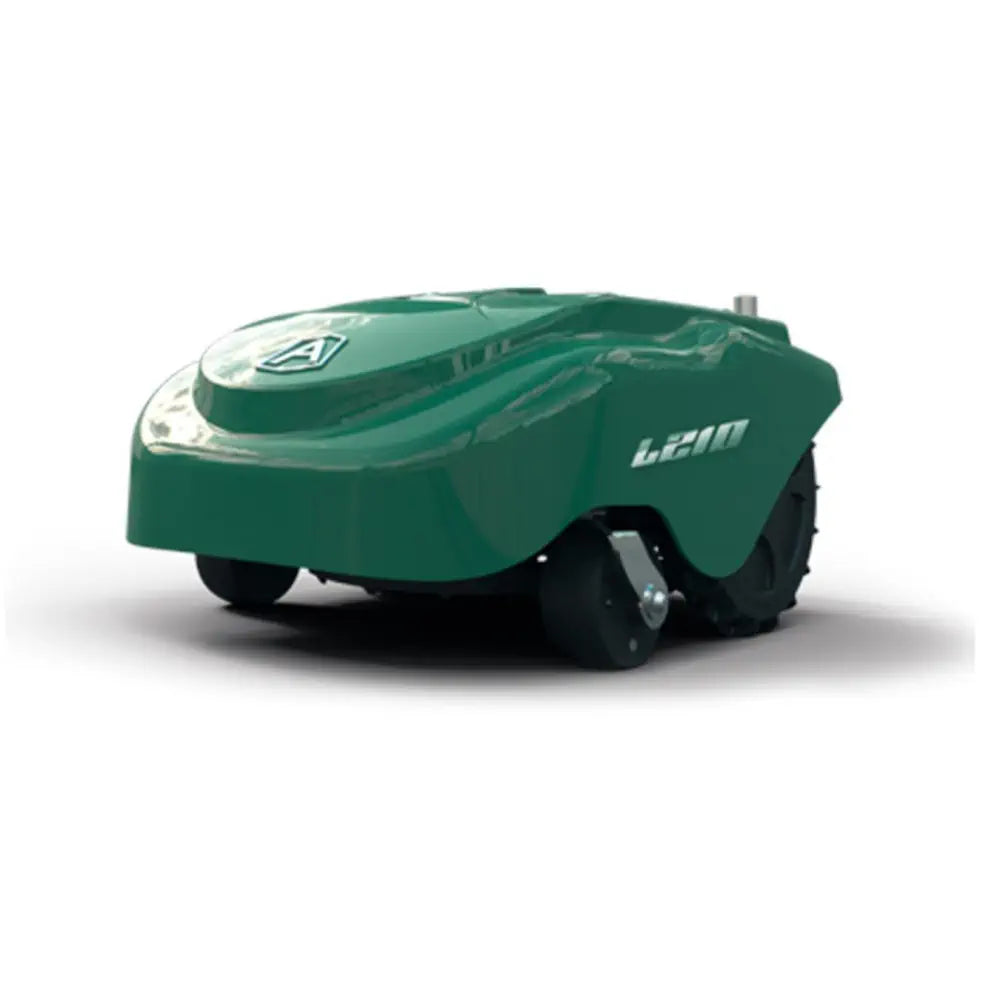

Ambrogio L210 Elite Robot Lawn Mower

by Ambrogio

Engineered for precision autonomous lawn maintenance, this flagship robotic mower combines 20 years of Italian engineering expertise with cutting-edge GPS navigation technology. The innovative 4-point star blade system and high-efficiency brushless motors deliver professional-grade cutting performance while maintaining remarkably low noise levels.

Capable of managing expansive areas up to 2,800 square meters (0.7 acres), it features an impressive 45% slope handling capability and maintains optimal cutting patterns through its sophisticated GPS-assisted navigation system. The 29cm cutting width and adjustable height range of 20-56mm ensure consistent results across varying grass conditions, while the 3.5-hour runtime provides efficient coverage of medium-sized properties.

Coverage Area: 2,800 m² (0.7 acres) Maximum Slope: 45% Working Time: 3.5 hours Cutting Width: 29 cm Sound Level: 65 dB

Capabilities

▶

Autonomous navigation with GPS assistance

Management of 4 separate zones

Automatic recharging when battery is low

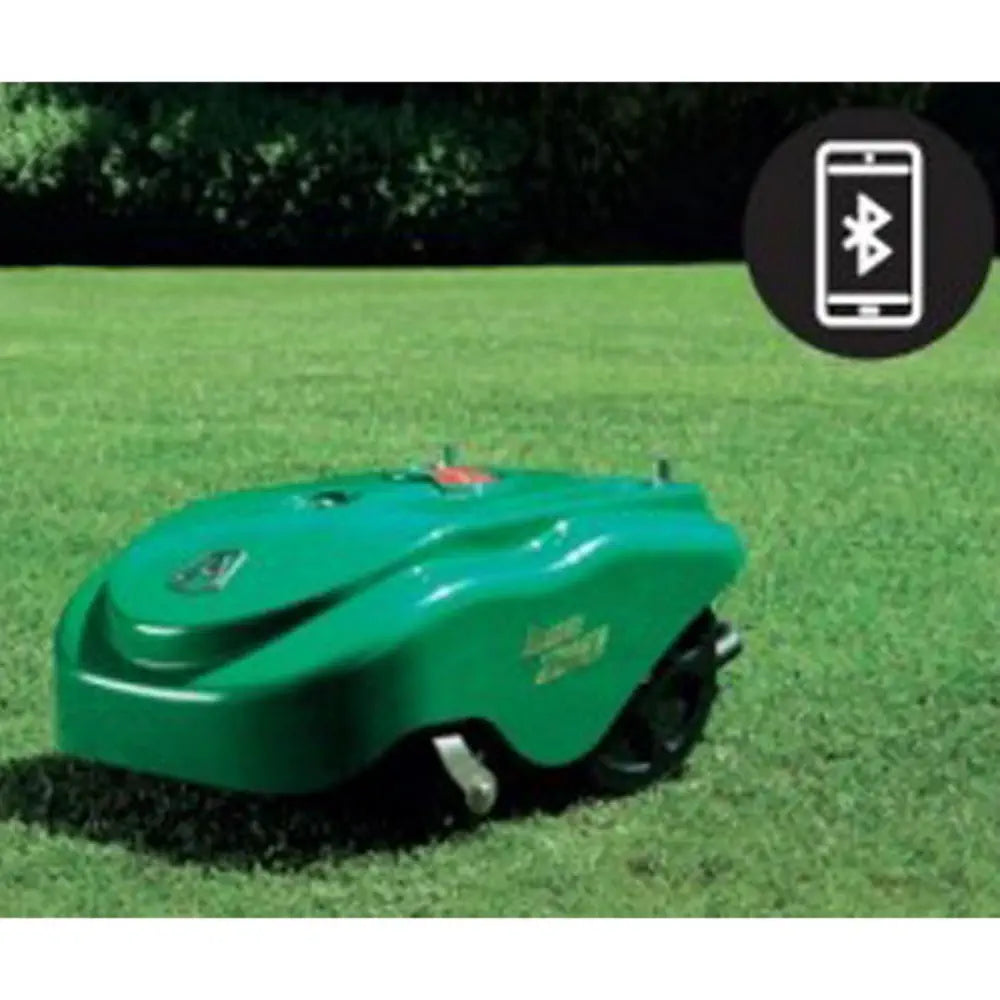

Remote control via smartphone app

Product overview

Specifications

▶

Cutting System ▶

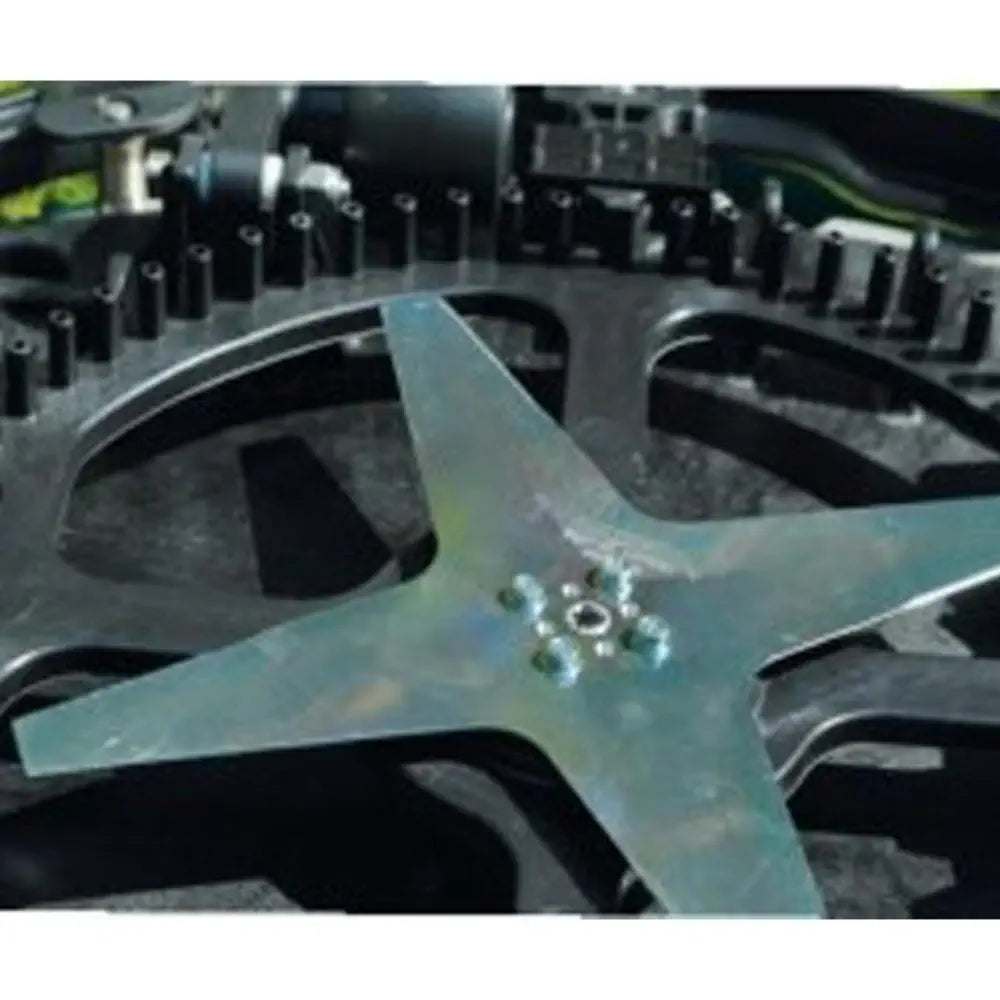

Blade Type 4-point star blade

Cutting Width 29 cm

Cutting Height Range 20-56 mm

Cutting Algorithm Smart partitioning with GPS

Spiral Cutting Yes

Eco Mode Yes

Coverage & Performance ▶

Maximum Area 2,800 m²

Maximum Slope 45%

Edge Slope Capability 20%

Working Time 3:30 hours

Rain Sensor Yes

Power System ▶

Motor Type Brushless

Battery Type Lithium-Ion

Battery Voltage 25.9V

Battery Capacity 7.5Ah

Charging System Automatic

Sound Level 65 dB

Physical Specifications ▶

Dimensions (LxWxH) 610x430x280 mm

Weight with Batteries 15.7 kg

Protection Level IP21

Housing Material Reinforced plastic with bumper

Wheel Type Knobby rubber tires

Navigation & Control ▶

GPS System Yes

Bluetooth Yes

Smartphone App Ambrogio Remote App

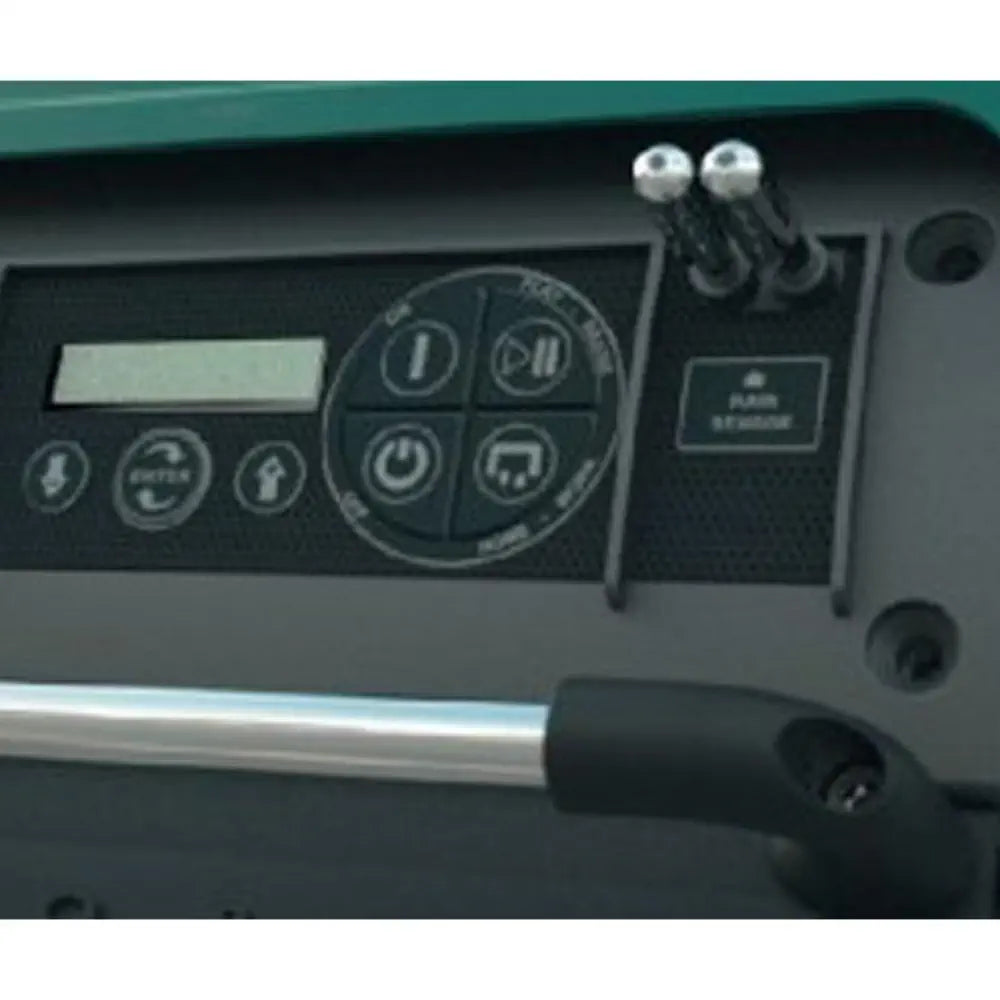

Display Yes

Encoder Yes

Inclinometer Yes

Gyroscope Yes

Control/Settings Touchscreen or Smartphone AppSmartphone App

Product overview

Technical Details

▶

Protection Rating IP21

App Compatibility Ambrogio Remote App

Navigation System GPS-assisted with smart partitioning

Safety Features Rain sensor, Automatic obstacle detection

Control Interface Onboard display + Bluetooth smartphone control

Installation Type Perimeter wire required

Blade Motor Height Adjustment MotorizedMechanical: Use Provided Tool

Mowing Algorithm SDM: Spiral in tiles w/GPS AssistanceRandom + Spiral

Product overview

What's Included / Not Included

▶

Included:

• Ambrogio L210 Elite robot mower

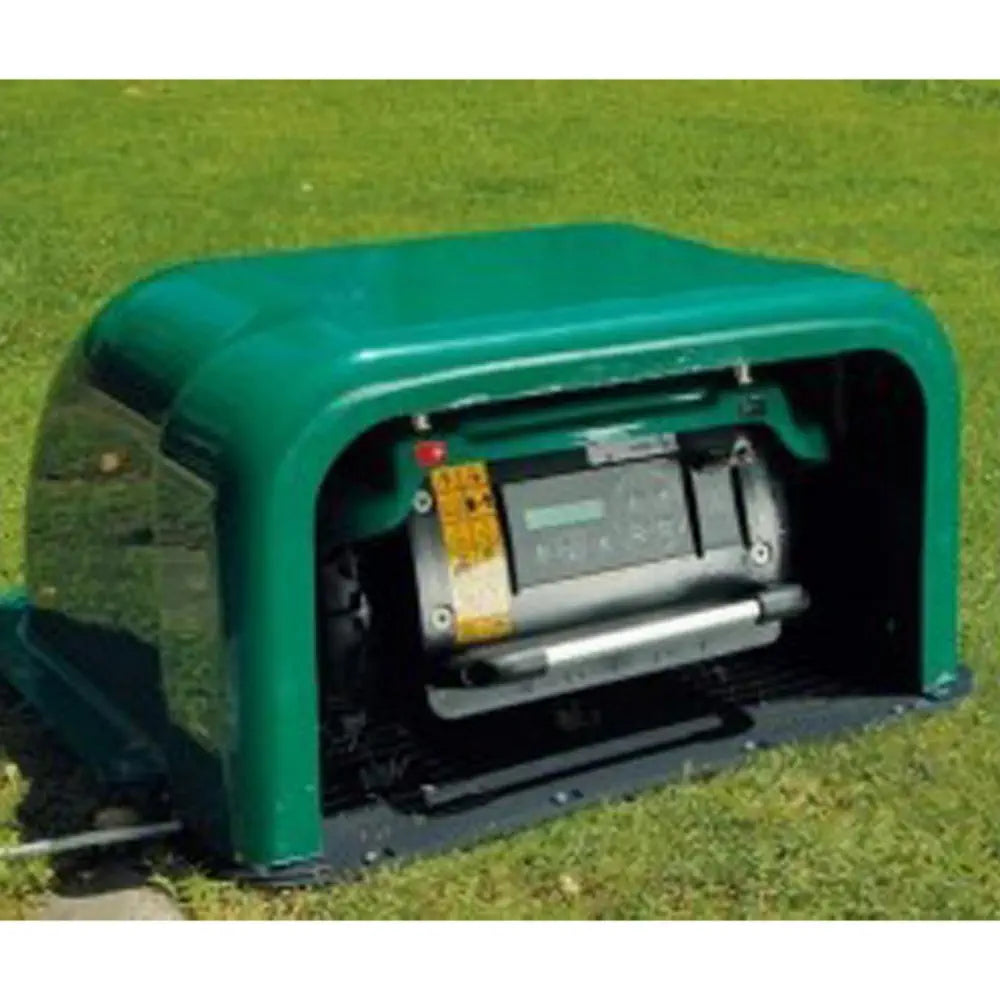

• Charging station
• Charging station cover
• 4-point star blade
• Lithium-ion battery
• Battery charger
• Bluetooth receiver
• User manual
• Quick start guide

NOT Included:

• Perimeter wire (sold separately)
• Installation pegs
• Additional blades
• Installation tools
• Professional installation service

Compatibility

▶

Compatible With:

• iOS devices via Ambrogio Remote App
• Android devices via Ambrogio Remote App
• Bluetooth 4.0+ enabled devices
• Standard perimeter wire systems
• Standard charging station systems
• GPS navigation systems

Maintenance & Care

▶

Recommended Schedule: Regular maintenance required for optimal performance

• Weekly blade inspection and cleaning
• Monthly blade replacement or sharpening
• Bi-weekly charging station cleaning
• Quarterly perimeter wire inspection
• Annual battery performance check
• Regular software updates via app
• Seasonal cutting height adjustment
• Regular sensor cleaning
• Winter storage preparation
• Spring startup maintenance

Frequently Asked Questions

▶

What is the maximum lawn size this mower can handle?

The L210 Elite can effectively maintain lawns up to 2,800 square meters (0.7 acres). This coverage area assumes typical conditions with moderate obstacles and slopes.

How does the GPS navigation system work?

The GPS system works in conjunction with a perimeter wire to create smart cutting patterns. It helps the mower track its position and ensure complete coverage while optimizing the mowing path for efficiency.

What maintenance is required?

Regular maintenance includes weekly blade inspection and cleaning, monthly blade replacement or sharpening, bi-weekly charging station cleaning, and quarterly perimeter wire checks. The robot should be stored indoors during winter months.

Resources & Downloads

▶

Official documentation and manuals are available upon request.

Product Identifiers

▶

SKU: RBD-Amb-02

Brand: Ambrogio

Price: 2850.00

Product Name: Ambrogio L210 Elite Robot Lawn Mower

Category: Lawn Mower

Product Source: Link

Disclaimers & Source Notes

▶

About Ambrogio L210 Elite Robot Lawn Mower

Specifications and features documented here are based on official the manufacturer product information. Performance may vary based on conditions, configuration, and usage patterns.

Regulatory Considerations

Robotic mowers should comply with local noise ordinances. Some regions restrict operating hours. Check local regulations.

Verification Recommended

Always verify current specifications with the manufacturer before purchase. Product specifications may be updated without notice.
