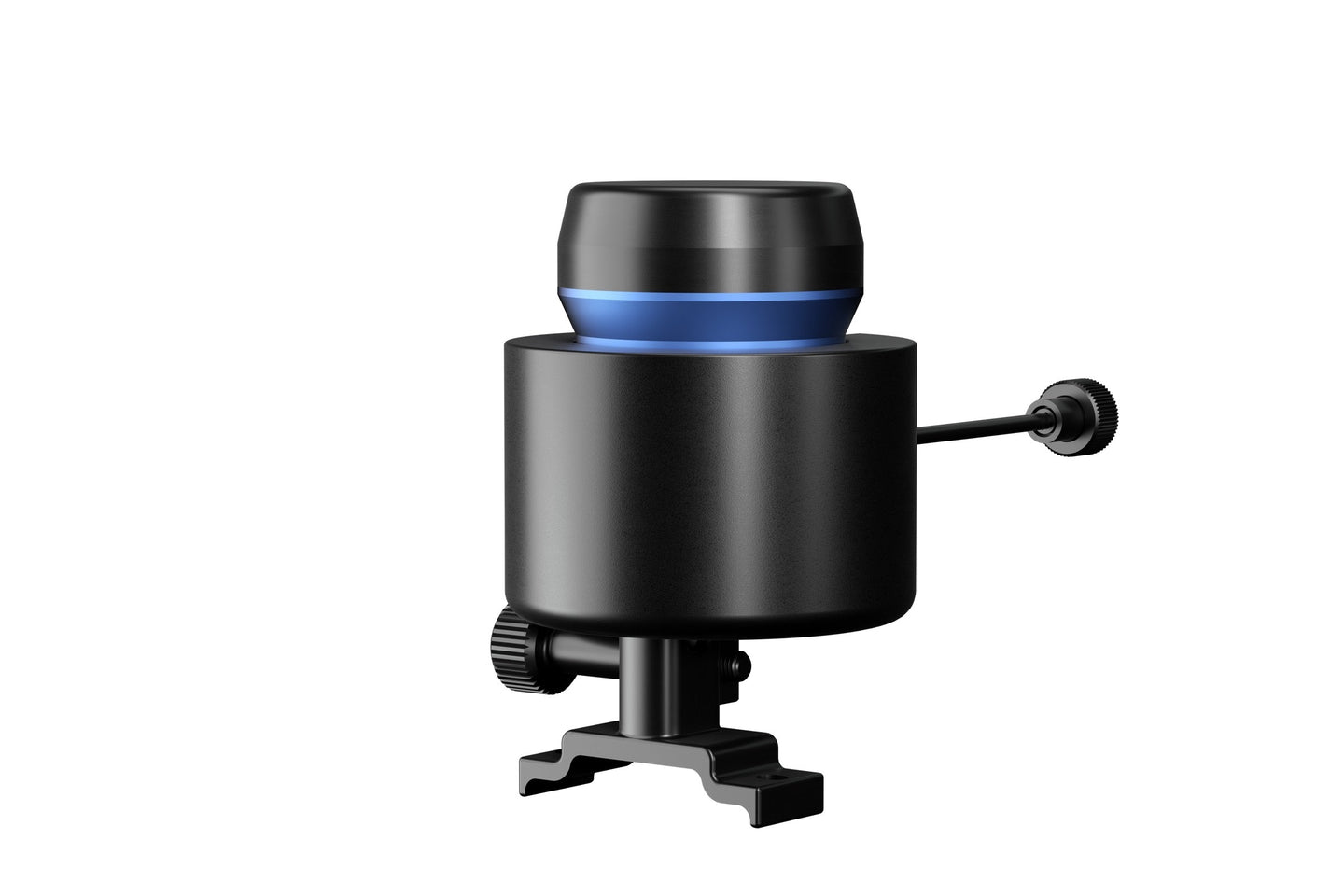

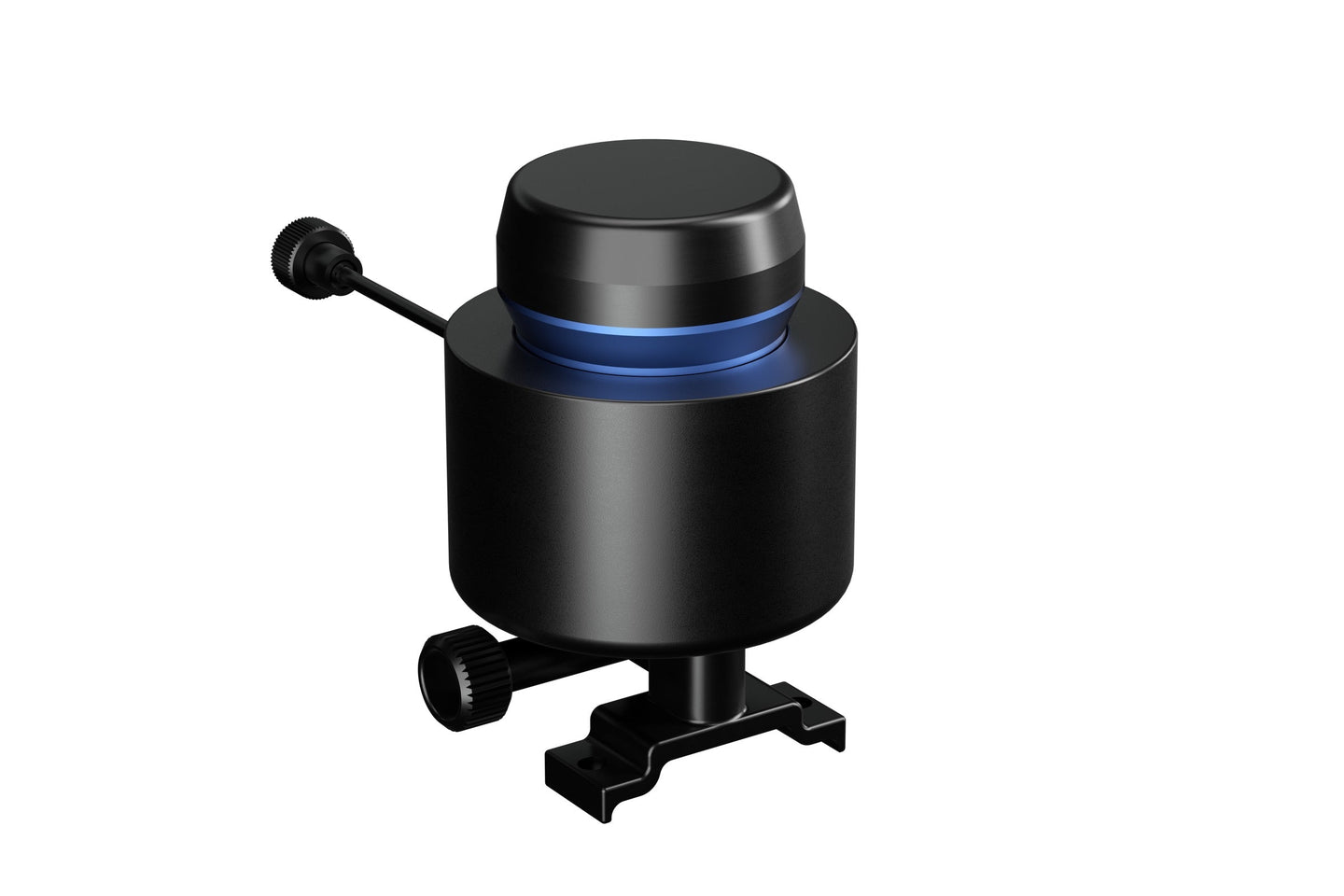

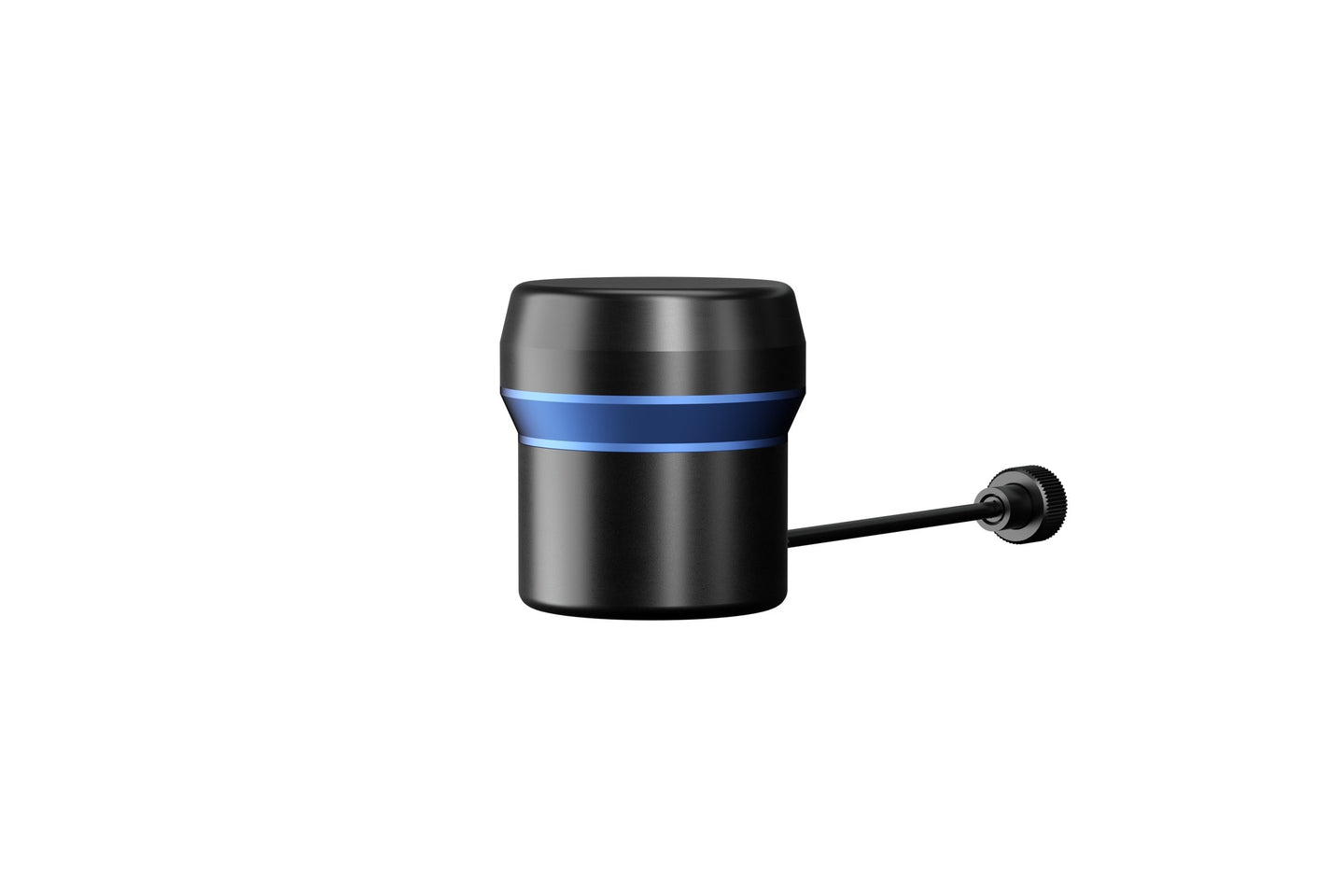

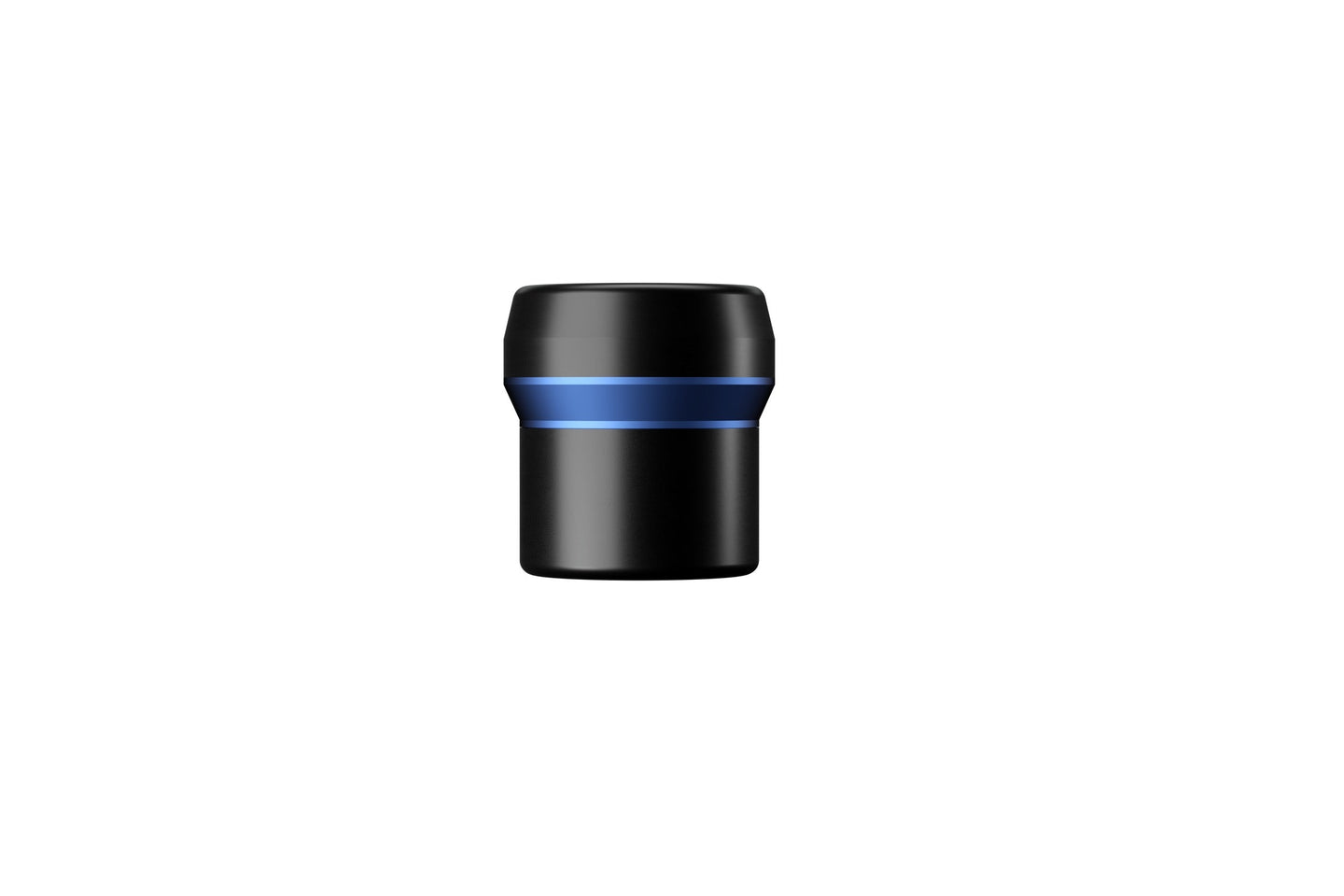

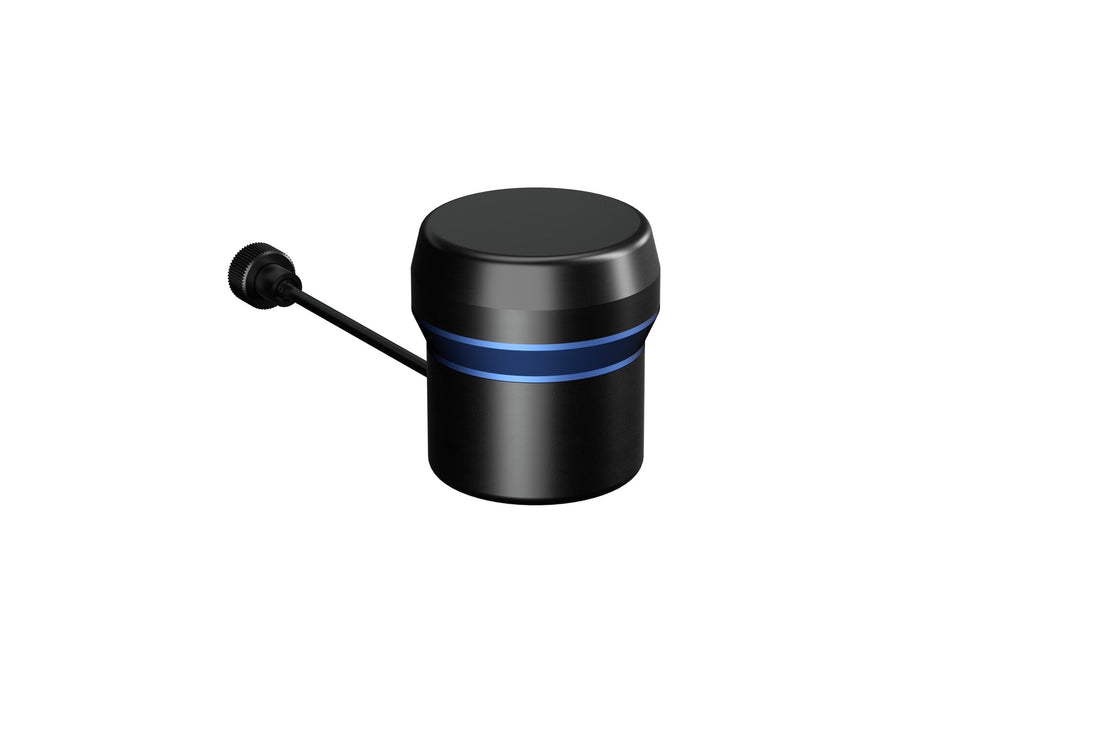

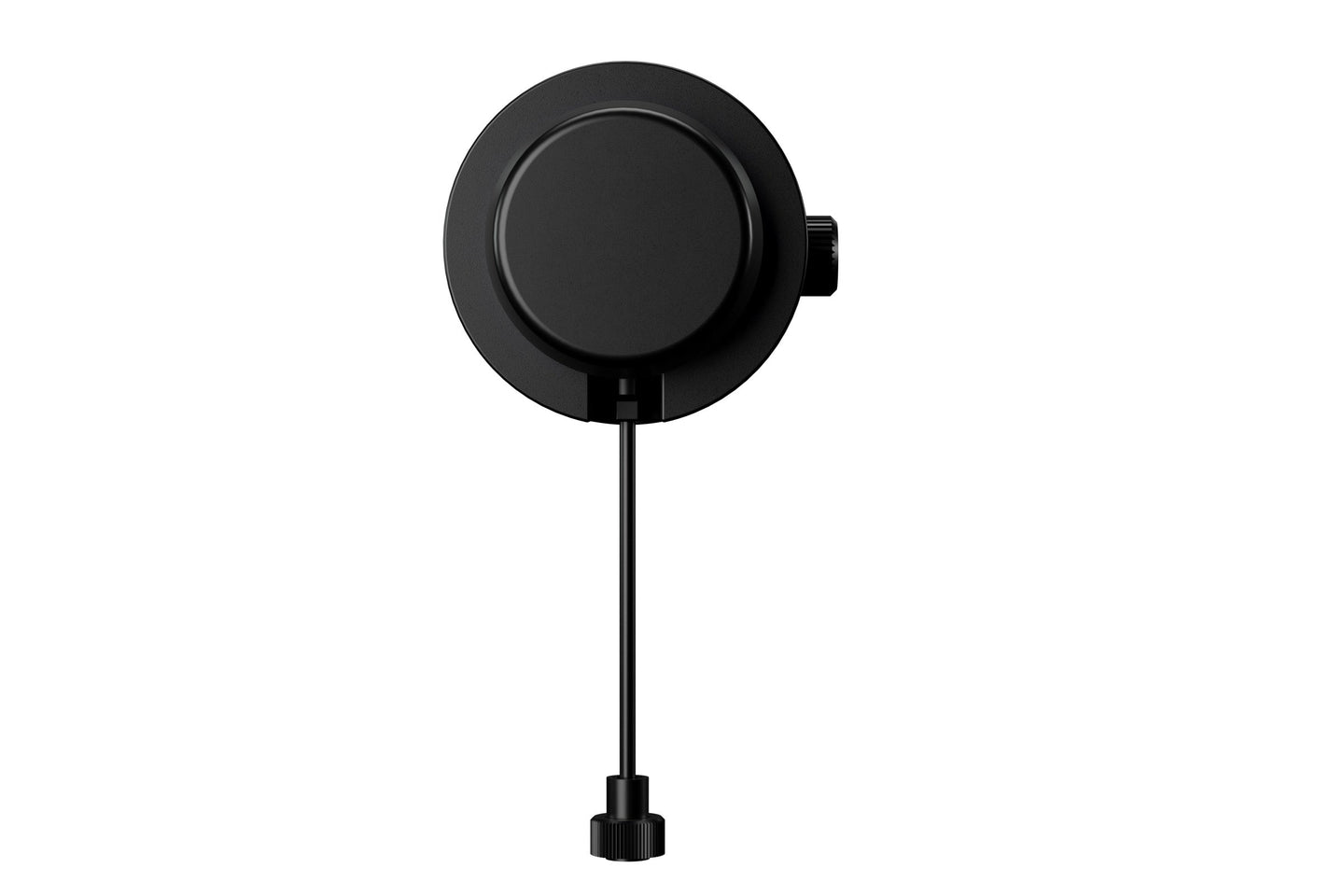

Chasing Ping 360 Sonar for Underwater Drone

by Chasing

Engineered for high-performance underwater navigation, this mechanical scanning sonar provides critical visibility in turbid or low-light environments. It features a 360-degree scanning capability with a 50-meter range and a professional-grade 300-meter depth rating. By integrating with open-source software, it offers a versatile solution for obstacle avoidance, target tracking, and detailed acoustic imaging for ROV operations.

Maximum Range: 50 m (165 ft)Depth Rating: 300 m (984 ft)Scanning Angle: 360°Horizontal Beamwidth: 2°Minimum Range: 0.75 m (2.5 ft)

Capabilities

▶

Full 360-degree mechanical environmental scanning

Obstacle avoidance in zero-visibility water conditions

Target location and real-time tracking

Top-down acoustic mapping of underwater sites

Customizable scanning sectors for focused inspections

Deep-sea operation up to 300 meters depth

Feature detail

Specifications

▶

Sonar Performance ▶

Beamwidth - Horizontal 2°

Minimum Range 0.75 m (2.5 ft)

Maximum Range 50 m (165 ft)

Resolution 0.08% of range

Scanning & Resolution ▶

Scanned Sector Variable up to 360°

Scan Speed at 2 m 9 sec / 360°

Environmental & Compatibility ▶

Pressure Rating 300 m (984 ft)

Compatibility Chasing M2 Pro / M2 Pro MAX

Technical reference

Technical Details

▶

Software Interface Open-source Ping-Viewer

Primary Function Mechanical scanning sonar

Operating Environment Low-visibility/turbid water

Lead Time 14 days

Warranty 1 Year

Imaging Type Acoustic top-down view

Application Scenarios Rescue, Research, Inspection, Security

Mounting Requirement ROV Accessory Port

What's Included / Not Included (1 items)

▶

Included:

• 1x CHASING PING 360 SONAR KIT (Compatible with M2 Pro / M2 Pro MAX)

NOT Included:

• Chasing M2 Pro Underwater Drone
• Chasing M2 Pro MAX Underwater Drone
• External mounting brackets (unless specified in kit variant)

Maintenance & Care

▶

Recommended Schedule: After every dive

• Rinse the sonar unit thoroughly with fresh water to prevent salt buildup
• Inspect the mechanical scanning head for any debris or obstructions
• Check connection cables for wear or damage before and after deployment

Frequently Asked Questions

▶

What software is required to operate this sonar?

This sonar kit connects to the open-source Ping-Viewer application. This software provides the interface for control and data display, allowing users to view real-time acoustic images and customize settings for specific application needs.

Can this sonar be used in murky or low-visibility water?

Yes, it is specifically designed for low-visibility conditions. Because it uses acoustic waves rather than light, it can 'see' through sediment and darkness to provide clear imaging for navigation and obstacle avoidance.

What is the maximum depth this sonar can reach?

The Chasing Ping 360 Sonar has a professional pressure rating of 300 meters (984 feet), making it suitable for deep-water inspections and research missions.

Product Identifiers

▶

SKU: UDCHAS091A

Brand: Chasing

Price: $5,999.00

Product Name: Chasing Ping 360 Sonar for Underwater Drone

Category: Accessory
